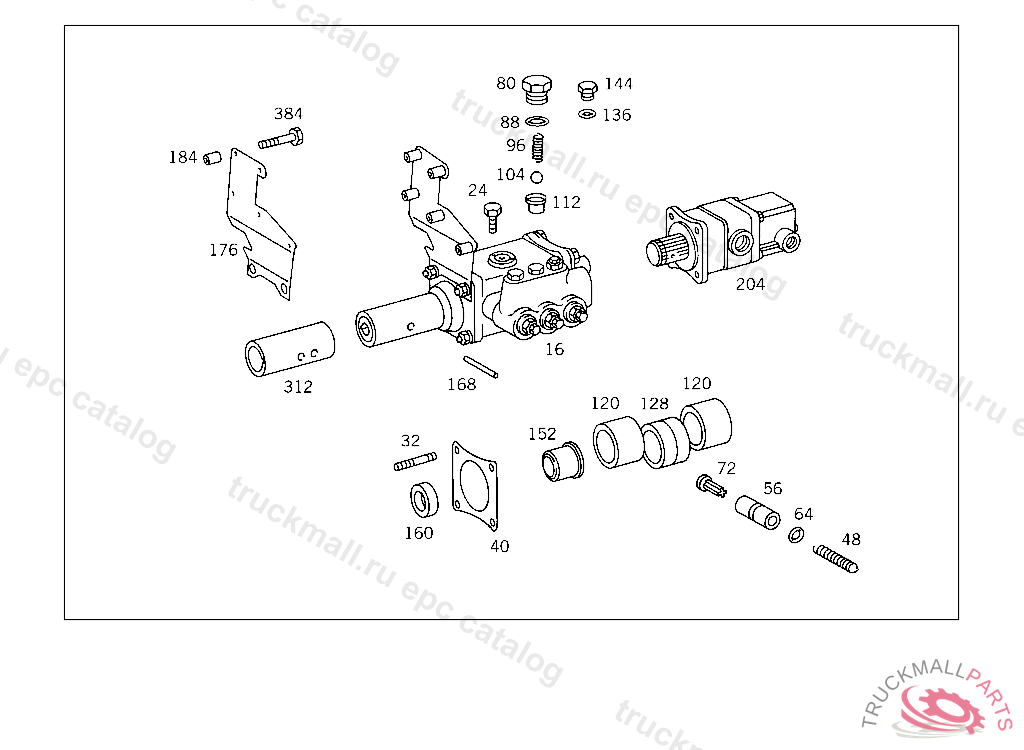

Поз.
Артикул
Описание
16
HYDRAULIC PUMP , 637229
24
SCREW COVER PLATE TO COVER PLATE M 6 X 10
24
SCREW , Replaced By: N304017006034
32
STUD BOLT , 637229
40
GASKET CONNECTION FLANGE
48
SPRING , 637229
56
PISTON , 637229
64
SEAL RING , 637229
72
VALVE , 637229
80
SCREW , 637229
88
SEAL RING , 637229
96
SPRING , 637229
104
BALL , Replaced By: A0019815085
104
BALL (PRESSURE VALVE) 12.7 MM
112
VALVE , 637229
120
BUSHING , 637229
128
BUSHING , 637229
136
SEAL RING , Replaced By: N007603010110
136
SEAL RING PNEUMATIC VALVE
144
SCREW , 637229
152
BUSHING , 637229
160
SEAL RING , 637229
168
CLAMPING SLEEVE , 637229
176
BRACKET CONNECTOR
184
BUSHING
204
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM
204
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM
204
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM,209320
204
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM TYPE 234/2
204
HYDRAULIC PUMP SERVICE WITH DUMPING PLATFORM, 637230 314 UP TO IDENT NO. 4 154033,316 UP TO IDENT NO. 4 153395 316 FROM IDENT NO. 4 153396-4 284802
312
SLIDING COLLAR
384
SCREW DISTRIBUTOR TO REAR AXLE M8 X48
999
SEAL RING LINE CONNECTION
