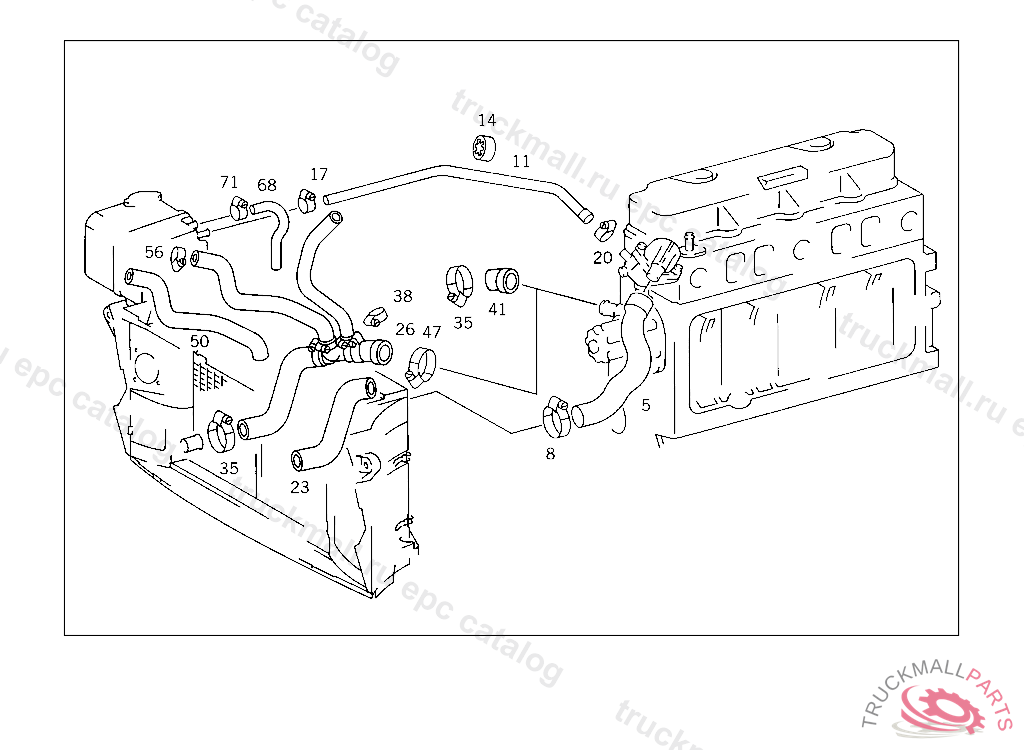

Поз.
Артикул
Описание
5
HOSE FROM THERMOSTAT TO RADIATOR
8
CLAMP , Replaced By: N000000000671
8
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
11
HOSE DE-AERATION, FROM EXPANSION TANK TO THERMOSTAT
11
HOSE , Replaced By: A6685012982
14
BUFFER. RUBBER RING PROTECTION AGAINST SCORING FOR HOSE
17
CLAMP , Replaced By: N000000000665
17
CLAMP , Replaced By: N916017011001
17
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
20
CLAMP HOSE TO FITTING AND TO OIL TANK
20
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
26
HOSE FROM RADIATOR TO WATER PUMP, N 000001 P 100867
26
HOSE , Replaced By: A6675992175
26
INTERMEDIATE PIECE , Replaced By: A6685002175
26
HOSE , Replaced By: A6685002175
26
HOSE FROM WATER PUMP TO RADIATOR
35
CLAMP EXPANSION TANK & COOLING WATER LINE, FROM IDENT-NO. 827712, ALSO INSTALLED IN ENGINE 935766
38
CLAMP25-40X13 MM
38
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
47
CLAMP , Replaced By: N000000000671
47
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
56
CLAMP25-40X13 MM
56
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
68
HOSE DE-AERATION PIPE TO EXPANSION TANK
71
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
71
CLAMP , Replaced By: N000000000665
71
CLAMP , Replaced By: N916017011001
999
HOSE FROM RADIATOR OUTLET TO OIL COOLER, THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE
