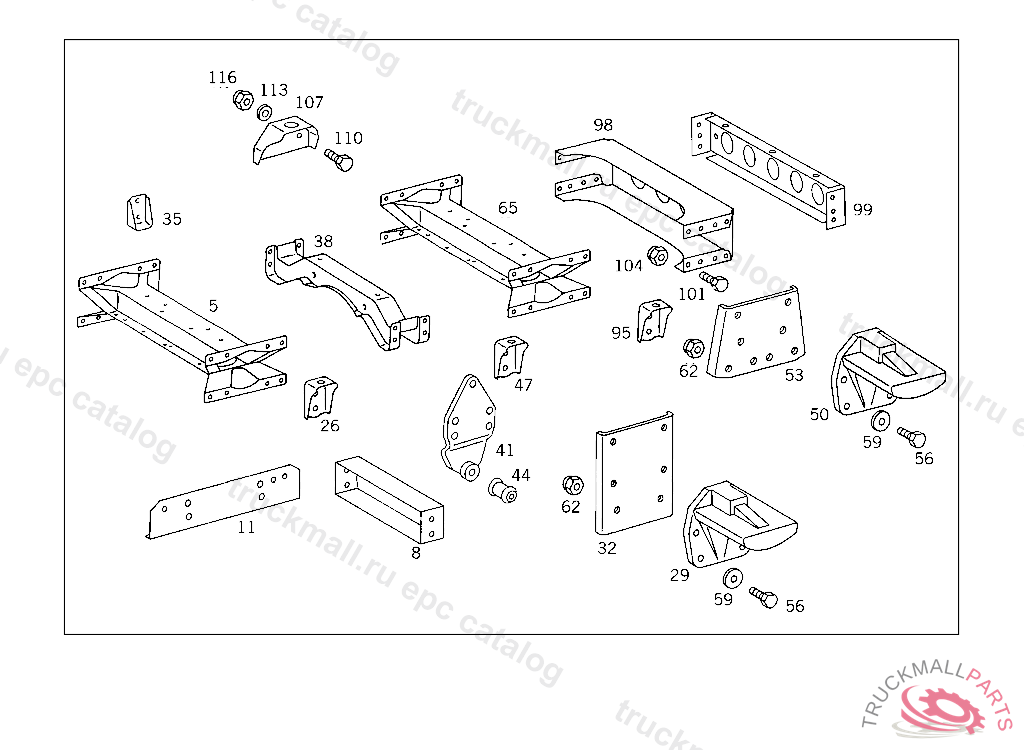

Поз.
Артикул
Описание
5
CROSS MEMBER IN FRAME BEND, TO BE ADAPTED DURING ASSEMBLY
11
REINFORCEMENT LEFT AND RIGHT BOTTOM
26
CONSOLE BODY MOUNTING
35
REINFORCEMENT AT SIDE MEMBER
38
CROSS MEMBERNO.5
41
CONSOLE TORSION BAR,REAR
44
BEARING SHACKLE TO FRAME
47
CONSOLE BODY MOUNTING
65
CROSS MEMBER REAR-SPRING REAR BRACKET NO.6
95
CONSOLE BODY MOUNTING
99
CROSS MEMBER (REAR CROSS MEMBER)
101
SCREW MOUNTING TO CONSOLE M 14X35
101
SCREW , Replaced By: N308676014008
104
NUT STEERING SUPPORT TO FRAME
104
NUT , Replaced By: N910113014000
107
CONSOLE BODY MOUNTING
110
SCREW BRACKET TO SIDE MEMBER
110
SCREW , Replaced By: N304017010002
113
WASHER RADIATOR TO RUBBER MOUNTING
113
WASHER , Replaced By: N000125010532
116
NUT STRAP TO BRACKET
116
NUT , Replaced By: N910113010000
999
WASHER BRACKET TO FRAME
999
SCREW BRACKET TO LEFT SIDE MEMBER
999
NUT SUPPORT TO SIDE MEMBER
