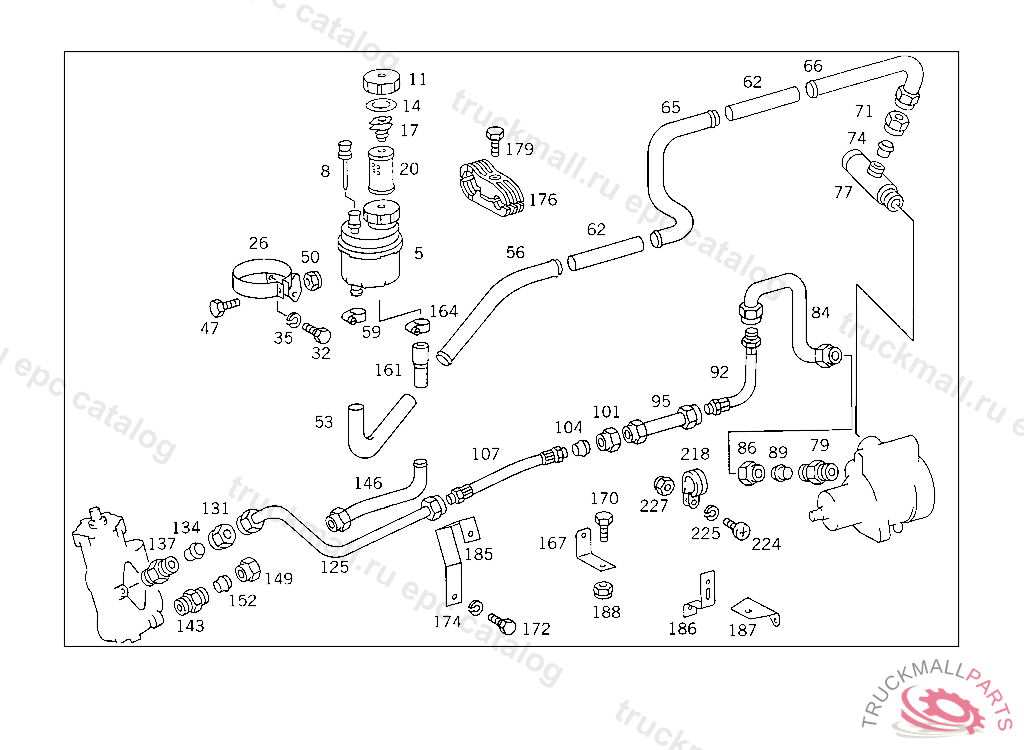

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK
8
OIL DIPSTICK , Replaced By: A0004660867
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
26
BRACKET OIL TANK,K 055088
32
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
32
SCREW CENTRAL LOCK TO CAB M 10X16
32
SCREW CENTRAL LOCK TO CAB M 10X16
35
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
35
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
47
SCREW OIL TANK TO BRACKET
50
NUT , Replaced By: N913004006001
50
NUT PUMP TO BRACKET
53
HOSE ,K 055044
53
HOSE ,K 055044
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138293
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 529814K 055043
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 529813
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138293
59
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
59
CLAMP , Replaced By: N000000000667
62
HOSE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
62
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
62
HOSE , Replaced By: A3859971582
65
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138293
66
LINE ,K 126844
66
LINE ,K 126844
66
LINE ,K 055043K 126843
66
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
66
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 1382945 374583
66
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138293
71
NUT LINE CONNECTION
71
NUT LINE CONNECTION
71
UNION NUT LINE CONNECTION, Replaced By: N000000006243
74
GLAND , Replaced By: A0019901267
77
FITTING SUCTION LINE TO OIL PUMP
79
FITTING DELIVERY LINE TO PUMP
79
FITTING DELIVERY LINE TO PUMP
84
LINE FROM PUMP TO HIGH PRESSURE HOSE,K 081860
84
LINE ,K 055043
84
LINE FROM PUMP TO HIGH PRESSURE HOSE
84
LINE FROM PUMP TO HIGH PRESSURE HOSE,5 374583
84
TUBE FROM HIGH PRESSURE HOSE TO STEERING
84
LINE , Replaced By: A0005516156, +002N003861012007, +002N915017012100
86
UNION NUT LINE CONNECTION
86
UNION NUT LINE CONNECTION, Replaced By: N000000006239
89
SEAL CONE LINE CONNECTION
89
GLAND , Replaced By: A0019901967
92
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
92
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
92
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
95
LINE FROM HIGH PRESSURE HOSE TO HIGH PRESSURE HOSE,5 138293
101
UNION NUT LINE CONNECTION, Replaced By: N000000006239
101
UNION NUT LINE CONNECTION
104
GLAND , Replaced By: A0019901967
104
SEAL CONE LINE CONNECTION
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138293
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138294
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
125
LINE , Replaced By: A0002610283
125
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
125
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX,5 529813
125
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX,5 529814K 055043
131
NUT. UNION NUT LINE CONNECTION
131
UNION NUT LINE CONNECTION, Replaced By: N000000006239
131
UNION NUT LINE CONNECTION
134
CUTTING RING. GLAND LINE CONNECTION
134
GLAND , Replaced By: A0019901967
134
SEAL CONE LINE CONNECTION
137
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
137
FITTING DELIVERY LINE TO PUMP
143
FITTING RETURN LINE TO STEERING
146
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 138293
146
LINE , Replaced By: A0004291001
146
LINE , Replaced By: A0004291001
146
LINE12 MM, ORDER BY THE METER4 691315
149
UNION NUT LINE CONNECTION, Replaced By: N000000006239
149
UNION NUT LINE CONNECTION
152
GLAND , Replaced By: A0019901967
152
SEAL CONE LINE CONNECTION
161
HOSE (RETURN LINE),FROM STEERING TO OIL TANK,K 055043
161
HOSE ,K 055044
161
HOSE ,K 055044
164
CLAMP HOSE TO FITTING AND TO OIL TANK
164
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
164
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
167
BRACKET , Replaced By: A6454310740
167
BRACKET FUEL LINE TO BELL HOUSING
167
BRACKET DELIVERY AND SUCTION LINES,5 1382945 374583
167
BRACKET DELIVERY AND SUCTION LINES,5 374584
170
SCREW COVER PLATE TO BRACKET
172
SCREW , Replaced By: N304017010028
172
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
174
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
176
BRACKET DELIVERY AND SUCTION LINES
179
SCREW DISTRIBUTOR TO CAB
185
BRACKET DELIVERY AND SUCTION LINES TO ENGINE
186
BRACKET , Replaced By: A3164290040
186
BRACKET OIL LINE MOUNTING
186
BRACKET DELIVERY AND RETURN LINES,5 529813
187
BRACKET DELIVERY AND RETURN LINES,5 529814K 055043
188
NUT , Replaced By: N913004006001
188
NUT PUMP TO BRACKET
218
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
218
CLAMP DELIVERY AND SUCTION LINES TO FRAME
218
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
218
CLAMP , Replaced By: N916016010211
218
CLAMP , Replaced By: N000000001045
218
CLAMP CABLE HARNESS MOUNTING
224
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
225
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
227
NUT , Replaced By: N913004006001
227
NUT PUMP TO BRACKET
999
THRUST RING SUCTION LINE TO OIL PUMP
999
SEALING CORD SUCTION LINE TO OIL PUMP
999
ELBOW FITTING DELIVERY LINE TO PUMP
999
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
999
PROTECTIVE CAP
999
BRACKET LINE MOUNTING,5 220227
999
HOSE FROM OIL TANK TO SUCTION LINE
999
ELBOW FITTING SUCTION LINE TO OIL PUMP
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,K 136986
999
BRACKET OIL TANK,K 055089
999
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX,K 055044
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,K 055044K 081859
999
LINE FROM PUMP TO HIGH PRESSURE HOSE,K 055044K 081859
999
LINE FROM PUMP TO HIGH PRESSURE HOSE
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,K 055044K 136985
999
LINE RETURN LINE TO STEERING,K 055018
999
BRACKET DELIVERY AND RETURN LINES,K 055018
999
FITTING (DELIVERY LINE),FROM PUMP TO STEERING
999
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING SOLENOID VALVE A 18X24
999
NUT SUCTION LINE TO OIL PUMP
