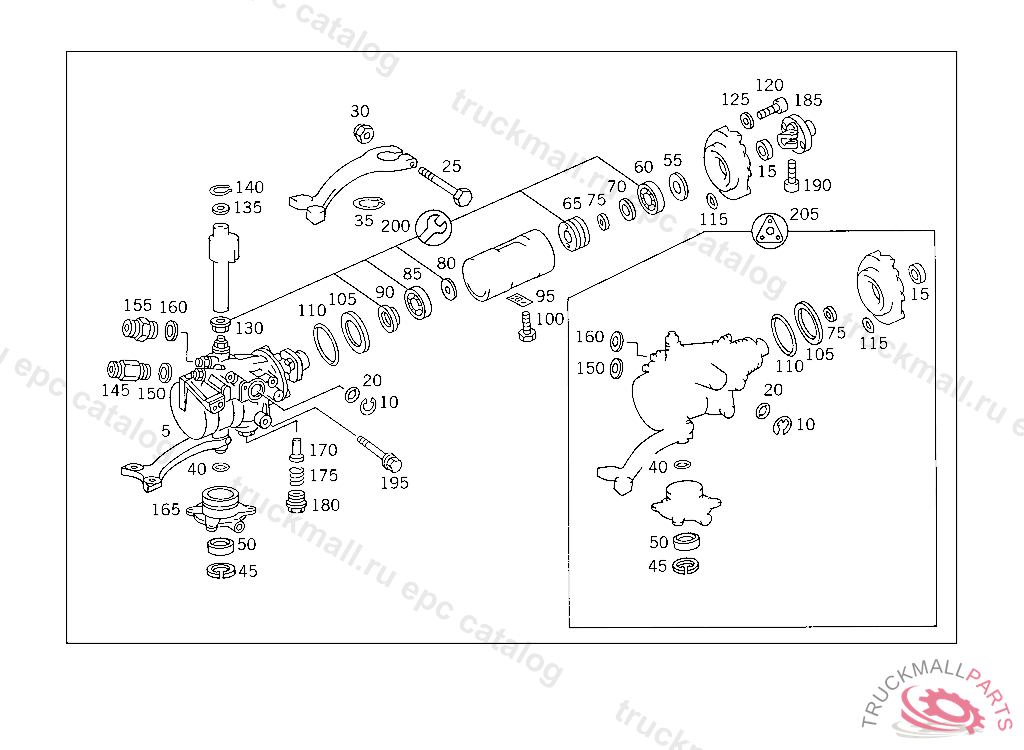

Поз.
Артикул
Описание
5
STEERING BOX ASSEMBLY WITH PITMAN ARM, FITTING TO BE REMOVED FROM HIGH PRESSURE CONNECTION TO BE ADAPTED DURING ASSEMBLY PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
STEERING BOX ASSEMBLY WITH PITMAN ARM, FITTING TO BE REMOVED FROM HIGH PRESSURE CONNECTION TO BE ADAPTED DURING ASSEMBLY PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
LOCK CONTROL VALVE
15
SEAL RING
20
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
25
SCREW , F 980774 EXEPT ON VEHICULES WITH CODE 800 ALSO INSTALLED IN VEHICLE TO F 980773 WITH CODE 801
30
NUT STRAP TO BRACKET
35
LOCK PITMAN ARM TO STEERING BOX ASSEMBLY
40
SEAL RING STEERING WORM SECTOR SHAFT
45
LOCK TOP TO 387 460 14 09
50
SEAL RING , Replaced By: A0199975047
50
SEAL RING
55
THRUST WASHER
60
ROLLER BEARING
65
THREADED INSERT
70
WASHER
75
SEAL RING , 023 10/50,12/52 056284 023 20/60,22/62 057848 033 10/50,12/52 027436 033 20/60,22/62 028023 123 10/50,12/52 029863 123 20/60,12/52 041002 130 10/50,12/52 051238 130 20/60,22/62 052678
80
WASHER
85
ROLLER BEARING
90
ANGULAR CONTACT BEARING
95
LOCK , 023 10/50,12/52 056283 023 20/60,22/62 057847 033 10/50,12/52 027435 033 20/60,22/62 028022 123 10/50,12/52 029862 123 20/60,12/52 041001 130 10/50,12/52 051237 130 20/60,22/62 052677
100
SCREW FEED LINE AND RETURN LINE
105
SEAL RING
110
SEAL RING
115
SEAL RING VALVE
120
SCREW. CAP BOLT COVER TO CASE M8X25
125
WASHER BRACKET TO CROSS MEMBER
130
NUT
135
THRUST WASHER AS REQUIRED 1.15 MM
135
THRUST WASHER AS REQUIRED 1.10 MM
135
THRUST WASHER AS REQUIRED 1.00 MM
135
THRUST WASHER AS REQUIRED 1.05 MM
135
THRUST WASHER AS REQUIRED 0.95 MM
140
LOCK RINGTO 000 553 37 01,000 553 39 01,
145
FITTING ENGINE BREATHING
150
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
155
FITTING LOW PRESSURE
160
SEAL RINGTO 000 553 03 05,000 553 18 05,
165
STEERING BOX COVER
170
PIN
175
SPRING , 1F 058035 2F 052098
180
SCREW PLUG
185
STEERING COUPLING
190
SCREW
195
SCREW
200
REPAIR KIT
205
GASKET KIT
