Mercedes A1242920074 - Болт

SL 320 129.064 280-600 FROM 06/98

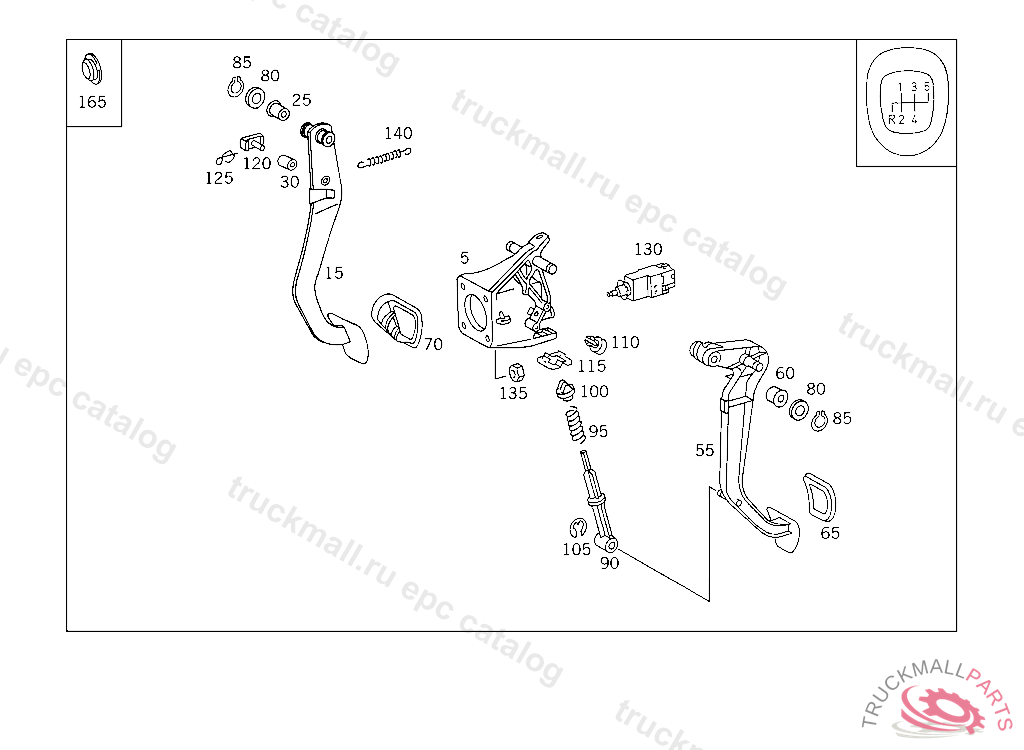

29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING IL. 1

Поз.
Артикул
Описание
25
A1242920050
BUSHING BRAKE PEDAL
30
A1262920050
BUSHING
80
A1152910076
WASHER PEDALS TO PIVOT PINS
85
A0079942041
LOCK STOP TO BEARING BRACKET
120
A1242920074
PIN BRAKE PEDAL TO BRAKE BOOSTER, B 843549
125
N912011008000
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
130
A0015450109
BRAKE LIGHT SWITCH STOP LIGHT, F 894083 EXCEPT CODE 800 ALSO INSTALLED IN VEHICLE FROM F 894084 WITH CODE 809
135
N913017008000
NUT COVERING TO RAIL
135
N913023008003
NUT HORN TO BRACKET M8
140
A1249931310
SPRING BRAKE PEDAL, 201.022,023,024,12610/20A 216887 201.12210/20A 218857 201.023,024, 12/22A 216472 201.122,12612/22A 216472 10/20 F 135528 12/22 F 133742
