Главная
›
Mercedes
›
TRUCK
›
1517
›
676.027
›
47 FUEL SYSTEM
›

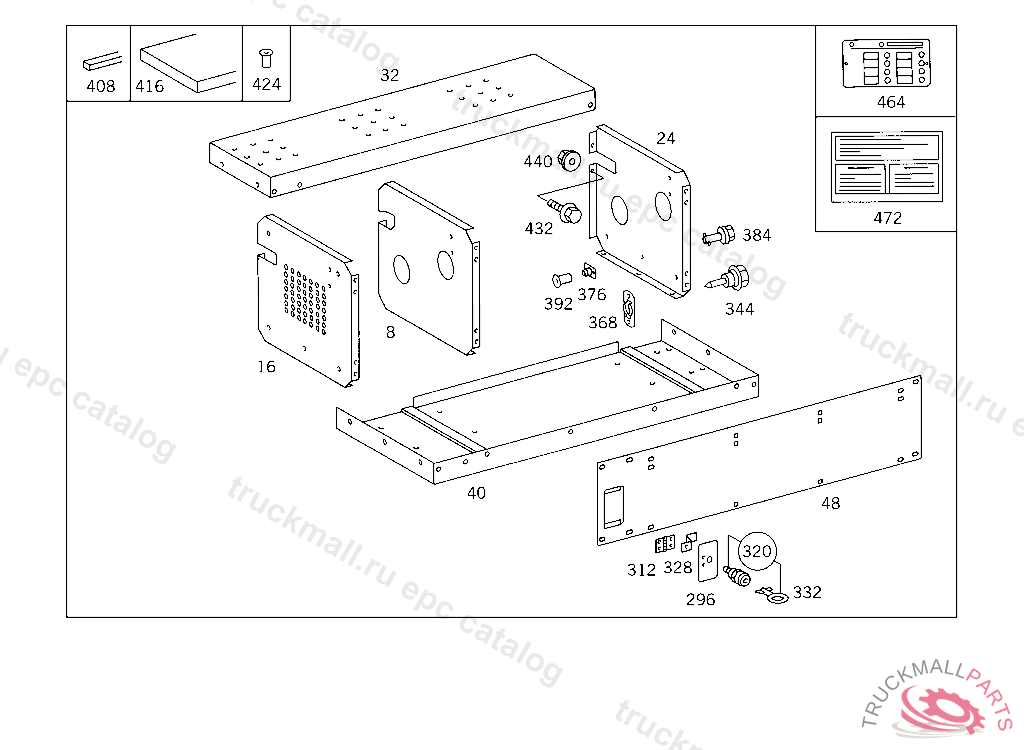

001 COVER FOR GAS CONTAINER IL.1
Mercedes A0009881542 - Замок
1517 676.027
47 FUEL SYSTEM - 001 COVER FOR GAS CONTAINER IL.1
Поз.
Артикул
Описание
8
A0814701842
SUPPORT FRONT RIGHT
8
A0814701742
SUPPORT FRONT LEFT
16
A0814701542
SUPPORT FRONT RIGHT
16
A0814701642
SUPPORT FRONT LEFT
24
A0814701342
SUPPORT REAR RIGHT
24
A0814701442
SUPPORT REAR LEFT
32
A6994700447
COVERING RIGHT TOP
32
A6994700147
COVERING LEFT TOP
40
A6994700547
COVERING RIGHT BOTTOM
40
A6994700247
COVERING LEFT BOTTOM
48
A6994700347
COVERING RIGHT
48
A6994700047
COVERING LEFT
296
A6994741043
SCREENING PLATE RIGHT FLAP
296
A6994740043
SCREENING PLATE LEFT FLAP
312
A6999880057
HINGE AT FLAP
320
A6999880164
LATCH AT FLAP
328
A6999880364
LATCH AT FLAP
332
A6999880059
KEY
344
A0009841536
LOCKING PIN ANTINOISE CAPSULE TO FRAME
344
A0009841636
LOCKING PIN PROTECTIVE PLATE TO BRACKET
344
A0009842336
LOCKING PIN
368
A0009881542
FASTENER ,K 105999
376
A6999880042
FASTENER COVERING TO CONSOLE
384
A6999840436
GUIDE COVERING TO CONSOLE
392
N007337003105
RIVET
408
A6998950475
SEAL10X5, ORDER BY THE METER
416
A6998950575
SEAL70X10, ORDER BY THE METER
424
N007337004000
BLIND RIVET4X16
432
A0029902704
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
440
A0009906750
NUT STRAP TO SUPPORT
464
A3575848846
GUIDE SIGN INSTALLATION CHECKUP
472
A6995840440
DECALCOMANIA TANK FLAP
472
A6995840240
DECALCOMANIA REFUELLING PLATE
