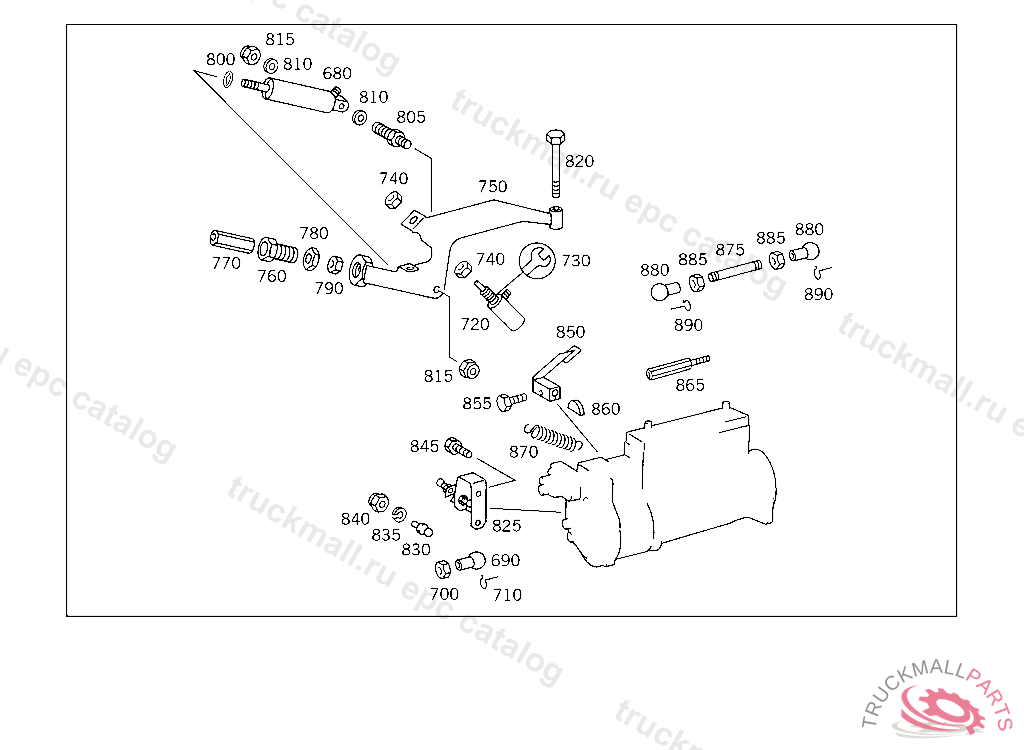

Поз.
Артикул
Описание
680
CYLINDER INTERMEDIATE SPEED STOP
690
BALL SOCKET
700
NUT
710
SECURING CLIP. CIRCLIP
720
CYLINDER TORQUE REDUCER BOSCH
720
CYLINDER , Replaced By: A0000702183
720
CYLINDER , Replaced By: A0000702183
730
REPAIR KITTO 000 070 17 83
740
NUT CYLINDER TO BRACKET
750
BRACKET TORQUE REDUCER
760
SLEEVE INTERMEDIATE SPEED STOP
770
PIN INTERMEDIATE SPEED STOP
780
NUT INTERMEDIATE SPEED STOP
790
NUT INTERMEDIATE SPEED STOP
800
SEAL RING INTERMEDIATE SPEED STOP
805
PIN INTERMEDIATE SPEED STOP
810
WASHER INTERMEDIATE SPEED STOP
815
NUT STRAP TO BRACKET
815
NUT , Replaced By: N910113010000
820
SCREW BRACKET ON INJECTION PUMP BRACKET
820
SCREW BRACKET ON INJECTION PUMP BRACKET
825
LEVER (CONTROL LEVER),INJECTION PUMP
830
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
830
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
835
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
840
NUT , Replaced By: N913004006001
840
NUT PUMP TO BRACKET
845
SCREW PUMP TO BRACKET
850
LEVER TORQUE REDUCER
855
SCREW LEVER TO SHAFT
855
SCREW , Replaced By: N304017005002
860
WOODRUFF KEY LEVER TO SHAFT
865
ROD AT CONTROL LEVER
870
SPRING AT CONTROL LEVER
875
PULL ROD AT CONTROL LEVER, TO BE ADAPTED DURING ASSEMBLY
880
BALL SOCKET AT CONTROL LEVER
885
NUT , Replaced By: N304032008006
885
NUT
890
SECURING CLIP. CIRCLIP
