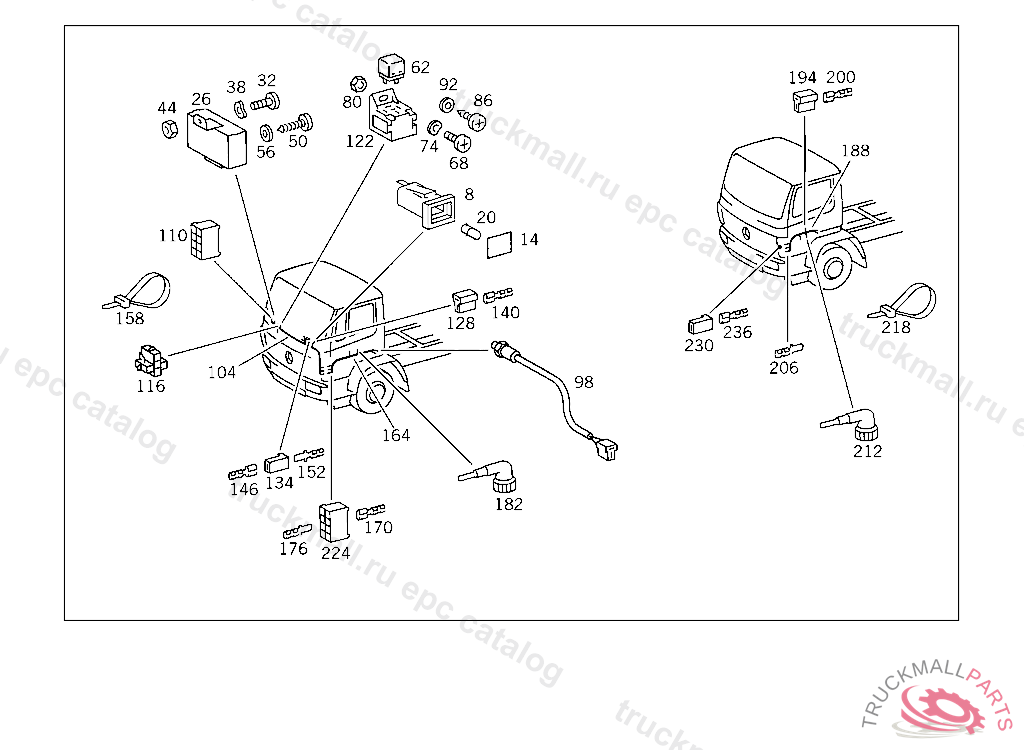

Поз.
Артикул
Описание
8
TELL-TALE LAMP LESS LENS
14
LENS RED,5 425760
20
BULB TELL-TALE LAMP
20
BULB TELL-TALE LAMP 24 V/1,2 W
26
CONTROL UNIT FLAME STARTING SYSTEM CONTROL UNIT
32
SCREW , Replaced By: N000000001145
32
SCREW BRACKET TO COVERING
38
SPRING WASHER LICENSE PLATE TO BRACKET
44
NUT SPRING-LOADED PUSH ROD
50
SHEET METAL SCREW COVER PLATE TO COVER PLATE
56
WASHER SWITCH TO FIRE WALL
62
RELAY AT APPARATUS PLATE 50 A
68
SCREW CONTROL UNIT TO CAB
74
SPRING WASHER ALTERNATOR CONNECTION D+
80
NUT TACHOGRAPH TO BRACKET
86
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
86
SHEET METAL SCREW BRACKET TO FLOOR PLATE
92
WASHER BOOT TO CAB FLOOR
92
WASHER , Replaced By: N000433005304
98
SWITCH,AUTOMATIC (TEMPERATURE SWITCH)
104
ELECTRIC CABLE FROM PLUG CONNECTION AT CAB TO INSTRUMENT PANEL
104
ELECTRIC CABLE FROM PLUG CONNECTION AT CAB TO INSTRUMENT PANEL
104
ELECTRIC CABLE FROM PLUG CONNECTION AT CAB TO INSTRUMENT PANEL
104
ELECTRIC CABLE FROM PLUG CONNECTION AT CAB TO INSTRUMENT PANEL
110
PIN BUSHING HOUSING 8-POLE
116
PIN BUSHING HOUSING 5-POLE
122
PIN BUSHING HOUSING TIME-LAG RELAY, Replaced By: A0008250518
122
BASE TIME-LAG RELAY
128
PIN BUSHING HOUSING BIPOLAR
134
PIN BUSHING HOUSING UNIPOLAR
140
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
146
PIN BUSHING , Replaced By: A0075458226
152
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
158
LOOM TIE LINE MOUNTING 280 MM
164
ELECTRIC CABLE FROM CAB PLUG CONNECTION TO TEMPERATURE SWITCH
164
CABLE HARNESS FROM CAB PLUG CONNECTION TO TEMPERATURE SWITCH
170
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
170
PIN BUSHING , Replaced By: A0075458226
176
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
182
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 27X1
188
ELECTRIC CABLE PLUG CONNECTION,TEMPERATURE SWITCH, SOLENOID VALVE,HEATER PLUG
194
PIN BUSHING HOUSING BIPOLAR
200
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
206
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
212
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 27X1
218
LOOM TIE LINE MOUNTING 280 MM
224
PLUG HOUSING 8-POLE
224
PIN BUSHING HOUSING 8-POLE
230
PIN BUSHING HOUSING UNIPOLAR
236
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
999
PLUG TO PLUG THE FREE BORES IN INSTRUMENT PANEL
999
LENS TO PLUG THE FREE HOLES FOR TELL-TALE LAMP
