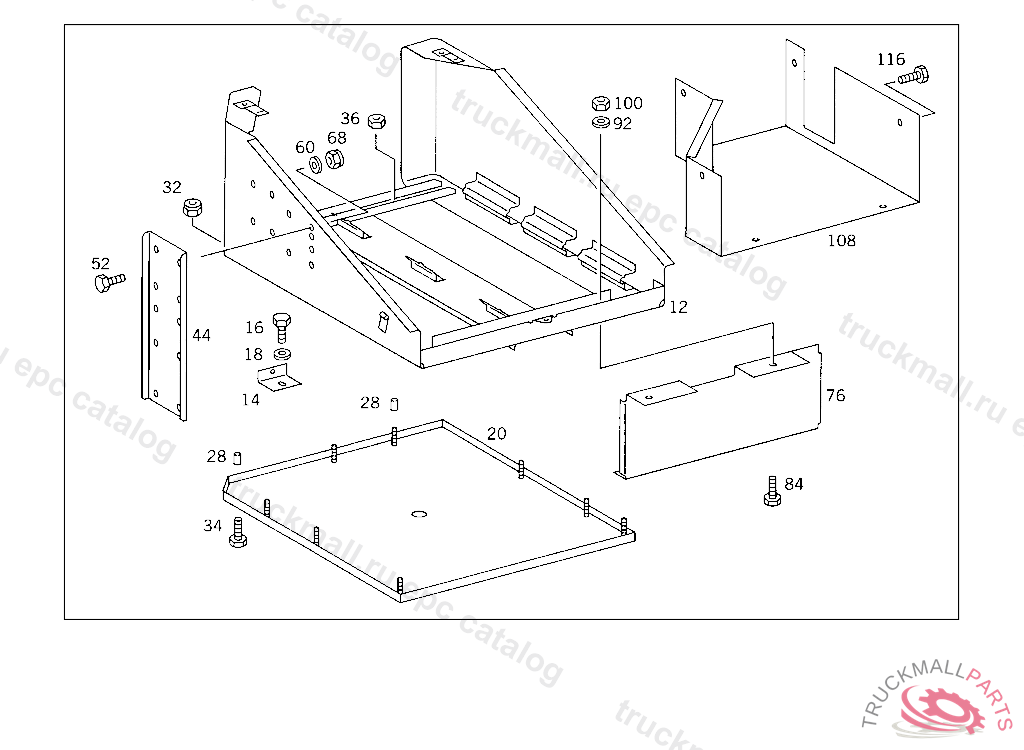

Поз.
Артикул
Описание
12
BATTERY SUPPORT ,5 2347805 419106
12
BATTERY SUPPORT , Replaced By: A6765400716
12
BATTERY SUPPORT , FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
12
BATTERY SUPPORT ,5 234779, Replaced By: A6765400316, +002A6735410441, +002N000125008418, +002N000933008212
12
BATTERY SUPPORT , Replaced By: A6765400616
12
BATTERY SUPPORT , Replaced By: A6765400416
12
BATTERY SUPPORT ,5 419107
12
BATTERY SUPPORT ,5 234779, Replaced By: A6735400816, +002A6735410441, +002N000125008418, +002N000933008212
14
STOP BATTERY MOUNTING, FROM IDENT NO. 5 419107-5 757662 ALS INSTALLED ON 5 800000-5 806588
16
SCREW , Replaced By: N304017008016
16
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
18
WASHER , Replaced By: N000125008443
18
WASHER EXHAUST MUFFLER TO STRAP
20
TRAY ,5 213176, Replaced By: A6735400121, +001A6735400122, +004A0009842436
20
TRAY BATTERY SUPPORT,5 2131775 419106
20
BATTERY CASE BATTERY SUPPORT, FROM IDENT NO. 5 761175 EXCEPT FOR 5 800000-5 806841
20
TRAY BATTERY SUPPORT,5 2131775 419106
20
TRAY BATTERY SUPPORT, UP TO IDENT NO. 5 761174 ALSO INSTALLED ON 5 800000-5 806841
20
TRAY ,5 213176, Replaced By: A6765400221, +001A6735400122, +004A0009842436
20
BATTERY CASE BATTERY SUPPORT, FROM IDENT NO. 5 761175 EXCEPT FOR 5 800000-5 806841
20
TRAY BATTERY SUPPORT
20
TRAY BATTERY SUPPORT
28
SPACER TUBE COVERING TO SEMIMONOCOQUE WING, TO BE ADAPTED DURING ASSEMBLY
28
SPACER TUBE REFRIGERANT LINE TO CAB
32
NUT AT FILTER BRACKET
34
SCREW CAB FLOOR COVERING M 6X25
34
SCREW , Replaced By: N000933006127
36
NUT , Replaced By: N913004006001
36
NUT PUMP TO BRACKET
44
RAIL BATTERY/APPARATUS SUPPORT AND BATTERY MASTER SWITCH
52
SCREW PIPE CLAMP
52
SCREW , Replaced By: N910142008001
52
SCREW , Replaced By: N304017008021
52
SCREW BRACKET TO BRACKET
60
WASHER , Replaced By: N000125008443
60
WASHER EXHAUST MUFFLER TO STRAP
68
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
68
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
68
NUT , Replaced By: N913004008001
76
SUPPORT BATTERY
76
SUPPORT BATTERY
76
SUPPORT BATTERY
76
SUPPORT , Replaced By: A6735400651
76
SUPPORT ,5 234779, Replaced By: A6765400151
76
SUPPORT , Replaced By: A6765400251
84
SUPPORT , Replaced By: A6735400651
84
SUPPORT , Replaced By: A6765400251
84
SCREW , Replaced By: N308676012012
84
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
84
SCREW BRACKET TO SIDE MEMBER
84
SCREW , Replaced By: N910105010009
84
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
92
WASHER
92
WASHER , Replaced By: N000125010532
92
WASHER RADIATOR TO RUBBER MOUNTING
100
NUT STRAP TO BRACKET
100
NUT , Replaced By: N913023010002
100
NUT SUPPORT TO SIDE MEMBER
100
NUT , Replaced By: N910113010000
100
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
108
PROTECTIVE PLATE ,5 213176, Replaced By: A6735400122, +001A6765400221, +004A0009842436
108
PROTECTIVE PLATE BATTERY/APPARATUS SUPPORT,5 213177
116
HEXAGON HEAD BOLT
116
HEXAGON HEAD BOLT
116
SCREW , Replaced By: N910105006002
999
BRACKET ,K 173439
999
BRACKET LEFT
999
BRACKET RIGHT
999
ANGLE LEFT
999
ANGLE RIGHT
999
SCREW AIR INTAKE PIPE TO BRACKET
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
