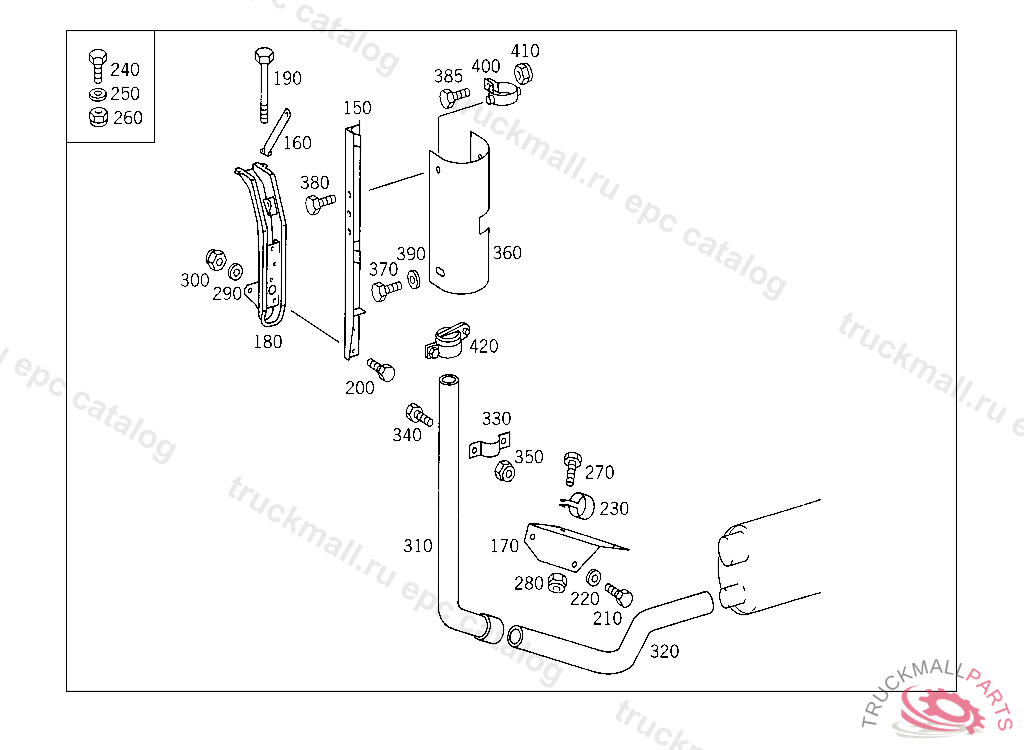

Поз.
Артикул
Описание
150
BRACKET
150
BRACKET
160
BRACKET
170
BRACKET EXHAUST PIPE TO SIDE MEMBER
180
SUPPORT LEFT
190
SCREW CONSOLE TO SIDE MEMBER
200
SCREW SUPPORT TO CROSS MEMBER M 10X28
200
SCREW BRACKET TO FRAME SIDE MEMBER
210
SCREW BRACKET TO CONSOLE
220
WASHER RADIATOR TO RUBBER MOUNTING
220
WASHER , Replaced By: N000125010532
230
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
240
SCREW , Replaced By: N308676012026
240
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
250
WASHER BRACKET TO FRAME
260
NUT SUPPORT TO SIDE MEMBER
270
SCREW REAR EXHAUST PIPE TO MUFFLER
280
NUT STRAP TO BRACKET
280
NUT , Replaced By: N910113010000
290
WASHER , Replaced By: N007349010007
290
WASHER BRACKET TO FRAME
290
WASHER STRUT TO CROSS MEMBER
300
NUT , Replaced By: N910113010000
300
NUT STRAP TO BRACKET
300
NUT SUPPORT TO SIDE MEMBER
310
REAR EXHAUST PIPE
310
REAR EXHAUST PIPE
320
REAR EXHAUST PIPE
330
CLAMP
340
SCREW SUPPORT TO CROSS MEMBER M 10X28
350
NUT STRAP TO BRACKET
350
NUT , Replaced By: N910113010000
360
PROTECTIVE PLATE
370
SCREW CLAMP TO BRACKET AND TO PIPE
380
SCREW , Replaced By: N304017008039
380
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
385
SCREW BRACKET TO SIDE MEMBER
385
SCREW , Replaced By: N304017010002
390
WASHER , Replaced By: N009021008213
390
WASHER BRACKET TO LEFT SIDE MEMBER
400
CLAMP HEAT PROTECTION PLATE ON EXHAUST PIPE
410
NUT STRAP TO BRACKET
410
NUT , Replaced By: N910113010000
420
FLAP END PIECE TO EXHAUST PIPE,4 697327
999
NUT , Replaced By: N910113010000
999
WASHER , Replaced By: N007349010007
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N304017010002
999
BRACKET ON ENGINE SUPPORT
999
BRACKET BRACKET TO FILTER BRACKET
999
BRACKET ON AIR CLEANER BRACKET
999
FRONT EXHAUST PIPE FRONT "NO 2"
999
FRONT EXHAUST PIPE FRONT,SECOND PART, RECOMMENDED FOR TAKING ON STOCK
999
FRONT EXHAUST PIPE FRONT,SECOND PART, RECOMMENDED FOR TAKING ON STOCK
999
BRACKET EXHAUST MUFFLER TO BRACKET
999
BRACKET ON AIR CLEANER BRACKET
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
REAR EXHAUST PIPE
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 743553
999
BRACKET EXHAUST MUFFLER
999
BRACKET EXHAUST PIPE REAR ON BATTERY CASE
999
STRAP EXHAUST MUFFLER TO SIDE MEMBER
999
BRACKET , Replaced By: A6744914541
999
BRACKET RIGHT
999
BRACKET RIGHT
999
BRACKET LEFT,5 561987
999
BRACKET LEFT
999
EXHAUST MUFFLER , NOT USED
999
FRONT EXHAUST PIPE FRONT, FIRST PART
999
REAR EXHAUST PIPE (TAIL PIPE), RECOMMENDED FOR TAKING ON STOCK
999
REAR EXHAUST PIPE BEHIND CAB,UPWARD
999
EXHAUST PIPE , Replaced By: A6734926101
999
SUPPORT EXHAUST MUFFLER TO BRACKET
999
BRACKET EXHAUST PIPE TO SUPPORT
999
CONSOLE CAB SUSPENSION,REAR LEFT, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
BRACKET FUEL LINES TO TRANSMISSION
999
RUBBER BUFFER EXHAUST PIPE REAR ON BATTERY CASE
999
BRACKET AIR INTAKE PIPE,5 551665 TO BE ADAPTED DURING ASSEMBLY
