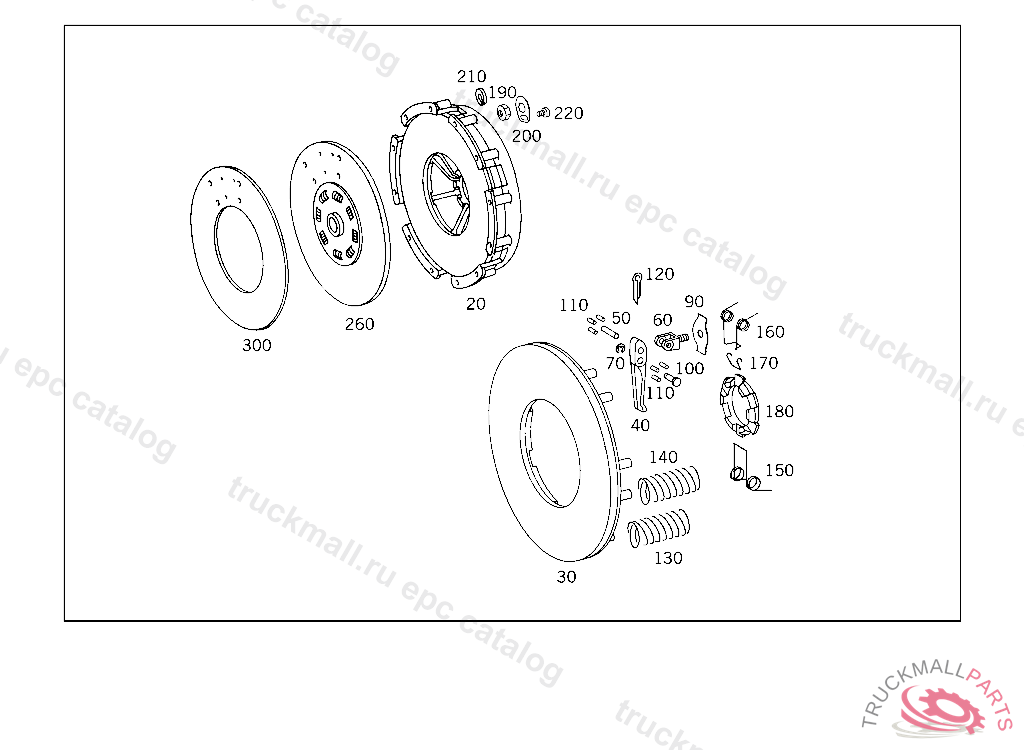

Поз.
Артикул
Описание
20
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
30
PRESSURE PLATE
40
RELEASE LEVER CLUTCH ACTUATION
50
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
60
BRACKET RELEASE LEVER
70
LOCK PLATE RELEASE LEVER TO SHAFT
90
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
100
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
110
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
120
COTTER PIN
130
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
140
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
150
SPRING SUSPENDED BELOW LEAF SPRING
150
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
160
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
160
SPRING SUSPENDED BELOW LEAF SPRING
170
CLAMP RELEASE FLANGE TO RELEASE LEVER
180
FLANGE
190
NUT FOR BRACKETS
200
LOCK FOR BRACKETS
210
LOCK WASHER BRACKET TO STEERING COLUMN END
220
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
260
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
260
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
260
CLUTCH DISC ASBESTOS-FREE LINING
300
CLUTCH LINING ASBESTOS-FREE
999
HOUSING , Replaced By: A6762510002
999
SHAFT (CLUTCH RELEASE SHAFT)
999
BOOT RELEASE YOKE
999
BELL HOUSING , Replaced By: A6152511301, +001N000961018005, +001N007603018104
999
BRACKET INSIDE
999
RELEASE LEVER (RELEASE YOKE)
999
SPRING LOCK RELEASE YOKE TO RELEASE BEARING
999
BRACKET OUTSIDE
999
SEAL RING RELEASE YOKE
999
BEARING RELEASE YOKE
999
SEAL RING RELEASE YOKE
999
PROTECTIVE PLATE , Replaced By: A3522510106
999
BALL PIVOT RELEASE YOKE
999
CLUTCH DISC , Replaced By: A0132509503
999
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
SLAVE CYLINDER , Replaced By: A0022952007
999
STUD STARTING MOTOR MOUNTING
999
CLUTCH LINING330 MM,4 275351
999
CLUTCH LINING , Replaced By: A0012524310
999
LEAF SPRING
999
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002524719, +002A0002523975
999
RIVET LEAF SPRING TO CLUTCH DISC
999
SPINDLE THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING,K 062600
