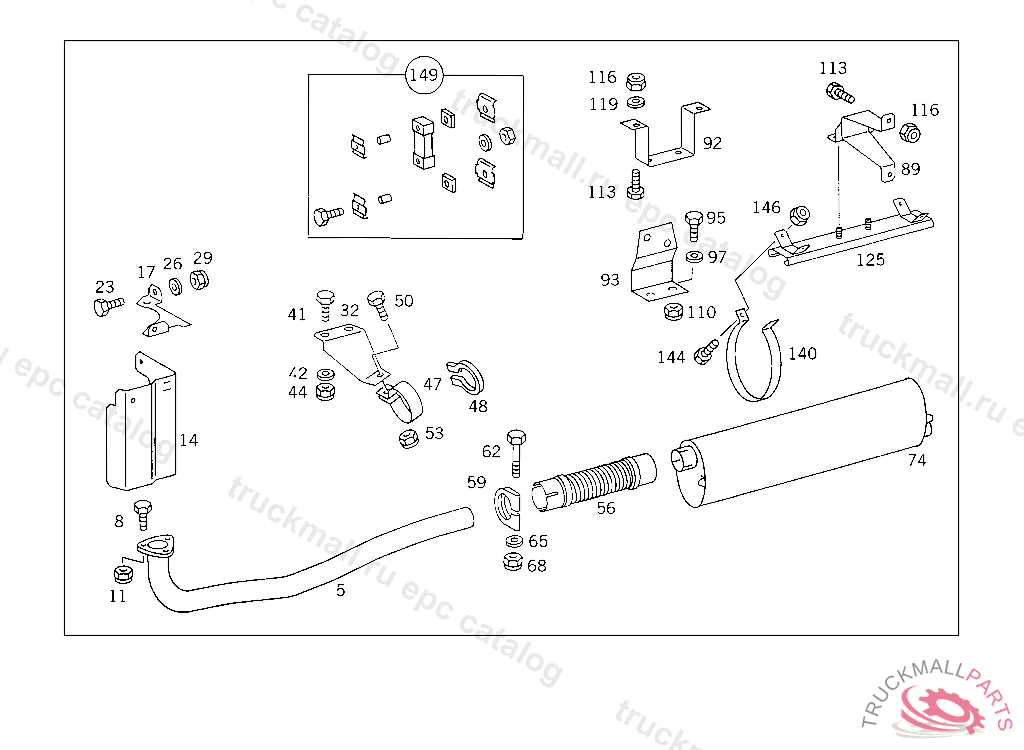

Поз.
Артикул
Описание
5
EXHAUST PIPE FRONT,K 049384
5
EXHAUST PIPE FRONT,5 337343K 049383
5
EXHAUST PIPE FRONT
8
SCREW LEFT AND RIGHT CONSOLES TO CAB
8
SCREW , Replaced By: N308676012015
11
NUT THROTTLE HOUSING AND BRACKET TO FRONT EXHAUST PIPE
11
NUT , Replaced By: N910113012006
14
PROTECTIVE PLATE FRONT EXHAUST PIPE,5 502998
14
PROTECTIVE PLATE , Replaced By: A6764900730
17
BRACKET , Replaced By: A6764901140
23
SCREW PIPE CLAMP
23
SCREW , Replaced By: N304017008021
26
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
29
NUT , Replaced By: N913004008001
32
BRACKET FRONT EXHAUST PIPE,5 337342
41
SCREW BRACKET TO FRAME SIDE MEMBER
41
SCREW RADIATOR M 10X45
41
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
42
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
42
WASHER , Replaced By: N006902011102
42
WASHER , Replaced By: N006902011100
44
NUT BRACKET TO SIDE MEMBER
44
NUT , Replaced By: N910113014001
47
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
47
CLAMP , Replaced By: N071555090502
48
CLAMP BRACKET TO EXHAUST PIPE
50
SCREW BRACKET TO SIDE MEMBER
50
SCREW , Replaced By: N304017010002
53
NUT STRAP TO BRACKET
53
NUT , Replaced By: N910113010000
56
FLEXIBLE METAL TUBE FRONT EXHAUST PIPE TO MUFFLER,K 165446
59
CLAMP EXHAUST PIPE TO MUFFLER
59
CLAMP EXHAUST PIPE TO MUFFLER
62
SCREW BRACKET TO EXHAUST PIPE,5 528482
62
SCREW BRACKET TO EXHAUST PIPE,5 528482
62
SCREW BRACKET TO EXHAUST PIPE,5 528482
65
WASHER EXHAUST MUFFLER TO STRAP
65
WASHER EXHAUST MUFFLER TO STRAP
65
WASHER EXHAUST MUFFLER TO STRAP
65
WASHER , Replaced By: N000125008443
68
NUT , Replaced By: N913004008001
68
NUT , Replaced By: N913004008001
74
EXHAUST MUFFLER
92
ANGLE EXHAUST MUFFLER,5 478324
92
ANGLE , NOT USED
92
ANGLE EXHAUST MUFFLER,5 478324
92
BRACKET AT CROSS MEMBER,5 478324
97
WASHER STRUT TO CROSS MEMBER
97
WASHER STRUT TO CROSS MEMBER
110
NUT STRAP TO BRACKET
110
NUT , Replaced By: N910113010000
113
SCREW BRACKET TO SIDE MEMBER
113
SCREW , Replaced By: N304017010002
116
NUT STRAP TO BRACKET
119
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
119
WASHER , Replaced By: N006902011102
119
WASHER , Replaced By: N006902011100
125
SUPPORT EXHAUST MUFFLER TO BRACKET
125
SUPPORT ,5 999999K 000001 - K 006420N 817441 - N 817938, Replaced By: A6734901734, +001A6744904640
125
SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 478323, Replaced By: A6734901434
140
STRAP EXHAUST MUFFLER TO SIDE MEMBER
140
BRACKET , Replaced By: A6744914541
144
SCREW BRACKET TO SIDE MEMBER
144
SCREW , Replaced By: N304017010002
146
NUT STRAP TO BRACKET
146
NUT STRAP TO BRACKET
146
NUT , Replaced By: N910113010000
149
SUSPENSION PROTECTIVE PLATE TO EXHAUST PIPE
999
WASHER HEAT SHIELD TO BRACKET
999
BRACKET HEAT SHIELD
999
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 227991, Replaced By: A6764902640
999
PROTECTIVE PLATE , NOT USED
999
SCREW COVERING TO SUPPORT
999
SCREW PROTECTIVE PLATE TO CLAMP
