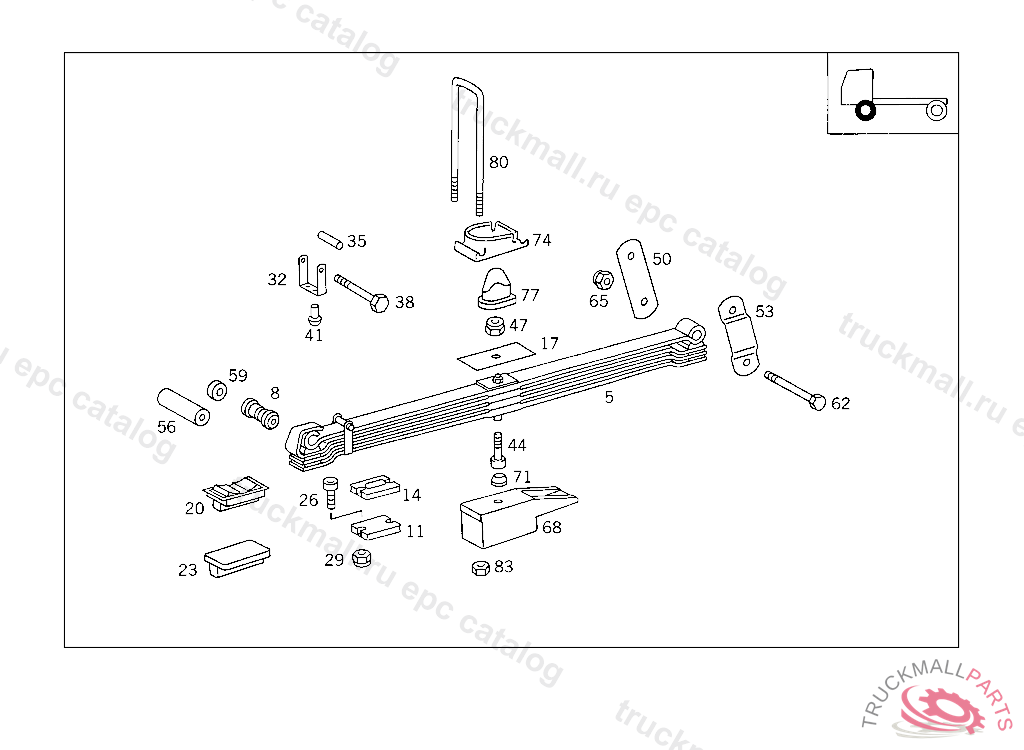

Поз.
Артикул
Описание
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
8
RUBBER MOUNTING
8
BUSHING , Replaced By: A9703200344
11
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
11
SHIM , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A9703250184
14
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
14
SHIM , Replaced By: A9703250184
17
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
17
SHIM , Replaced By: A9703210184
26
SCREW
26
SCREW , Replaced By: N007984006036
29
NUT PUMP TO BRACKET
29
NUT , Replaced By: N913004006001
44
SPRING BOLT
47
HEXAGON NUT. NUT SPRING BOLT
47
NUT , Replaced By: N910113012005
50
SHACKLE FRONT SPRING TO FRONT-SPRING REAR BRACKET
53
SHACKLE FRONT SPRING TO FRONT-SPRING REAR BRACKET,5 358487
59
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,5 508030
62
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET
62
SCREW BEARING BRACKET TO CONSOLE
65
NUT TORSION BAR TO BEARING BRACKET,5 904661
68
SHIM FRONT SPRING TO FRONT AXLE,RIGHT,K 077294
68
SHIM , Replaced By: A6753222484
68
SHIM FRONT SPRINGS TO FRONT AXLE,K 077294
68
SHIM FRONT SPRINGS TO FRONT AXLE,K 077294
68
SHIM , Replaced By: A6753222384
71
CENTERING BOLT (CENTERING CONE),5 361887
71
DOWEL PIN (CENTERING CONE),5 361887, Replaced By: A9303230574
74
PLATE FRONT SPRINGS TO FRONT AXLE
77
HELPER SPRING FRONT SPRING STOP
80
U-BOLT FRONT SPRING TO FRONT AXLE,FRONT RIGHT
80
U-BOLT FRONT SPRINGS TO FRONT AXLE 240 MM
83
NUT FRONT SPRINGS TO FRONT AXLE
