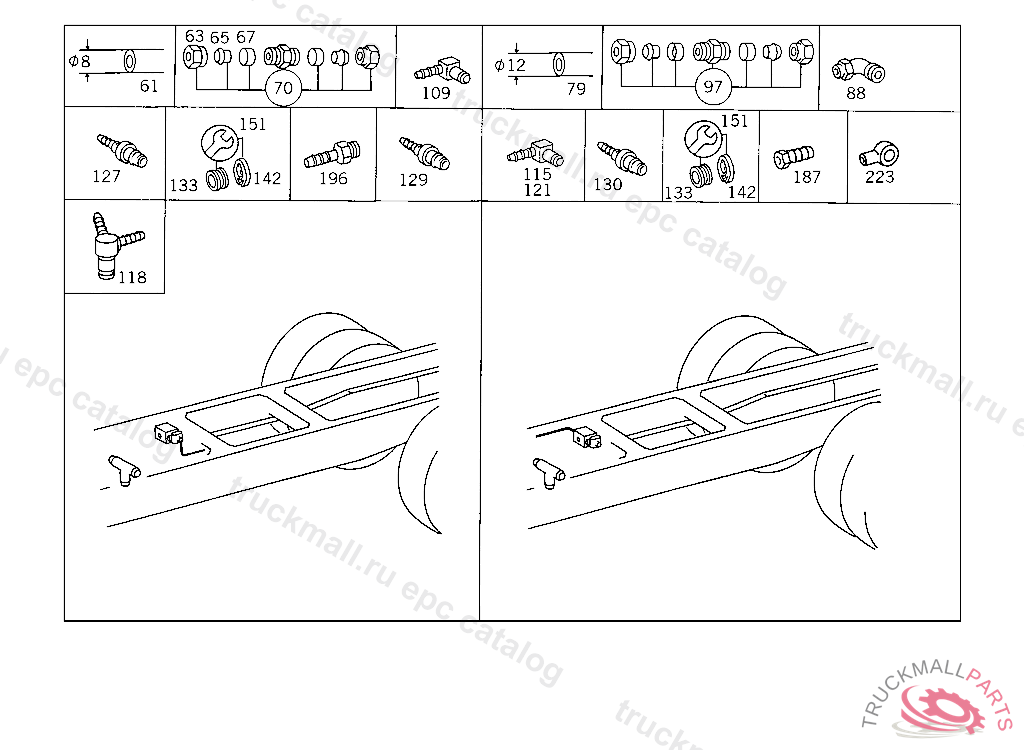

Поз.
Артикул
Описание
61
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
63
UNION NUT LINE CONNECTION
65
GLAND LINE CONNECTION
67
SLEEVE LINE CONNECTION
70
FITTING (PARTS KIT),LINE RUPTURE
79
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
79
HOSE , Replaced By: A0009872827
88
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
88
FITTING FROM PUMP TO CYLINDER
97
FITTING (PARTS KIT),LINE RUPTURE
109
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
109
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
109
ELBOW FITTING , Replaced By: A0049905371
115
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
115
ELBOW FITTING
118
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
121
ELBOW FITTING
127
CONNECTOR HOSE WIDTH, 6 MM,TO M16
127
CONNECTOR , Replaced By: A0029905478
127
CONNECTOR HOSE WIDTH, 6 MM, TO M22
129
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
130
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
133
SEAL RING , Replaced By: A0009940747
133
LOCK RING LINE CONNECTION
133
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
142
LOCK , Replaced By: A0009945448
142
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
142
LOCK LINE CONNECTION
151
REPAIR KIT , Replaced By: A0309971748
151
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
151
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
187
PLUG 3/2-WAY VALVE BREATHING
187
PLUG , Replaced By: A6459970035
196
FITTING BETWEEN THE LINES
223
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
