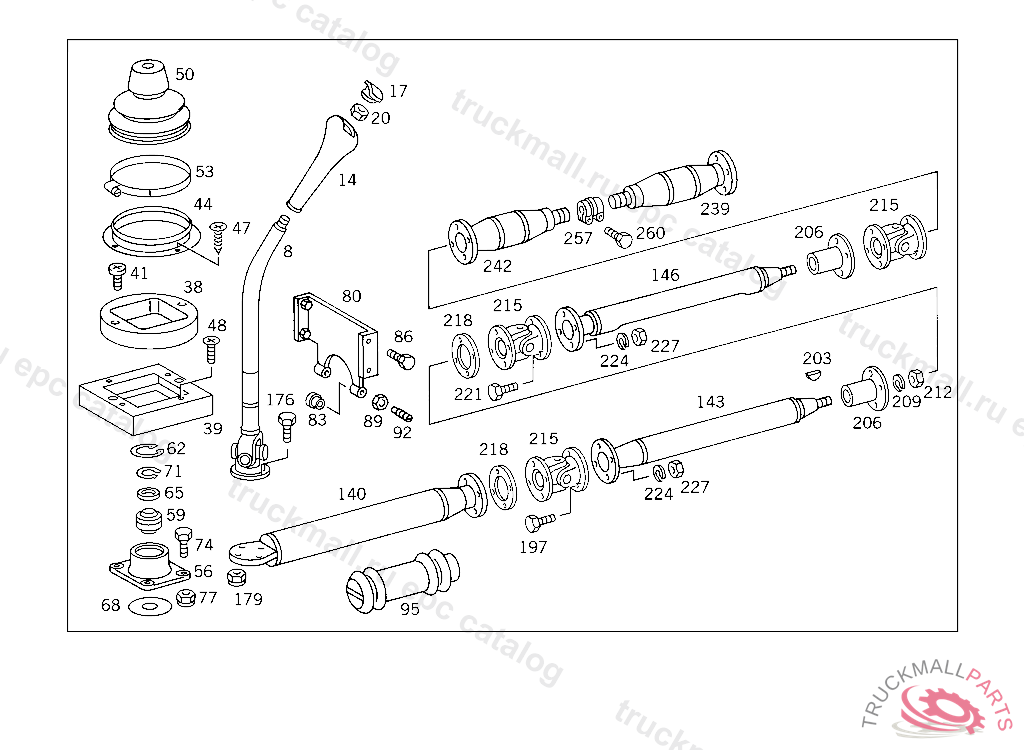

Поз.
Артикул
Описание
8
SHIFT LEVER
17
COVER 6-SPEED,SHIFT LEVER KNOB
17
COVER 6-SPEED,SHIFT LEVER KNOB
20
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
39
PLATE BEARING BRACKET, : 006021
41
SCREW CLAMP MOUNTING M 6X16
44
CLAMPING PIECE ,C 073901
47
SHEET METAL SCREW
48
SCREW CLAMPING PIECE TO SHIFTING ROD M4 X 16, : 006021NAO 9/04
50
BOOT SHIFT LEVER
50
BOOT (POWER CYLINDER),POWER STEERING
53
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE
56
BRACKET SHIFT LEVER
59
JOINT BEARING SHIFT LEVER
62
LOCK RING
65
SPACER RING
68
GASKET
71
LOCK RING
74
SCREW LINES TO BRACKET
74
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
77
NUT ENGINE MOUNTING M8
80
BRACKET SHIFT LEVER
83
SLIDE
86
SCREW PLUG SOCKET TO FRAME
86
SCREW BRACKET TO SIDE MEMBER M8X20
89
NUT BATTERY CABLE TO CABLE CONNECTOR
92
SCREW SLIDE ADJUSTMENT
95
BOOT
140
SHIFTING TUBE FRONT
140
SHIFTING TUBE FRONT, 010626
143
SHIFTING TUBE REAR
146
SHIFTING TUBE CENTRAL, 010626
176
SCREW SHIFTING ROD TO TRANSMISSION
176
SCREW SHIFTING TUBE TO TRANSMISSION
179
NUT HORN TO BRACKET M8
197
SCREW BRACKET TO SIDE MEMBER M8X20
203
WOODRUFF KEY STEERING WHEEL TO STEERING COLUMN
203
WOODRUFF KEY FLANGE TO SHIFTING TUBE
206
CONNECTOR FLANGE TO SHIFTING TUBE
209
LOCK WASHER FITTING TO BRACKET
212
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET M10
212
NUT ANGLE TO FRAME
215
JOINT REAR SHIFTING ROD
215
JOINT REAR SHIFTING ROD
218
SPACER WASHER2 MM
218
SPACER WASHER5 MM
218
SPACER WASHER3 MM
218
GUIDE SLEEVE FRONT SHIFTING ROD TO REAR SHIFTING ROD 16 MM, 010627
221
SCREW SHIFTING ROD TO TRANSMISSION
221
SCREW SHIFTING TUBE TO TRANSMISSION
221
SCREW COLD START SYSTEM TO BRACKET
224
LOCK WASHER RAIL TO BATTERY SUPPORT
227
NUT STRAP TO BRACKET
239
SHIFTING ROD REAR, D 007187 010626
242
SHIFTING TUBE REAR, 010626
257
CLAMPING PIECE SHIFTING TUBE TO TRANSMISSION
260
SCREW CONNECTOR TO REAR SHIFTING ROD
260
SCREW CROSS MEMBER TO SIDE MEMBERS
