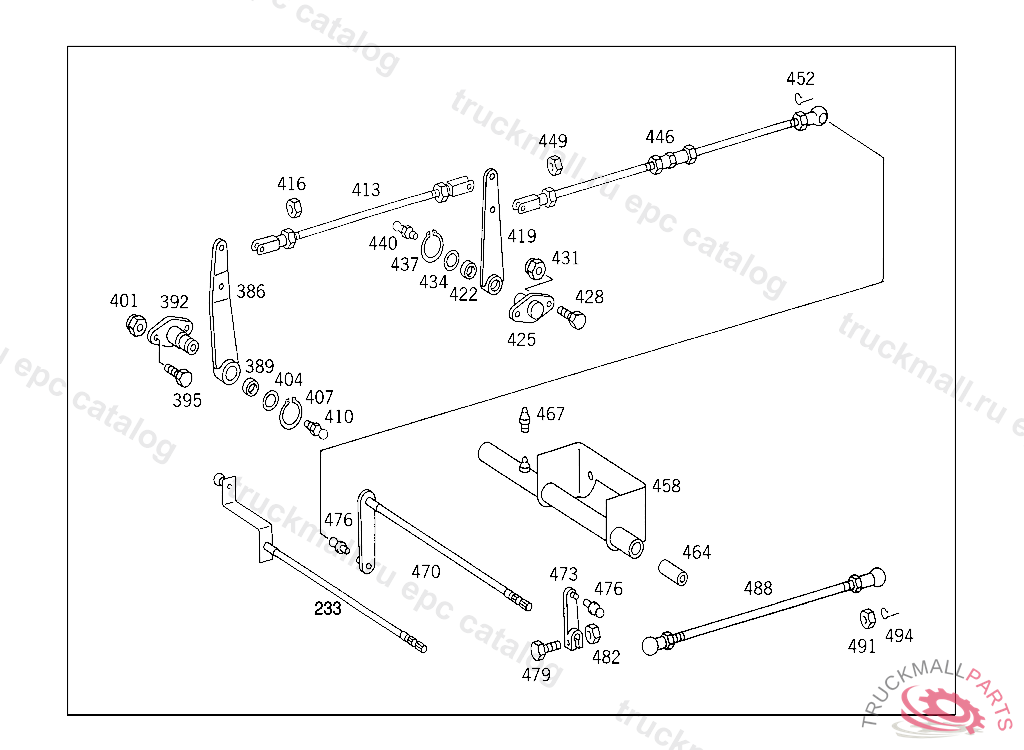

Поз.
Артикул
Описание
233
INTERMEDIATE SHAFT CONTROL,REAR,B 990550010626
386
LEVER (INTERMEDIATE LEVER) I
389
BUSHING MANUAL CONTROL,D 249954
392
PIN REVERSING LEVER I
395
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
401
NUT HORN TO BRACKET M8
404
WASHER PEDAL BEARING
407
LOCK RING
407
LOCK RING BELT TIGHTENER
410
GREASE NIPPLE
413
ROD FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II
416
NUT BALL PIVOT TO LEVER
419
LEVER (INTERMEDIATE LEVER),793544
422
BUSHING MANUAL CONTROL,D 249954
425
PIN REVERSING LEVER II
428
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
431
NUT HORN TO BRACKET M8
446
ROD
449
NUT BALL PIVOT TO LEVER
458
BRACKET ,D 209703
464
BUSHING
467
GREASE NIPPLE PROTECTIVE TUBE
470
LEVER ,D 209702
473
LEVER ACCELERATOR CONTROL
473
LEVER , Replaced By: A3520709021
476
BALL PIVOT LEVER
476
BALL PIVOT INTERMEDIATE LEVER
479
SCREW , Replaced By: N000000001479
482
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
488
ROD CONTROL,REAR
491
NUT BALL PIVOT TO LEVER
494
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
