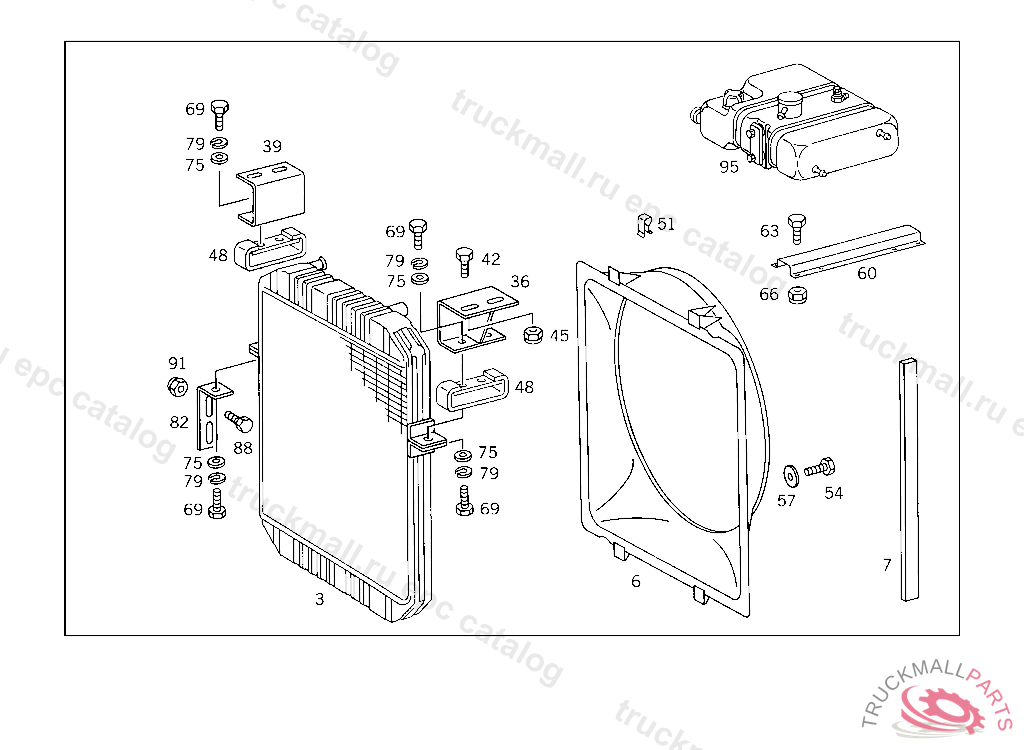

Поз.
Артикул
Описание
3
RADIATOR
3
RADIATOR
3
RADIATOR
6
FAN SHROUD RADIATOR
6
FAN SHROUD RADIATOR
6
FAN SHROUD RADIATOR
6
FAN SHROUD RADIATOR
36
BRACKET , Replaced By: A3845008331
36
BRACKET LEFT
39
BRACKET , Replaced By: A3845008431
39
BRACKET RIGHT
42
SCREW , Replaced By: N304017010040
45
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
48
RUBBER MOUNTING RADIATOR
48
RUBBER MOUNTING RADIATOR
51
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
54
SCREW CLAMP TO BRACKET
57
WASHER , Replaced By: N009021006208
60
BRACKET
63
SCREW , Replaced By: N304017010040
66
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
69
SCREW , Replaced By: N304017010040
69
SCREW ANGLE TO CROSS MEMBER M 10X30
75
WASHER GROUND CABLE
79
LOCK WASHER FUSE
82
BRACKET , Replaced By: A3464296040
88
SCREW , Replaced By: N304017010040
91
NUT BRACKET TO SIDE MEMBER,XB209706
95
TANK EXPANSION TANK
