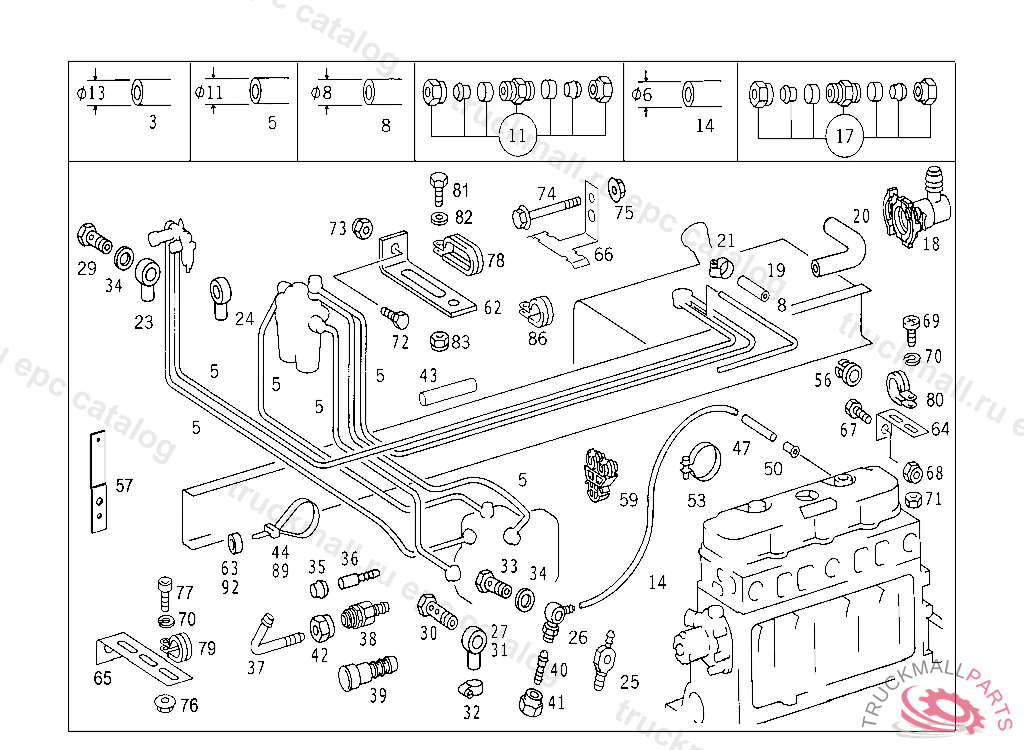

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
PLASTIC PIPE8X6 MM, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
11
FITTING (PARTS KIT),LINE RUPTURE
19
HOSE FEED LINE AND RETURN LINE
21
CLAMP , Replaced By: N916017011001
25
BANJO UNION
25
BANJO UNION CONNECTION OF FUEL LINES
29
HOLLOW SCREW
34
SEAL RING INJECTION PUMP
37
CONNECTOR
41
NUT. UNION NUT RETURN
43
HOSE VIOLET
43
INSULATING HOSE CHECK VALVE,CONNECTION "2"
43
HOSE WITHE
43
INSULATING HOSE , ORDER BY THE METER
44
LOOM TIE ELECTRIC CABLE MOUNTING
44
LOOM TIE , Replaced By: A3459977390
47
HOSE , ORDER BY THE METER
47
HOSE RETURN LINE TO ENGINE, ORDER BY THE METER
53
CLAMP LINE MOUNTING
56
BUSHING FUEL LINE THRU FRAME SIDE MEMBER
62
BRACKET POS. CABLE,XB209706
63
WASHER , Replaced By: A3609902340
72
SCREW BRACKET TO BUMPER,LEFT M 10X25
73
NUT BRACKET TO SIDE MEMBER,XB209706
89
LOOM TIE LINE MOUNTING
