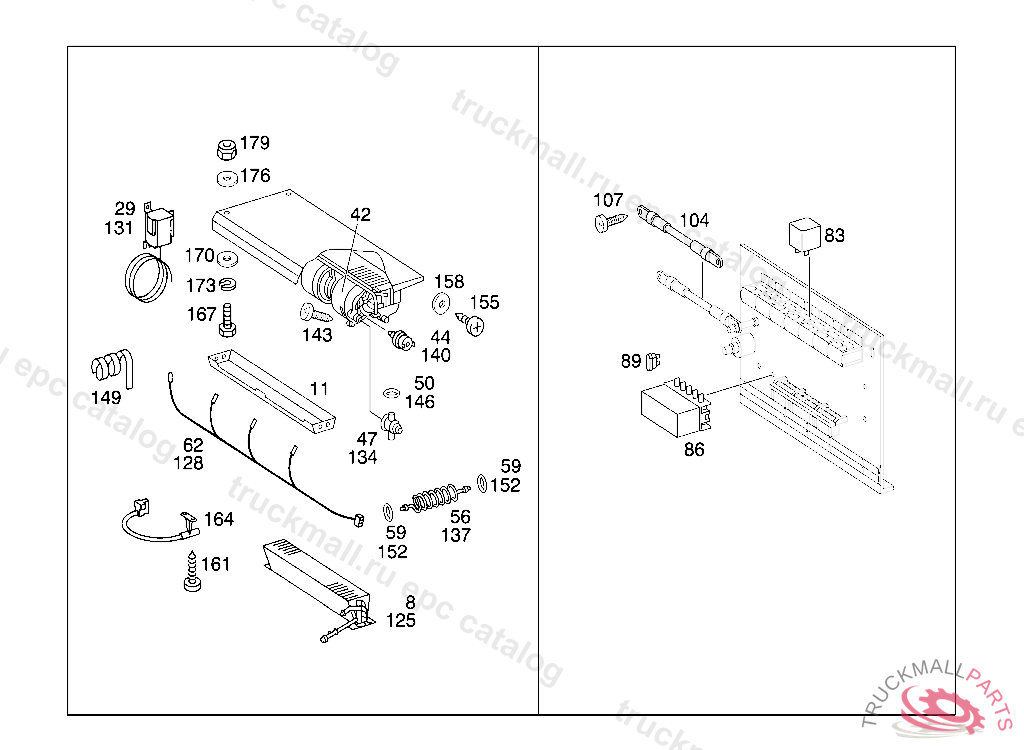

Поз.
Артикул
Описание
8
EVAPORATOR , TO BE PROCURED FROM MBA ONLY
11
AIR DUCT
29
THERMOSTAT
42
FAN
44
OIL-BREAK SWITCH LOW PRESSURE
47
VALVE
50
SEAL RING
56
PIPE LINE. PIPELINE CAPILLARY TUBE, NOT USED
59
SEAL RING7/16"
62
ELECTRIC CABLE BLOWER
83
RELAY
86
FUSE BOX
89
FUSE7,5A,238646
89
FUSE30 A
104
ELECTRIC CABLE (GROUND CABLE)
107
SHEET METAL SCREW. TAPPING SCREW , Replaced By: N000000000464
125
EVAPORATOR , TO BE PROCURED FROM MBA ONLY
128
ELECTRIC CABLE BLOWER
131
THERMOSTAT
134
VALVE
137
PIPE LINE. PIPELINE CAPILLARY TUBE, NOT USED
140
OIL-BREAK SWITCH LOW PRESSURE
143
SHEET METAL SCREW , Replaced By: N000000000459
143
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
146
SEAL RING
149
INSULATION , Replaced By: A9018311396
152
SEAL RING7/16"
155
TAPPING SCREW. SHEET METAL SCREW FUEL LINE
158
WASHER COVERING TO CYCLONE AIR TRAP
161
SHEET METAL SCREW , Replaced By: N000000002062
161
SCREW
164
TEMPERATURE SENSOR , TO BE PROCURED FROM MBA ONLY
167
SCREW , Replaced By: N910105008016
170
WASHER EVAPORATOR TO CAB
173
WASHER
176
WASHER EVAPORATOR TO CAB
179
NUT EVAPORATOR TO CAB
999
INSULATION
999
CASE
999
CASE
999
CASE 6-POLE
999
EVAPORATOR , Replaced By: A6908307358
999
EVAPORATOR , Replaced By: A6908307258
999
CONDENSER ROOF
999
EVAPORATOR. CONDENSER , TO BE PROCURED FROM MBA ONLY
999
EVAPORATOR , TO BE PROCURED FROM MBA ONLY
999
T-FITTING ,A 501957
999
T-FITTING ,A 501957
