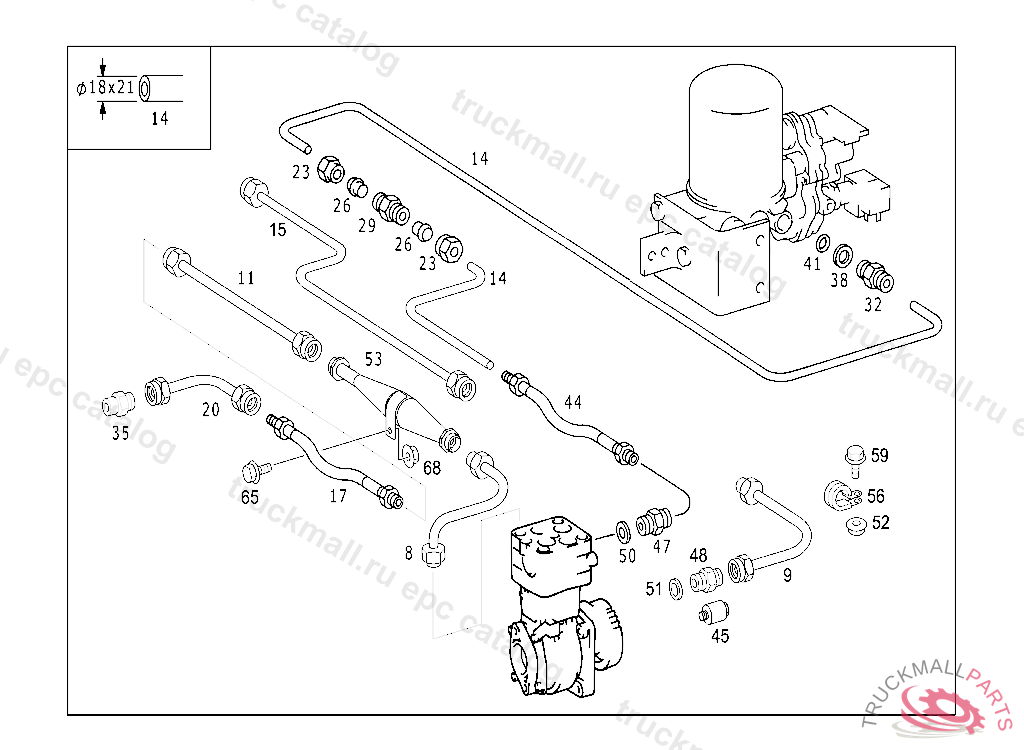

Поз.
Артикул
Описание
8
8
9
11
11
17
20
23
UNION NUT
23
UNION NUT LINE MOUNTING
26
GLAND , Replaced By: A0019901167
26
GLAND , Replaced By: A0019901667
29
CONNECTION FITTING , Replaced By: N003902018002
32
SCREW-IN FITTING RELAY VALVE,CONNECTIONS: "32,34"
35
FITTING SUPPLY LINE
38
THRUST RING CHECK VALVE TO AIR RESERVOIR
38
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
41
O-RING CHECK VALVE TO AIR RESERVOIR
44
BRAKE HOSE COMPRESSED AIR HOSE
45
THROTTLE HOUSING. FITTING
47
CONNECTOR AT AIR COMPRESSOR, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 588185
48
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
50
SEAL RING ENGINE AIR COMPRESSOR,CONNECTION: "20"
51
SEAL RING LINE CONNECTION
52
NUT BRACKET TO FIRE WALL
53
MUFFLER FROM AIR COMPRESSOR TO PRESSURE REGULATOR,095094 UP TO IDENT NO.099977, INOLTRE MONTATO IN 099368,099369
56
CLAMP HYDRAULIC LINE TO SIDE MEMBER,RB012797
59
SCREW BRACKET AND CLAMP M6X20
65
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
68
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
999
PLUGM12X1.5
