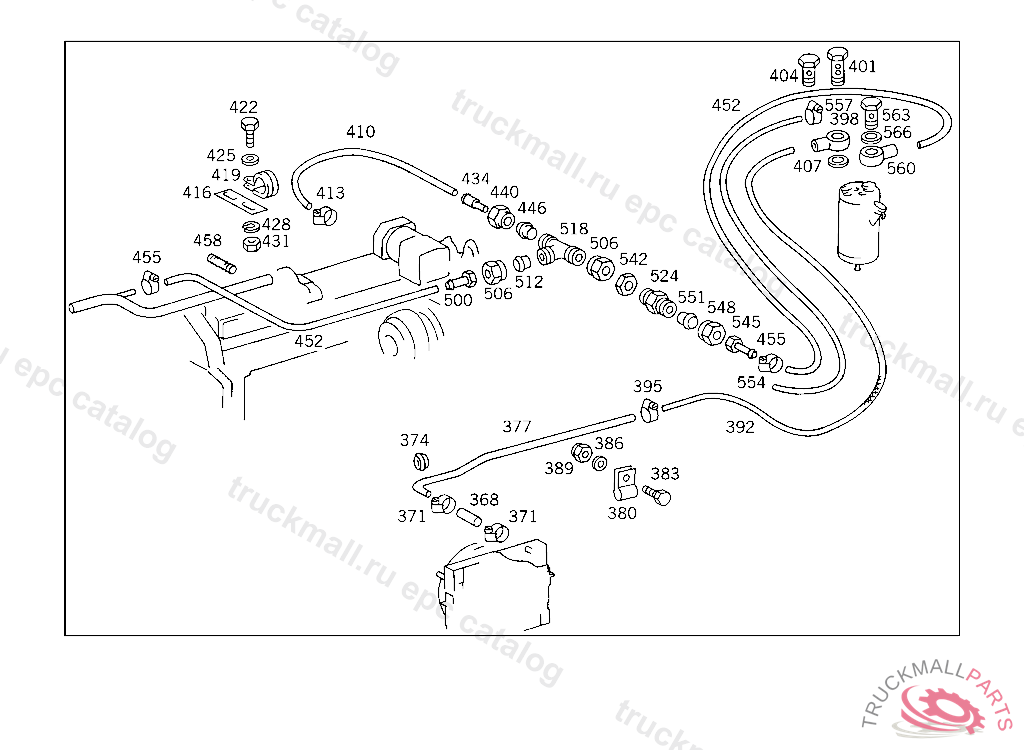

Поз.
Артикул
Описание
368
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
371
CLAMP , Replaced By: N000000000665
371
CLAMP , Replaced By: N916017011001
374
GROMMET , Replaced By: A0009974781
374
GROMMET COMPRESSED AIR LINE THRU CROSS MEMBER
377
380
CLAMP8 MM
383
SCREW CAB FLOOR COVERING M 6X25
386
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
389
NUT , Replaced By: N913004006001
392
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
395
CLAMP , Replaced By: N000000000665
395
CLAMP , Replaced By: N916017011001
398
BANJO UNION FEED 8/14 MM,659794
404
HOLLOW SCREW , Replaced By: N915036010108
407
SEALING RING. SEAL RING ENGINE BREATHING
410
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
413
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
413
CLAMP HOSE TO FITTING AND TO OIL TANK
416
BRACKET , Replaced By: A6985013820
416
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
419
CLAMP DE-AERATION LINE
422
SCREW , Replaced By: N304017008034
425
WASHER , Replaced By: N000125008443
428
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
431
NUT , Replaced By: N304032008006
434
BREATHER PIPE COMPRESSOR DE-AERATION LINE TO T-FITTING
440
UNION NUT LINE CONNECTION
446
GLAND LINE CONNECTION
524
FITTING HYDRAULIC LINE TO BRACKET,K 130132
542
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
545
COOLING WATER PIPE8 MM
548
UNION NUT LINE CONNECTION
551
GLAND LINE CONNECTION
554
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
557
CLAMP , Replaced By: N000000000665
557
CLAMP , Replaced By: N916017011001
560
BANJO UNION FEED 8/14 MM,659794
563
HOLLOW SCREW , Replaced By: N915036010108
566
SEALING RING. SEAL RING ENGINE BREATHING
999
