Mercedes A3245404405 - Leitungssatz

GO 4/160-6/8,2 714.693 FROM PRODUCTION 1998

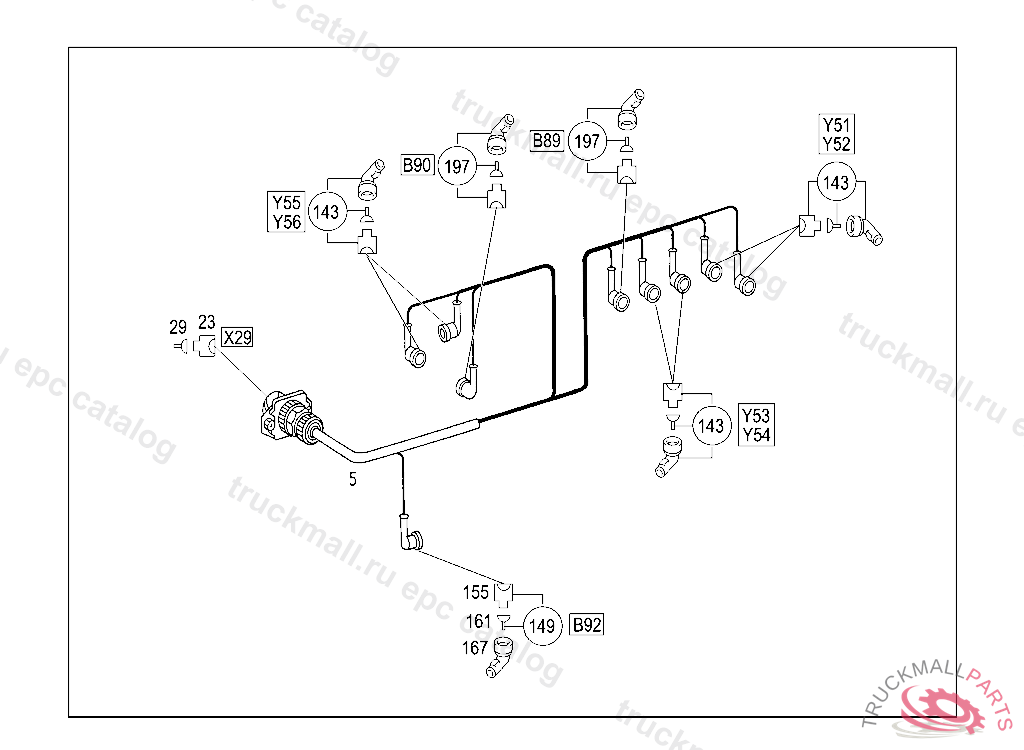

26 TRANSMISSION, SIX-SPEED (EVOBUS) - 410 ELECTRIC CABLES, ATTACHMENT PARTS IL. 1

Поз.
Артикул
Описание
5
A3245404405
CABLE HARNESS ,404101
23
A6555451328
PLUG HOUSING 22-POLE
29
A0195455628
FLAT PLUG LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0 MM2
143
A3805402281
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 27X1
149
A0025402381
PARTS KIT FUEL GAUGE SENDER UNIT, THIS CABLE HARNESS IS A COMPONENT OF FRAME MOUNTED CABLE HARNESS ASSEMBLY AND CAN BE MADE AVAILABLE AS A SPARE ATTENTION: WHEN PLACING ORDERS, PLEASE QUOTE VEHICLE IDENT NO. ONLY IF FRAME MOUNTED CABLE HARNESS IS REQUIRED AS AN ASSEMBLYK 171434
155
A0345451426
SOCKET HOUSING 3-POLE
155
A0155456526
PLUG SOCKET BRANCH-OFF TO FUEL GAUGE SENDER UNIT
161
A0005457380
CORE BUNDLE SEALING1.0-2.5 MM2
161
A0095454726
ROUND PIN BUSHING0.5-1.0 MM2
161
A0005457280
WIRE SEAL GREY 0.5-1.0 MM2
161
A0005456280
GASKET. BLIND PLUG
161
A0065459126
CONTACT SPRING. CONTAKT SOCKET BRANCH-OFF TO FUEL GAUGE SENDER UNIT 1.0 - 2.5 MM2
167
A0005467735
BOOT PLUG-IN CONNECTION,FUEL GAUGE SENSOR
197
A3805402181
PLUG SOCKET REPAIR VERSION, NOT FOR DANGER CATEGORY VEHICLES M 24X1
