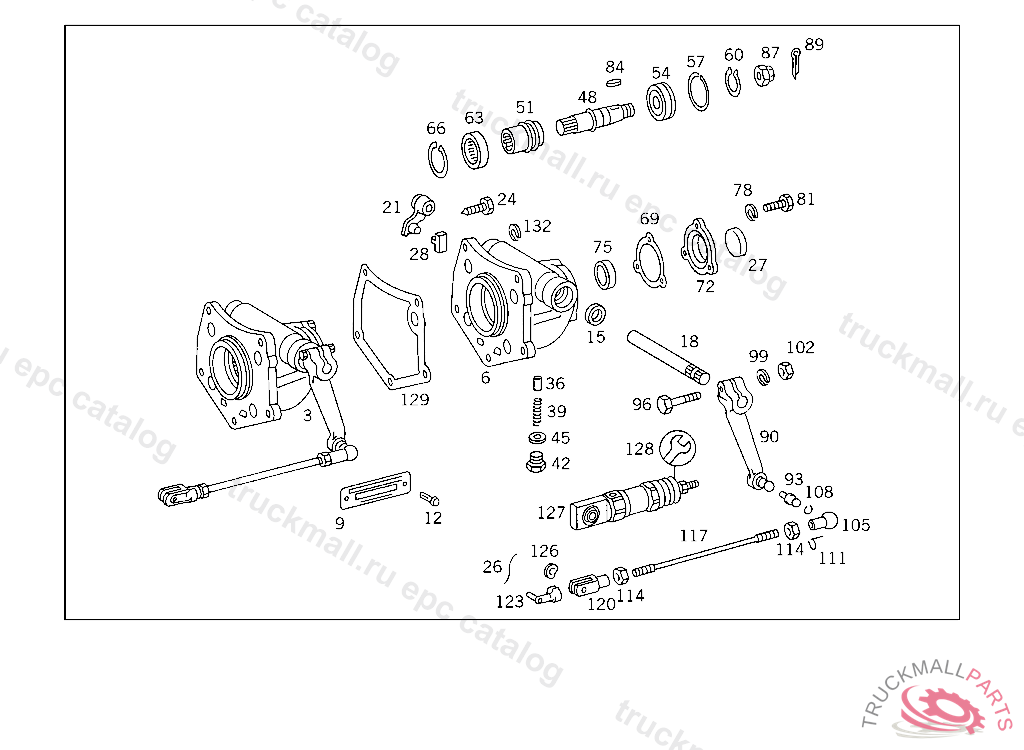

Поз.
Артикул
Описание
3
P.T.O.
3
P.T.O.
6
CASE
6
CASE
9
UNIT IDENTIFICATION PLATE
12
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
15
SEAL RING
18
SHIFTING ROD
21
LOCK-OUT
21
LOCK-OUT
24
SCREW SHIFTING FORK TO SHIFTING ROD
26
WIRE
27
EXPANSION PLUG ENGINE LEFT AND RIGHT SUPPORTS
28
COLLAR. SLEEVE
28
SCHALTKLAUE. COLLAR
36
INTERLOCK PIN
39
SPRING
42
SCREW PLUG
45
SEAL RING FROM FUEL TANK TO FUEL TANK
48
DRIVE SHAFT
51
SLIDING COLLAR DRIVE SHAFT
54
GROOVED BALL BEARING
57
SNAP RING
60
RETAINING RING BEARING TO DRIVE SHAFT
63
NEEDLE BEARING DRIVE SHAFT
66
LOCK RING
69
GASKET BRACKET TO TRANSMISSION CASE
72
COVER
72
COVER P.T.O.
75
RADIAL SEAL RING
78
LOCK WASHER
81
SCREW
84
KEY COUPLING FLANGE TO P.T.O.
87
NUT , Replaced By: N000937024002
89
COTTER PIN DRAG LINK TO LEVER
90
LEVER SHIFTING SHAFT
90
LEVER (SHIFTING SHAFT)
93
BALL PIVOT
96
HEX. HEAD. SCREW LEVER TO SHIFTING SHAFT
99
LOCK WASHER
102
NUT LEVER TO SHIFTING SHAFT
105
BALL SOCKET POWER CYLINDER
108
SNAP RING
111
CIRCLIP ,B 884219
114
NUT LEVER TO SHIFTING SHAFT
117
PULL ROD
120
YOKE
123
PIN PULL ROD TO TRANSMISSION SHIFT LEFER
126
SPRING WASHER
127
SHIFTING CYLINDER PNEUMATIC SCHRADER DO BRASIL
127
SHIFTING CYLINDER , Replaced By: A3862607263
127
SHIFTING CYLINDER PNEUMATIC WABCO DO BRASIL
128
REPAIR KIT SHIFTING CYLINDER TO 386 260 70 63, NOT USED
128
SHIFTING CYLINDER REPAIR KIT T0 386 260 72 63
129
GASKET COVER TO CASE REAR COVER
129
GASKET , Replaced By: A3522611680
129
GASKET , Replaced By: A3522611980
132
LOCK WASHER
999
COVER AT TRANSMISSION CASE REAR COVER,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
