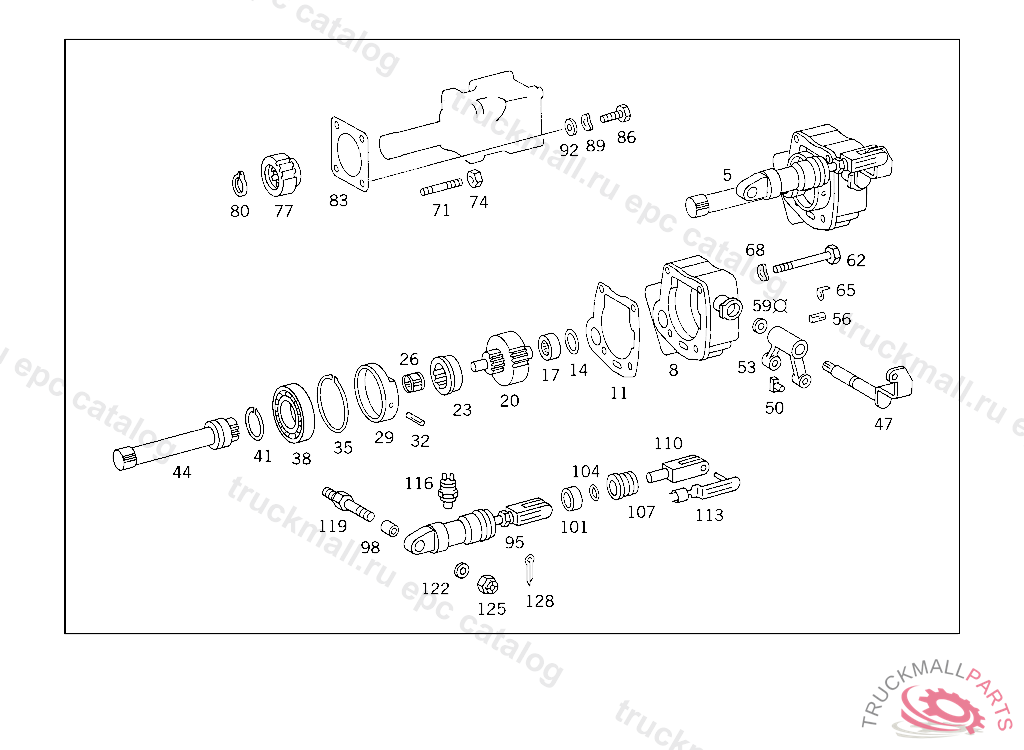

Поз.
Артикул
Описание
5
P.T.O.NA 3/90-2C
8
CASE , 714.2 8-SPEED,FROM TRANSMISSION 022106,9-SPEED,FROM TRANSMISSION 007289,714.3 FROM TRANSMISSION 004580
8
CASE , 714.2 8-SPEED,UP TO TRANSMISSION 022105,9-SPEED,UP TO TRANSMISSION 007288,714.3 UP TO TRANSMISSION 004579, Replaced By: A3852640801, +001A3852640487, +001N001481005020
8
CASE , 714.2 8-SPEED,UP TO TRANSMISSION 022105,9-SPEED,UP TO TRANSMISSION 007288,714.3 UP TO TRANSMISSION 004579, Replaced By: A3852640801, +001A3852640487, +001N001481005020
11
GASKET , Replaced By: A3852642580
11
GASKET P.T.O. TO TRANSMISSION
14
FITTED WASHER
17
NEEDLE BEARING
17
NEEDLE BEARING , Replaced By: A0079810010
20
GEAR DRIVE
23
SLIDING COLLAR
26
ROLLER ASSEMBLY
26
ROLLER ASSEMBLY
26
ROLLER ASSEMBLY
26
ROLLER ASSEMBLY
26
ROLLER ASSEMBLY , Replaced By: A0029813412
26
ROLLER ASSEMBLY
29
RING , 714.2 8-SPEED,UP TO TRANSMISSION 022105,9-SPEED,UP TO TRANSMISSION 007288,714.3 UP TO TRANSMISSION 004579
29
RING , 714.2 8-SPEED,FROM TRANSMISSION 022106,9-SPEED,FROM TRANSMISSION 007289,714.3 FROM TRANSMISSION 004580
32
CLAMPING SLEEVE
35
SNAP RING
38
BALL BEARING
38
BALL BEARING
41
LOCK RING DRIVE GEAR
44
INTERMEDIATE SHAFT
47
SHAFT (SHIFTING SHAFT), 714.2 8-SPEED,FROM TRANSMISSION 022106,9-SPEED,FROM TRANSMISSION 007289,714.3 FROM TRANSMISSION 004580
47
SHAFT , 714.2 8-SPEED,UP TO TRANSMISSION 022105,9-SPEED,UP TO TRANSMISSION 007288,714.3 UP TO TRANSMISSION 004579, Replaced By: A3852601138, +001A3852640326, +001N001481006027
50
SLIDE , Replaced By: A3852640449
50
SLIDE SHIFTING FORK
53
SHIFTING FORK P.T.O., 714.2 8-SPEED,FROM TRANSMISSION 022106,9-SPEED,FROM TRANSMISSION 007289,714.3 FROM TRANSMISSION 004580
53
SHIFTING FORK , 714.2 8-SPEED,UP TO TRANSMISSION 022105,9-SPEED,UP TO TRANSMISSION 007288,714.3 UP TO TRANSMISSION 004579, Replaced By: A3852640326, +001A3852601138, +001N001481006027
56
CLAMPING SLEEVE CRANK TO BUSHING
59
SEAL RING
62
SCREW P.T.O. TO TRANSMISSION M10X75
62
SCREW P.T.O. TO TRANSMISSION M10X85
62
SCREW P.T.O. TO TRANSMISSION M10X50
65
LOCK PLATE P.T.O. TO TRANSMISSION
68
SPRING WASHER STEERING COLUMN BRACKET TO CAB
71
STUD P.T.O. HOUSING
74
NUT COVER TO FLANGE
77
GEAR DRIVE
80
LOCK RING. RETAINING RING OIL PUMP TO TRANSMISSION CASE
83
GASKET , Replaced By: A6022640280
83
GASKET , Replaced By: A3852641680
86
SCREW , Replaced By: N304017012020
86
SCREW END PIECE TO EXHAUST PIPE M 12X30
89
SPRING WASHER CAB FLOOR
89
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
92
WASHER BRACKET TO LEFT SIDE MEMBER
95
SHIFTING CYLINDER P.T.O. CONTROL,024081
95
SHIFTING CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 315114, Replaced By: A0002602963
95
SHIFTING CYLINDER , Replaced By: A0002602963
95
SHIFTING CYLINDER P.T.O.
98
BUSHING
101
GROOVED RING
104
SEALING CORD
107
PROTECTIVE CAP
110
YOKE OPERATING ROD,K 202311
113
PIN
113
PIN SHIFT LEVER TO PIVOT PIN
116
SWITCH , Replaced By: A0005459009
116
SWITCH , Replaced By: A0005457909
116
SWITCH , Replaced By: A0015452709
116
SWITCH TORQUE REDUCER
119
PIN SHIFTING CYLINDER TO TRANSMISSION CASE
122
WASHER RADIATOR TO RUBBER MOUNTING
122
WASHER , Replaced By: N000125010532
125
NUT BRACKET TO TELESCOPIC TUBE,K 142858
128
COTTER PINTO 345 460 94 05
