Поз.
Артикул
Описание

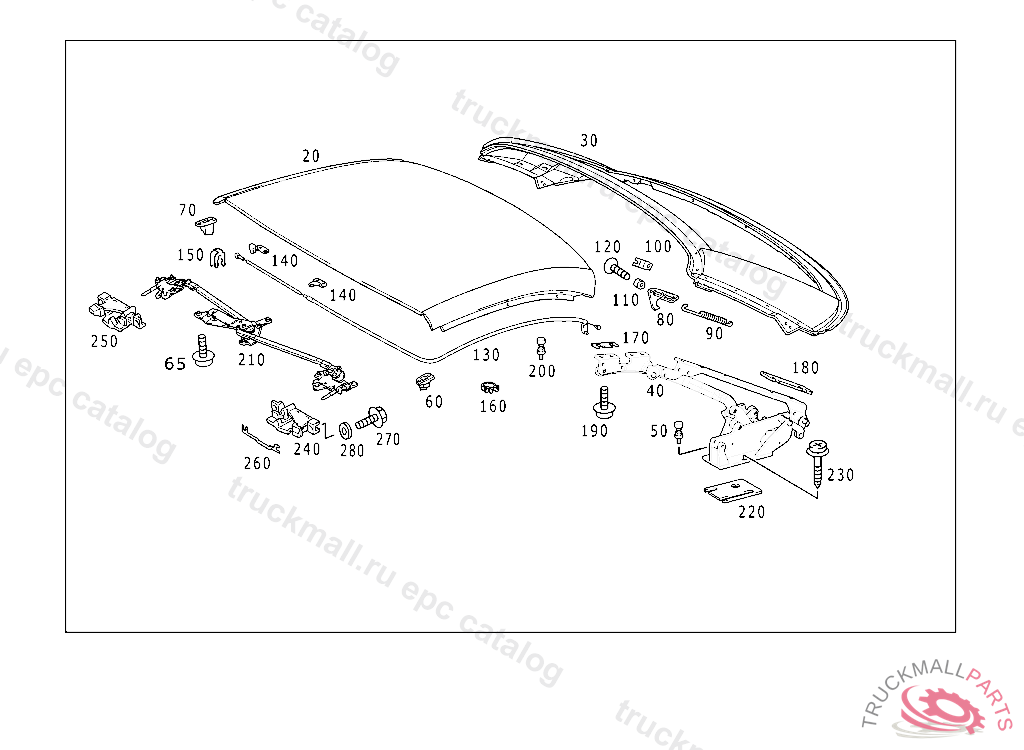

20
HARDTOP VARIO ROOF FRONT
30
HARDTOP VARIO ROOF REAR
40
TARPAULIN FRAME ASSEMBLY VARIO ROOF FRONT LEFT
40
TARPAULIN FRAME ASSEMBLY VARIO ROOF,FRONT RIGHT
50
BUFFER LEFT, FROM CHASSIS: 010 077937
60
STAY VARIO ROOF FRONT LEFT
65
SCREW , Replaced By: A1409842829
70
STAY VARIO ROOF,FRONT RIGHT
80
LATCH RIGHT
80
LATCH LEFT
90
SPRING ON ROOF FRAME
100
BRACKET ON ROOF FRAME
110
CONE ON ROOF FRAME
120
SCREW PIVOT TO FOLDING TOP RAIL
130
ROPE LOCKING FRONT OF ROOF TO REAR OF ROOF, RIGHT
130
ROPE LOCKING FRONT OF ROOF TO REAR OF ROOF, LEFT
140
BRACKET GUIDE, CABLES
150
LOCK
160
CLAMP BOWDEN CABLE TO CAB
170
PAD BETWEEN ROOF FRAME AND VARIO ROOF, FRONT
180
PAD BETWEEN ROOF FRAME AND VARIO ROOF, REAR
190
SCREW TRUNK LID TO TUBULAR FRAME
200
BUFFER LEFT, FROM CHASSIS: 010 077937
210
FASTENER ON VARIO ROOF,FRONT
220
PAD BETWEEN BEARING AND BODY
230
BOLT SUPPORTING ELEMENT TO LONGITUDINAL MEMBER
240
HOLDING DEVICE. TAKE-UP DEVICE LOCKING PIN, LEFT
250
HOLDING DEVICE LOCKING PIN, RIGHT
260
PLATE ON SUPPORT OF LOCKING PIN
270
SCREW PUMP TO BRACKET
280
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
280
WASHER COMPRESSED AIR LINE TO BRACKET
