Поз.
Артикул
Описание
5

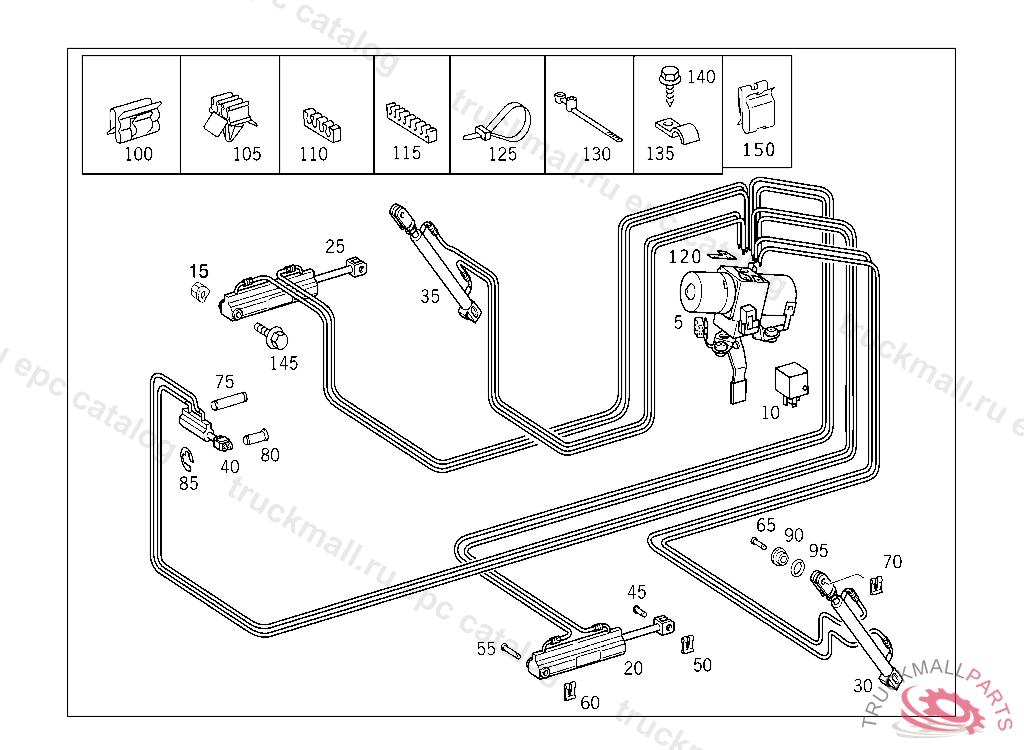

PUMP HYDRAULIC SYSTEM
10
RELAYETS/ASR/ESP, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
15
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
15
NUT-AND-WASHER ASSEMBLY HINGE, Replaced By: N910104006001
15
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
20
CYLINDER MAIN DRIVE,LEFT WITH LINE TO PUMP
25
CYLINDER MAIN DRIVE, RIGHT WITH LINE TO PUMP
30
CYLINDER TRUNK LID DRIVE,LEFT WITH LINE TO PUMP
35
CYLINDER TRUNK LID DRIVE,RIGHT WITH LINE TO PUMP
40
CYLINDER SOFT TOP LOCK FRONT WITH LINE TO PUMP
45
PIN CYLINDER ON ROOF FRAME
50
LOCK PULL TO FASTENER
55
PIN CYLINDER ON MAIN BEARING,FRONT
60
CLIP LEVER TO BRACKET
60
CLIP GUIDE TO LEVER AND TO PILLAR
65
PIN PROTECTION AGAINST TORSION FOR HYDRAULIC LINES
70
LOCK PULL TO FASTENER
75
PIN HYDRAULIC CYLINDER MOUNTING VARIO ROOF FRONT
75
PIN HYDRAULIC CYLINDER TO FOLDING TOP LOCK
80
PIN TO HINGE
80
HINGE PIN HYDRAULIC CYLINDER MOUNTING VARIO ROOF FRONT
85
LOCK PLATE
85
FUSE HYDRAULIC CYLINDER TO FOLDING TOP LOCK
90
BUSHING
95
SEAL RING SUPPORTING SLEEVE TO JOINT HOUSING
100
CLIP , Replaced By: A1269882078
105
CLAMP BOWDEN CABLE TO CAB
110
CLIP
115
CLIP
120
LOCK
125
CABLE TIE BRANCH-OFF LINE FASTENING FOR RPM SENSOR
130
LOOM TIE187 MM
135
CLAMP HOSE TO CAB SUPPORT
140
SHEET METAL SCREW
145
COMBINATION BOLT
150
CLIP TO SHIELD
