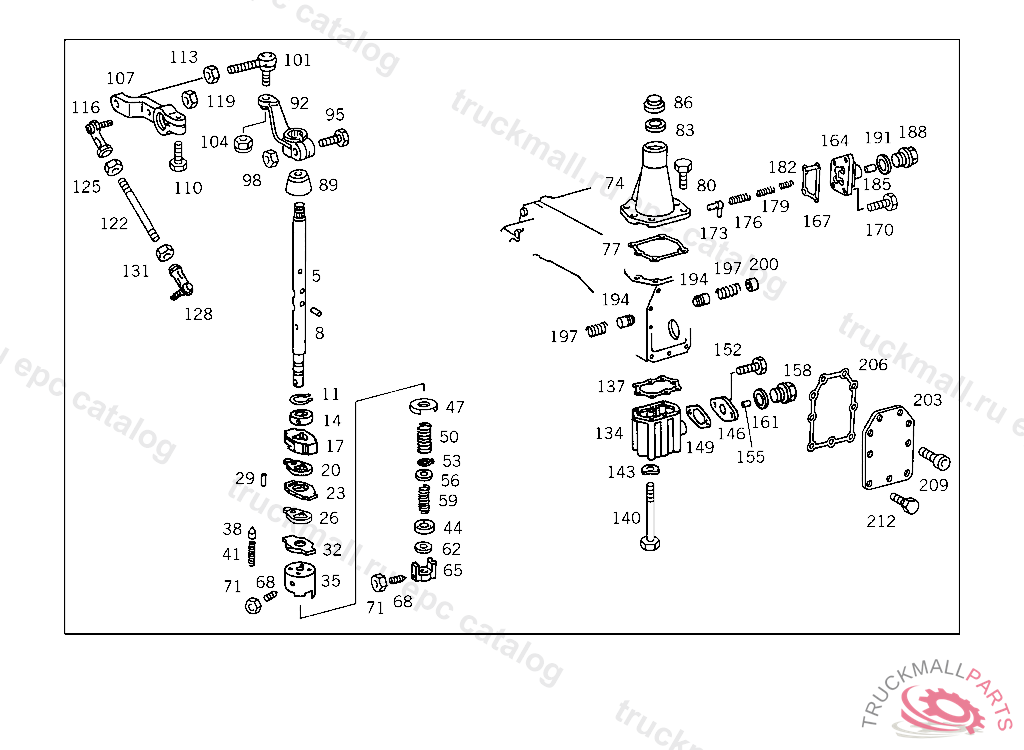

Поз.
Артикул
Описание
5
SHIFTING SHAFT
8
ROLLER SHIFTING SHAFT
11
LOCK RING SHIFTING SHAFT,001581
14
WASHER SHIFTING SHAFT
17
SHIFTING SEGMENT SHIFTING SHAFT
20
FOLLOWER SHIFTING SHAFT
23
SHIFTING SEGMENT SHIFTING SHAFT
26
FOLLOWER SHIFTING SHAFT
26
FOLLOWER , Replaced By: A0002670043
29
DOWEL PIN SHIFTING SEGMENT
32
SHIFTING SEGMENT SHIFTING SHAFT
35
SHIFTING SEGMENT SHIFTING SHAFT
38
PIN SHIFTING SHAFT
41
SPRING REAR SHIFTING ROD
44
SPACER WASHER SHIFTING SHAFT
47
SPACER WASHER SHIFTING SHAFT
50
SPRING SHIFTING SHAFT
53
LOCK SHIFTING SHAFT
56
SPACER WASHER SHIFTING SHAFT
59
SPRING SHIFTING SHAFT
62
WASHER SHIFTING SHAFT
65
SLOTTED GATE SHIFTING SHAFT
68
SCREW SHIFTING SEGMENT TO SHIFTING SHAFT
71
NUT CAB FLOOR
71
NUT , Replaced By: N308675012000
74
BEARING COVER SHIFTING DOME
77
GASKET SHIFTING SHAFT
77
GASKET , Replaced By: A0002672480
80
SCREW , Replaced By: N304017008034
80
SCREW BRACKET TO CROSS CONNECTION STRUT
83
SEAL RING SHIFTING SHAFT
86
BOOT SHIFTING SHAFT
89
COVER SHIFT LEVER TO TRANSMISSION
92
LEVER SHIFT LEVER
92
SHIFT LEVER , Replaced By: A0002651931
95
SCREW SHIFTING ROD TO JOINT
98
NUT
98
NUT , Replaced By: N304032010002
101
JOINT FROM SHIFTING ROD TO CONNECTOR
104
NUT , Replaced By: A0002680472
104
NUT , Replaced By: N913004010010
104
NUT , Replaced By: N910113010002
104
HEXAGON NUT
107
CONNECTOR BRACING
110
SCREW MOUNTING TO CONSOLE M 14X35
110
SCREW , Replaced By: N308676014008
113
NUT , Replaced By: N308673014001
113
NUT BRACKET TO SIDE MEMBER,K 035196
116
JOINT , Replaced By: A0002686189
116
JOINT TOP
116
BALL JOINT UPPER PULL ROD
119
NUT BRACKET TO TELESCOPIC TUBE,K 142858
122
PULL ROD SHIFTING TRANSFER, TO BE ADAPTED DURING ASSEMBLYK 142858
125
NUT PULL ROD
128
JOINT , Replaced By: A0002686389
128
JOINT BOTTOM
131
NUT STRAP TO SUPPORT,5 149419
134
COVER SHIFT CASE,BOTTOM
134
COVER , Replaced By: A0002672222, +002N000933008153
137
GASKET , Replaced By: A0002672880
137
GASKET SHIFT CASE,BOTTOM
140
SCREW 3/2-WAY VALVE TO BRACKET M 8X105
143
SPRING WASHER , Replaced By: N000137008212
143
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
146
PLATE TRANSMISSION CASE BOTTOM COVER
149
GASKET VALVE TO TRANSMISSION
149
GASKET , Replaced By: A0002672380
152
SCREW , Replaced By: N304017008021
152
SCREW PIPE CLAMP
155
DOWEL PIN SHIFT CASE
158
SCREW PLUG SHIFT CASE
161
SEAL RING
164
COVER SHIFT CASE,SIDE
167
GASKET , Replaced By: A0002673080
167
GASKET SHIFT CASE,SIDE
170
SCREW , Replaced By: N304017008034
170
SCREW BRACKET TO CROSS CONNECTION STRUT
173
INTERLOCK PIN SHIFT CASE,SIDE
173
INTERLOCK PIN , Replaced By: A0002670148
176
SPRING SHIFT CASE,SIDE
179
SPRING SHIFT CASE,SIDE
182
SPRING SHIFT CASE,SIDE
185
PIN SHIFT CASE,SIDE
188
SCREW PLUG
191
SEAL RING SWITCH TO CASE COVER
194
ROLLER SHIFTING SHAFT
194
ROLLER , Replaced By: A0002670368
197
SPRING SHIFT CASE,SIDE
200
BUSHING SHIFTING SHAFT
203
COVER SHIFT CASE,SIDE
203
COVER , Replaced By: A0002672622, +009N000933008145
206
GASKET , Replaced By: A0002672980
206
GASKET PLATE TO TRANSMISSION CASE
209
SCREW
212
SCREW CLAMP TO BRACKET AND TO PIPE
