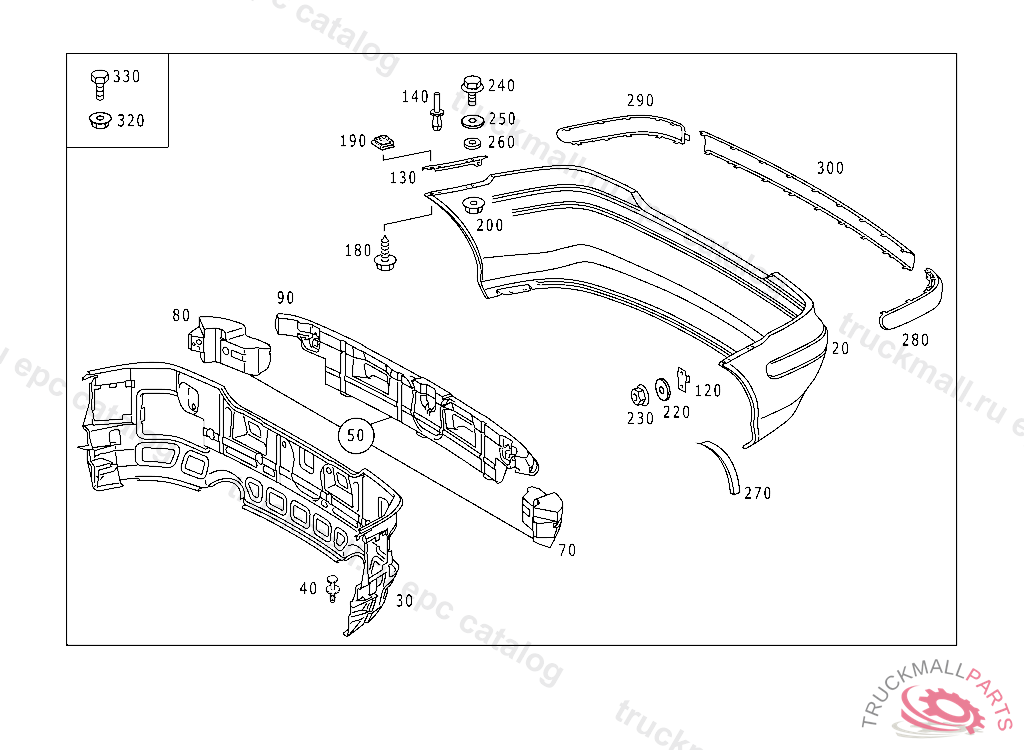

Поз.
Артикул
Описание
20
PANELING BUMPER, TO BE PAINTED PRIOR TO INSTALLATION
20
PANELING BUMPER UPPER SECTION, F 22177620010531801 TO BE PAINTED PRIOR TO INSTALLATION 9999QFT170L9000 COLORLESS
20
PANELING BUMPER LOWER SECTION, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT170L9000 COLORLESS
30
FRAME IN BUMPER PANELLING
40
RIVET
40
BLIND RIVET. RIVET CLAMP TO CROSS MEMBER
50
INTERIOR PART ENERGY-ABSORBING UNIT
70
ENERGY-ABSORBING UNIT LEFT
80
ENERGY-ABSORBING UNIT RIGHT
90
ENERGY-ABSORBING UNIT CENTRAL
90
ENERGY-ABSORBING UNIT CENTRAL
120
PLATE LEFT AND RIGHT
130
PLATE LEFT
130
PLATE RIGHT
140
EXPANSION RIVET ORNAMENTAL COVER TO BUMPER
180
SCREW LICENSE PLATE TO BRACKET
190
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
190
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
190
NUT-AND-WASHER ASSEMBLY HINGE, Replaced By: N910104006001
220
WASHER BUMPER TO TAIL CENTRAL PIECE
230
NUT SPRING-LOADED PUSH ROD
240
SCREW LICENSE PLATE TO BRACKET
250
WASHER COMPRESSED AIR LINE TO BRACKET
260
RUBBER RING EMERGENCY LANTERN TO CAB
270
COVER RIGHT, TO BE PAINTED PRIOR TO INSTALLATION
270
COVER LEFT, TO BE PAINTED PRIOR TO INSTALLATION
280
RAIL PROTECTIVE TRIM TO BUMPER LEFT, 9999QFT170L9000 COLORLESS
290
RAIL PROTECTIVE TRIM TO BUMPER RIGHT, 9999QFT170L9000 COLORLESS
300
RAIL PROTECTIVE TRIM TO BUMPER CENTER
320
NUT HOOK TO BRACKET
330
COMBINATION BOLT N 140 BUMPER TO SUPPORT BOTTOM M5X16
