Поз.
Артикул
Описание

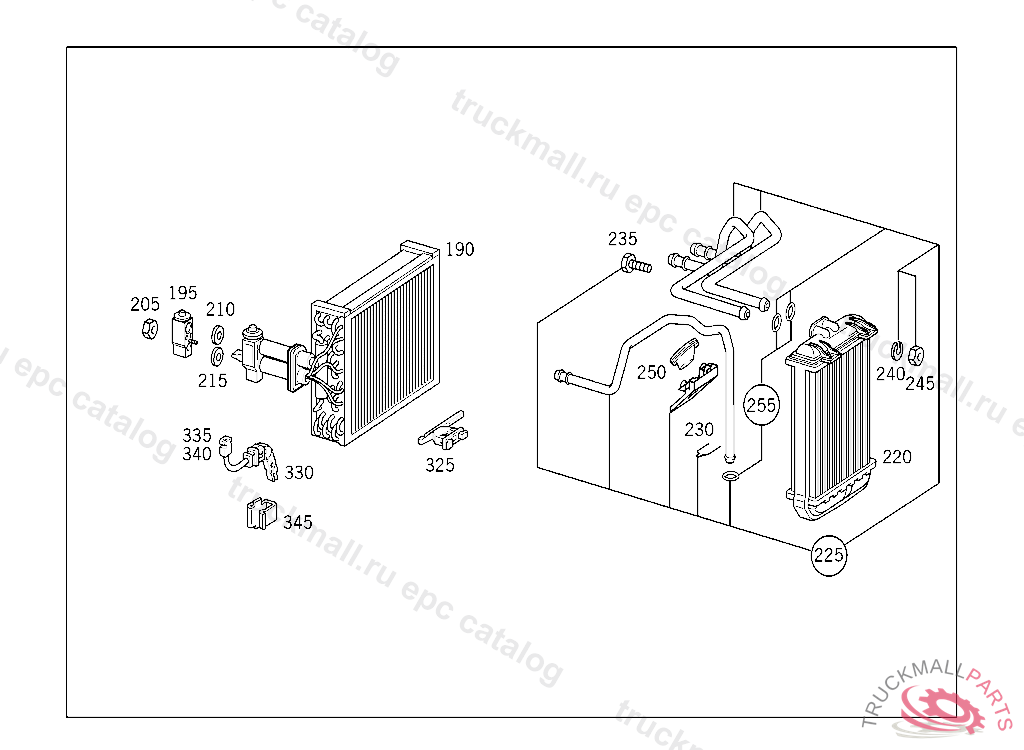

190
EVAPORATOR
195
VALVE PIPE LINE CONNECTION 14MM, E 01022520020418 A 33977020020418 F 28405020020424 R 07086820020708
205
NUT CLAMP TO BRACKET
210
SEAL RING FROM LIQUID TANK TO T-FITTING
215
SEAL RING HOSE TO CONDENSER 14 MM
220
HEAT EXCHANGER , ORDER ADDITIONALLY: A 001 830 93 15 A 344660 F 331440 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE FROM A 344661, F 331441 WITH CODE 805 ALSO INSTALLED ON F 426896
225
PIPE LINE PARTS KIT
230
SPRING HEAT EXCHANGER PIPES
235
SCREW COVER PLATE TO BRACKET
240
LOCK WASHER BRACKET TO STEERING COLUMN END
245
NUT PUMP TO BRACKET
250
SEAL , A 698507 X 012425 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM A 698508, X 012426 WITH CODE 808
255
SEAL PARTS KIT
325
TEMPERATURE SENSOR HEAT EXCHANGER
330
TEMPERATURE SENSOR EVAPORATOR
330
TEMPERATURE SENSOR EVAPORATOR
335
PLUG HOUSING
340
PLUG PIN
345
CLIP BELT LOCK TO SEAT RAIL
