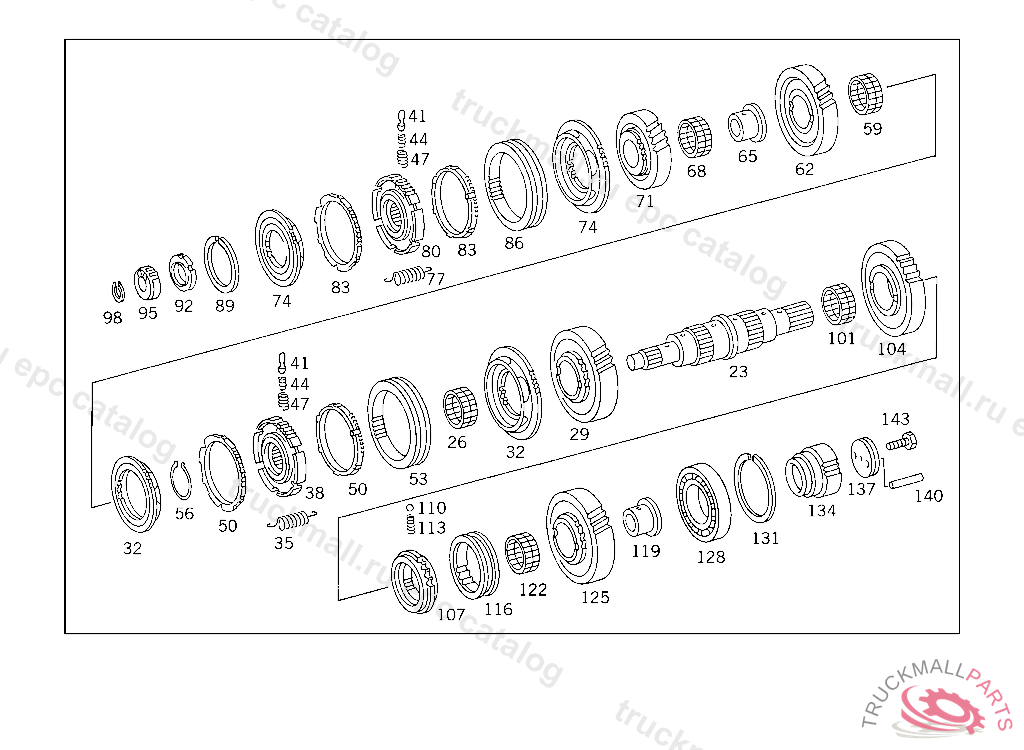

Поз.
Артикул
Описание
23
MAIN SHAFT ,019226
26
NEEDLE BEARING CRAWLER SPEED GEAR
26
NEEDLE BEARING CRAWLER SPEED GEAR
29
GEAR 1ST SPEED
29
GEAR , Replaced By: A0002622511
32
FOLLOWER , Replaced By: A0002620340
32
FOLLOWER 1ST AND 2ND SPEED
38
SYNCHRONIZER BODY 1ST AND 2ND SPEED
38
SYNCHRONIZER BODY , Replaced By: A0002622635, +002A0002621334
41
END PIECE SPLITTER BOX
44
SPRING SPLITTER BOX
47
SPRING SPLITTER BOX
50
SYNCHRONIZER RING 3RD THRU 6TH SPEED TO 336 262 04 35,10/20879180, 50/60880936
50
SYNCHRONIZER RING , Replaced By: A0002626834
50
SYNCHRONIZER RING 1ST THRU 4TH SPEED
53
SLIDING COLLAR 1ST AND 2ND SPEED,10/20879179, 50/60880935
56
LOCK MAINSHAFT, AS REQUIRED 2.40 MM
56
LOCK MAINSHAFT, AS REQUIRED 2.50 MM
59
NEEDLE BEARING 2ND SPEED GEAR
59
NEEDLE BEARING 2ND SPEED GEAR
62
GEAR , Replaced By: A0002621112
62
GEAR 2ND SPEED
65
BUSHING
68
NEEDLE BEARING 3RD SPEED GEAR
68
NEEDLE BEARING 3RD SPEED GEAR
71
GEAR , Replaced By: A0002621513
71
GEAR 3RD SPEED
74
FOLLOWER RING 3RD SPEED
74
FOLLOWER RING , Replaced By: A0002621736
77
SPRING 3RD THRU 6TH SPEED TO 336 262 07 34
80
SYNCHRONIZER BODY , Replaced By: A0002622735, +002A0002621334
80
SYNCHRONIZER BODY 3RD AND 4TH SPEED
83
SYNCHRONIZER RING 3RD THRU 6TH SPEED TO 336 262 04 35,10/20879180, 50/60880936
83
SYNCHRONIZER RING , Replaced By: A0002626834
83
SYNCHRONIZER RING 1ST THRU 4TH SPEED
86
SLIDING COLLAR 1ST THRU 4TH SPEED
86
SLIDING COLLAR , Replaced By: A0002621923
89
SPACER WASHER MAINSHAFT, AS REQUIRED 6.30 MM
89
SPACER WASHER MAINSHAFT, AS REQUIRED 6.60 MM
89
SPACER WASHER MAINSHAFT, AS REQUIRED 5.40 MM
89
SPACER WASHER MAINSHAFT, AS REQUIRED 2.40 MM
89
SPACER WASHER MAINSHAFT, AS REQUIRED 4.20 MM
89
SPACER WASHER MAINSHAFT, AS REQUIRED 3.00 MM
89
SPACER WASHER MAINSHAFT, AS REQUIRED 6.00 MM
89
SPACER WASHER MAINSHAFT, AS REQUIRED 4.50 MM
89
SPACER WASHER MAINSHAFT, AS REQUIRED 5.70 MM
89
SPACER WASHER MAINSHAFT, AS REQUIRED 4.80 MM
89
SPACER WASHER MAINSHAFT, AS REQUIRED 2.70 MM
89
SPACER WASHER MAINSHAFT, AS REQUIRED 3.90 MM
89
SPACER WASHER MAINSHAFT, AS REQUIRED 5.10 MM
89
SPACER WASHER AS REQUIRED 0.30 MM
92
NUT COUNTERSHAFT,FRONT
95
CYLINDR. ROLLER BEARING
98
LOCK RING
101
NEEDLE BEARING CRAWLER SPEED GEAR
101
NEEDLE BEARING CRAWLER SPEED GEAR
101
NEEDLE BEARING , Replaced By: A0059818710
104
GEAR CRAWLER GEAR,019226
107
SYNCHRONIZER HUB REVERSE SPEED AND CRAWLER GEAR,019226
110
BALL P.T.O. SHAFT
113
SPRING
116
SLIDING COLLAR REVERSE SPEED
119
BUSHING REVERSE SPEED GEAR
122
NEEDLE BEARING CRAWLER SPEED GEAR
122
NEEDLE BEARING CRAWLER SPEED GEAR
125
GEAR REVERSE SPEED,019226
128
CYLINDR. ROLLER BEARING
128
CYLINDR. ROLLER BEARING , Replaced By: N005412770009
131
SNAP RING MAIN SHAFT,REAR
134
SUN GEAR
134
GEAR , Replaced By: A0002620609
137
THRUST WASHER MAIN SHAFT,REAR
140
SPACER TUBE MAIN SHAFT,REAR
143
SCREW MAIN SHAFT,REAR
143
SCREW , Replaced By: N000933010087
