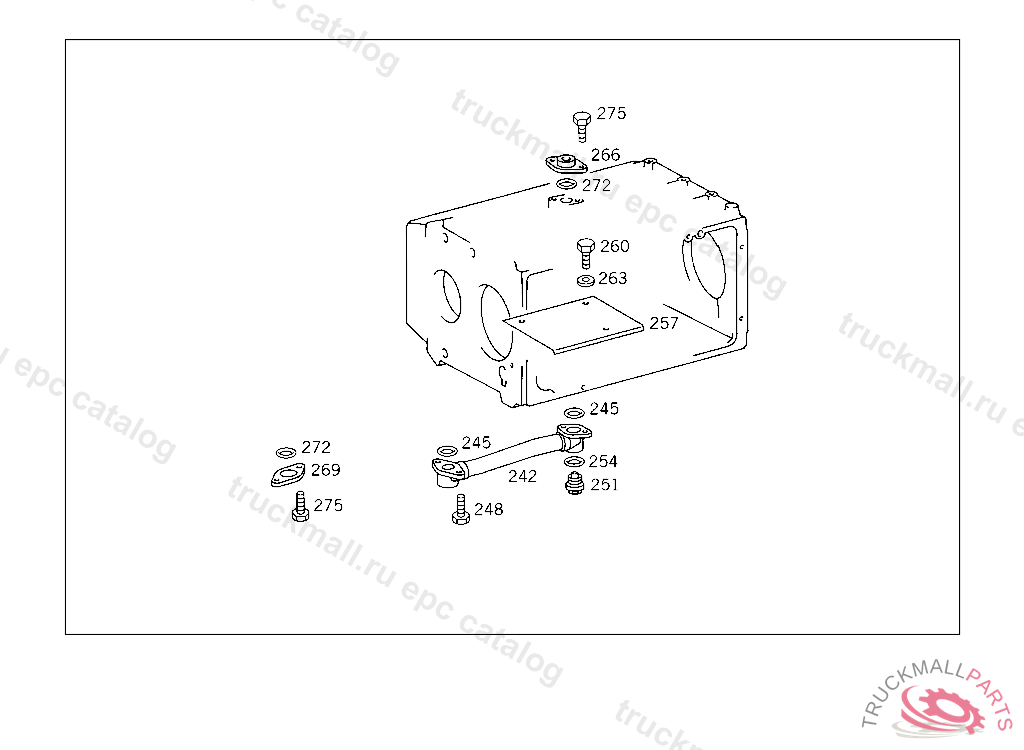

Поз.
Артикул
Описание
242
OIL PIPE (INTAKE PIPE)
242
PIPE (INTAKE PIPE),100815
245
SEAL RING OIL PIPE TO TRANSMISSION CASE
248
SCREW , Replaced By: N304017008021
248
SCREW PIPE CLAMP
251
SCREW PLUG OIL DRAIN
251
SCREW PLUG OIL LINE
251
SCREW PLUG , Replaced By: A0029973630
254
SEALING RING. SEAL RING OIL DRAIN
257
OIL BAFFLE TRANSMISSION CASE
260
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
263
WASHER RADIATOR TO RUBBER MOUNTING
263
WASHER , Replaced By: N000125010532
266
FLANGE HOUSING,BOTTOM
266
FLANGE HEAT EXCHANGER
269
FLANGE TRANSMISSION CASE,BOTTOM
272
SEAL RING OIL LINES TO TRANSMISSION
272
SEAL RING , Replaced By: A0119973448
275
SCREW , Replaced By: N304017008021
275
SCREW PIPE CLAMP
