Поз.
Артикул
Описание

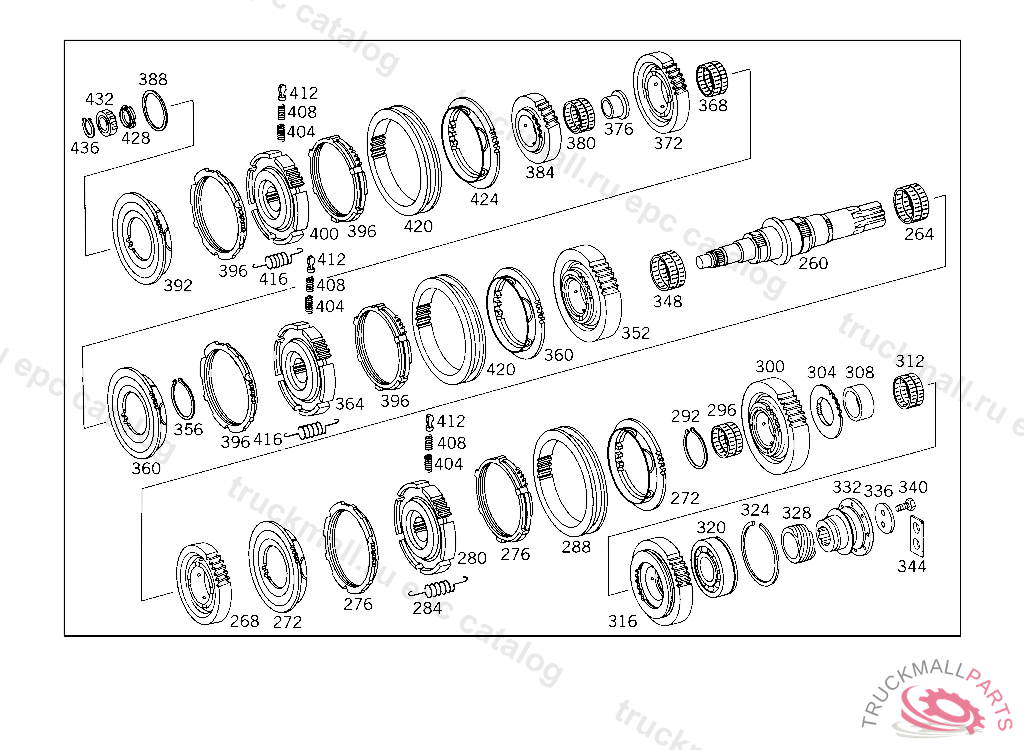

260
MAIN SHAFT , DELIVER ADDITIONALLY:AS RIQUIRED 1X 003 994 14 41-1741,1X 002 994 87 41-8841,1X 001 994 88 41 WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
260
MAIN SHAFT , ON AK 6-90 FROM TRANSMISSION 190790,ON AK 6-80 FROM TRANSMISSION 327509
260
MAIN SHAFT , DELIVER ADDITIONALLY:AS RIQUIRED 1 X 003 994 14 41 - 17 41,1 X 002 994 87 41 - 88 41,1 X 001 994 88 41, Replaced By: A0002622405
264
NEEDLE BEARING , Replaced By: A0139819210
264
NEEDLE BEARING , Replaced By: A0139819210
268
GEAR 2ND SPEED
272
FOLLOWER 1ST AND 2ND SPEED
276
SYNCHRONIZER RING
276
SYNCHRONIZER RING 1ST AND 2ND SPEED TO 000 262 29 35
276
SYNCHRONIZER RING 1ST AND 2ND SPEED TO 336 262 02 35,10/20879180, 50/60880936
280
SYNCHRONIZER BODY 1ST AND 2ND SPEED
284
SPRING 1ST AND 2ND SPEED
288
SLIDING COLLAR 1ST AND 2ND SPEED
292
LOCK AS REQUIRED 2.90 MM
292
LOCK AS REQUIRED 2.80 MM
292
LOCK RING , Replaced By: A3872624373
296
NEEDLE BEARING
296
NEEDLE BEARING
296
NEEDLE BEARING
300
GEAR 1ST SPEED
304
FOLLOWER RING REVERSE SPEED
308
BUSHING , 350.004,013 UP TO CHASSIS 12 357727,FROM CHASSIS SEE SPARE PARTS LIST 718
308
BUSHING REVERSE SPEED
312
NEEDLE BEARING REVERSE SPEED GEAR
316
GEAR REVERSE SPEED
320
BALL BEARING , Replaced By: N000625536314
324
SNAP RING MAIN SHAFT,REAR
328
DRIVE GEAR SPEEDOMETER DRIVE, L.H. TURN,10/50 792024, 20/60 766368
332
FLANGE MAIN SHAFT OUTPUT
336
THRUST WASHER , 350.004,013 UP TO CHASSIS 12 357727,FROM CHASSIS SEE SPARE PARTS LIST 718
336
THRUST WASHER. SEAL RING DRIVEN FLANGE TO DRIVE SHAFT, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
340
SCREW , Replaced By: N304017012020
344
LOCK
344
LOCK , Replaced By: A3859941032
348
NEEDLE BEARING , Replaced By: A0129815910
348
NEEDLE BEARING , Replaced By: A0129815910
348
NEEDLE BEARING , Replaced By: A0129815910
352
GEAR 3RD SPEED
356
LOCK , Replaced By: A3872626173
356
LOCK RING , Replaced By: A3872626373
356
LOCK AS REQUIRED 2.30 MM,10/20879180, 50/60880936
360
FOLLOWER 1ST AND 2ND SPEED
364
SYNCHRONIZER BODY 3RD AND 4TH SPEED,10/20879180, 50/60880936
368
NEEDLE BEARING , Replaced By: A0139819110
368
NEEDLE BEARING , Replaced By: A0139819110
372
GEAR 4TH SPEED
376
BUSHING 5TH SPEED GEAR
380
NEEDLE BEARING
384
GEAR 5TH SPEED
388
SPACER RING , Replaced By: A0002620951
388
SPACER RING AS REQUIRED 5.50 MM
388
SPACER RING AS REQUIRED 4.90 MM
388
SPACER RING , Replaced By: A0002621151
388
SPACER RING AS REQUIRED 5.80 MM
388
SPACER RING , Replaced By: A0002620451
388
SPACER RING AS REQUIRED 4.00 MM,10/20879180, 50/60880936
388
SPACER WASHER , Replaced By: A0002621351
388
SPACER WASHER4.90 MM
388
SPACER WASHER , Replaced By: A0002621051
388
SPACER WASHER4.30 MM
388
SPACER WASHER , Replaced By: A0002620251
388
SPACER WASHER , Replaced By: A0002620351
388
SPACER WASHER , Replaced By: A0002621551
388
SPACER WASHER , Replaced By: A0002621651
388
SPACER RING AS REQUIRED 4.80 MM,10/20879180, 50/60880936
392
FOLLOWER , Replaced By: A0002621740
392
FOLLOWER
396
SYNCHRONIZER RING 1ST THRU 4TH SPEED
396
SYNCHRONIZER RING , Replaced By: A0002626834
396
SYNCHRONIZER RING 3RD THRU 6TH SPEED TO 336 262 04 35,10/20879180, 50/60880936
400
SYNCHRONIZER BODY 5TH AND 6TH SPEED,10/20879180, 50/60880936
404
SPRING SPLITTER BOX
408
SPRING SPLITTER BOX
412
END PIECE SPLITTER BOX
416
SPRING 3RD THRU 6TH SPEED TO 336 262 07 34
420
SLIDING COLLAR 1ST THRU 4TH SPEED
424
FOLLOWER 5TH AND 6TH SPEED
428
NUTTO 343 262 01 05,000 262 14 05, ON AK 6-90 FROM TRANSMISSION 190789,ON AK 6-80 FROM TRANSMISSION 327508
432
CYLINDR. ROLLER BEARING MAIN SHAFT,FRONT
436
LOCK RING P.T.O.
999
COVER SHIFTING ROD, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
999
FLANGE MAIN SHAFT OUTPUT
999
GEAR 45 TEETH
999
OIL BAFFLE
999
SLIDE SHIFTING SHAFT,324104
999
OIL PIPE
999
HOUSING , Replaced By: A0002646202, +001A0002646310
999
TAPERED ROLLER BEARING
999
PLUG , Replaced By: A0009973435
999
PLUG , Replaced By: A3529970032
999
LOCK , Replaced By: N900055045300
999
CYLINDR. ROLLER BEARING , Replaced By: N005412770009
999
LOCK AS REQUIRED 2.40 MM,24243
999
LOCK AS REQUIRED 2.30 MM,24243
999
LOCK AS REQUIRED 45X2.45 MM
999
LOCK AS REQUIRED 45X2.35 MM
999
LOCK AS REQUIRED 45X2.25 MM
999
LOCK AS REQUIRED 2.20 MM,24243
999
SLIDING COLLAR , Replaced By: A0002621923
999
OIL BAFFLE (OIL BAFFLE)
999
COVER , Replaced By: A0009977535
999
CLAMPING SCREW
999
CLAMPING SCREW
999
CLAMPING SCREW
999
REPAIR KIT
999
TRANSMISSION
999
TRANSMISSION , Replaced By: A3512601800
999
COTTER PIN
999
EXPANSION PLUG
