5 S-90 GP+N 70/1 C
719.830
26 TRANSMISSION

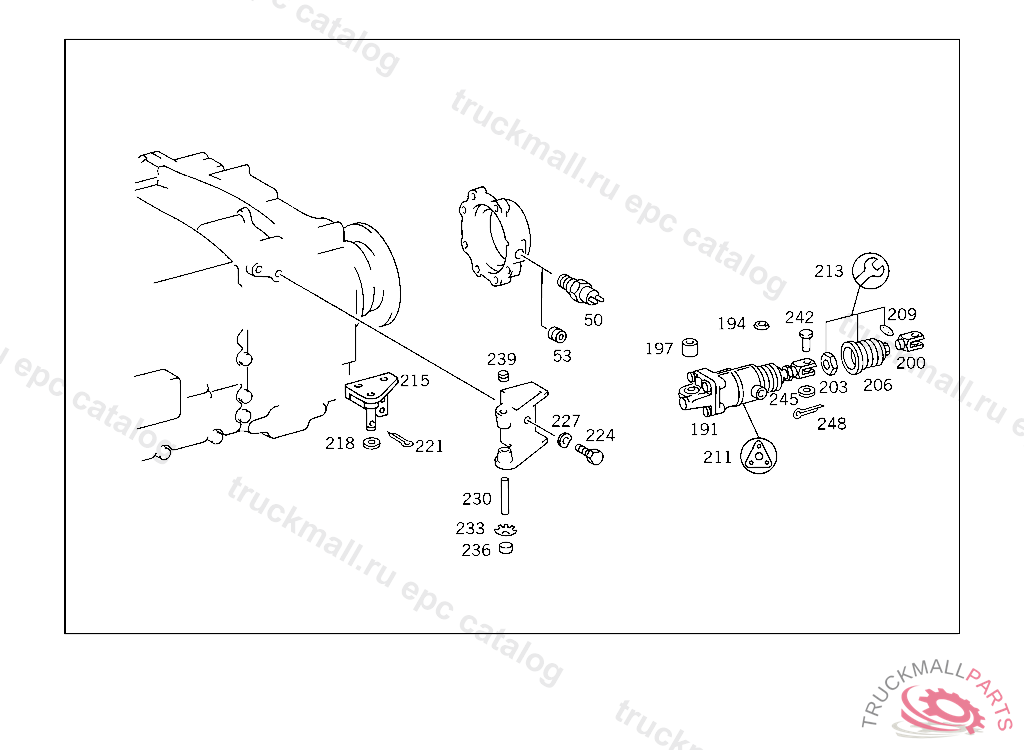

400 SHIFT VALVES,SWITCHES,COMPRESSED AIR LINES IL. 3

Mercedes A0005867726 - Р.к. Wabco (422.010.011.2+4)

5 S-90 GP+N 70/1 C 719.830

26 TRANSMISSION - 400 SHIFT VALVES,SWITCHES,COMPRESSED AIR LINES IL. 3

Поз.
Артикул
Описание
50
A0035426617
SENDER UNIT , Replaced By: A0145427117
50
A0145427117
SENDER UNIT LIMITATION OF ENGINE SPEED,131010
191
A0002603363
SHIFTING CYLINDER PLANETARY GEAR CLUSTER TO TRANSMISSION HUNGER
191
A0002601763
SHIFTING CYLINDER , Replaced By: A0002603563
191
A0002601863
SHIFTING CYLINDER , Replaced By: A0002603563
191
A0002603563
SHIFTING CYLINDER , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0002604763
191
A0002603763
SHIFTING CYLINDER , Replaced By: A0002603563
191
A0002603963
SHIFTING CYLINDER ,131098,5 S 110 GPA131454,5 K 110 GPA, Replaced By: A0002604663
191
A0002604663
SHIFTING CYLINDER ADDITIONAL GEAR CLUSTER WESTINGHOUSE
191
A0002604763
SHIFTING CYLINDER PLANETARY GEAR CLUSTER TO TRANSMISSION WESTINGHOUSE
194
A0002681757
COVER
197
A0002684950
BUSHING SHIFTING CYLINDER
197
A0002682650
BUSHING , Replaced By: A0002684950
197
A0002683150
BUSHING , Replaced By: A0002682650
200
A0009962301
YOKE SHIFTING CYLINDER
203
N000936014010
NUT , Replaced By: N308675014000
203
N308675014000
NUT , Replaced By: N308675014002
203
N308675014002
NUT RELEASE BEARING LUBRICATION
206
A0002640796
BOOT SHIFTING CYLINDER
206
A0002640196
BOOT , Replaced By: A0002640596
206
A0002640596
BOOT , Replaced By: A0002640796
209
A0002640192
STRAINER SHIFTING CYLINDER
211
A0002600268
REPAIR KIT , Replaced By: A0002603968
211
A0002603968
GASKET KIT SHIFTING CYLINDER
213
A0015861726
REPAIR KIT SHIFTING CYLINDER HUNGER,279826
213
A0005860026
REPAIR KIT SHIFTING CYLINDER WABCO
213
A0005867726
REPAIR KIT SHIFTING CYLINDER TO 000 260 39 63,003529,5 S 90 GPA001872,5 K 90 GPA
215
A0002650436
BRACKET SHIFTING CYLINDER,LEFT
215
A0002650336
BRACKET SHIFTING CYLINDER,LEFT
215
A0002670140
BRACKET , Replaced By: A0002670440, +001N000443012001, +001N000906016002
215
A0002670440
BRACKET , Replaced By: A0002650436, +001N000094004046, +001N000125015013, +003N000933010105
218
N000125015013
WASHER , Replaced By: N000125015019
218
N000125015019
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
221
N000094004051
COTTER PIN STRAP TO SUPPORT
224
N304017010019
SCREW CLAMP TO EXHAUST PIPE
224
N000933010145
SCREW REAR EXHAUST PIPE TO MUFFLER
224
N000933010105
SCREW END PIECE TO EXHAUST PIPE M 10X25
227
N000137010201
SPRING WASHER STEERING COLUMN BRACKET TO CAB
230
A0009913460
DOWEL PIN SHIFTING CYLINDER TO BRACKET TO 000 267 01 40,04 40,
233
A0002670073
LOCK SHIFTING CYLINDER TO BRACKET TO 000 267 01 40,004509
236
N000443012001
EXPANSION PLUG TRANSMISSION CASE,SIDE
239
N000906016002
SCREW PLUG
242
N001434012004
PIN SHIFTING CYLINDER, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
245
N000125013008
WASHER
248
N000094004051
COTTER PIN STRAP TO SUPPORT
