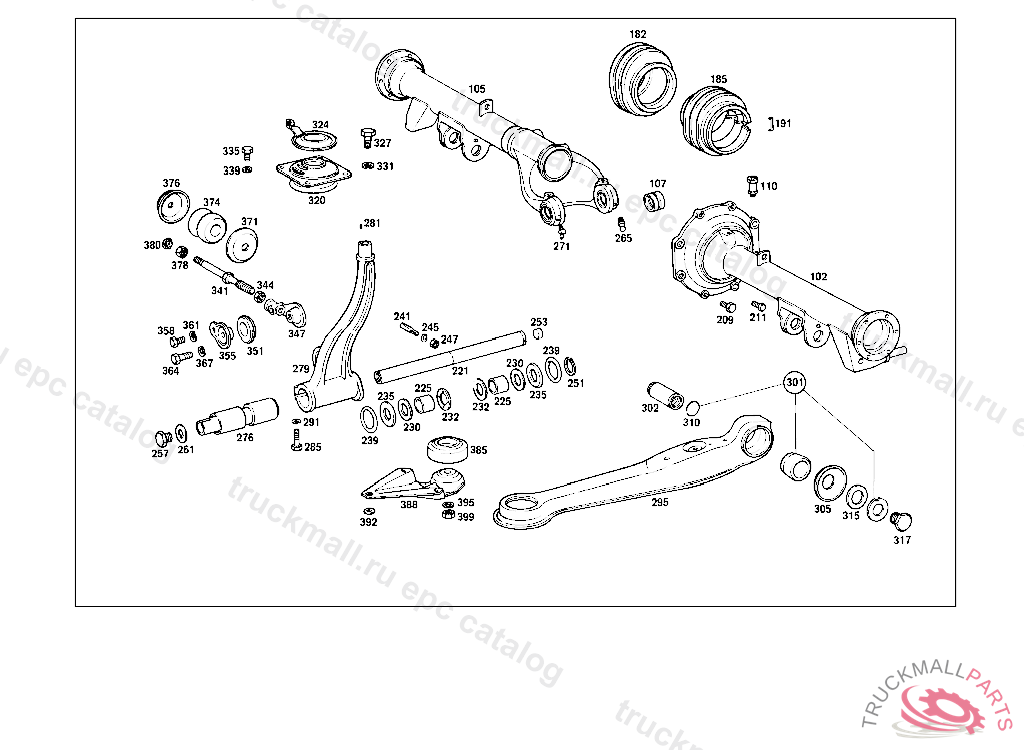

Поз.
Артикул
Описание
102
REAR AXLE TUBE LEFT
105
REAR AXLE TUBE RIGHT
107
BUSHING
110
VALVE
182
BOOT
185
BOOT SPLIT
191
CLIPTO 343 357 00 22
209
SCREW BRACKET TO SIDE MEMBER
211
SCREW , Replaced By: N304017008021
211
SCREW PIPE CLAMP
221
PIN , 000,001,100,101 FROM REAR AXLE 000287, 010 FROM REAR AXLE 129303, 110 FROM REAR AXLE 087840
225
SPACER TUBE
230
SPACER WASHER 2.0 MM
232
SPACER WASHER 2.0 MM
232
SPACER WASHER , Replaced By: A1803511452
235
SPACER RING
239
RUBBER RING
241
PIN
245
LOCK WASHER
247
NUT , Replaced By: N304032008006
247
NUT
251
LOCK
253
EXPANSION PLUG
257
SCREW PLUG
261
LOCK
265
GREASE NIPPLE LOCK ANGLE SENSOR
271
GREASE NIPPLE
276
RUBBER MOUNTING , 000,001,100,101 FROM REAR AXLE 000287, 010 FROM REAR AXLE 129303, 110 FROM REAR AXLE 087840
279
SUPPORT
281
GROOVED PIN
285
SCREW
291
LOCK WASHER COMPRESSED AIR LINE TO BRACKET
295
THRUST ARM LEFT
301
REPAIR KIT
302
PIVOT PIN
305
WASHER
310
SNAP RING
315
SPACER RING
317
SCREW
327
SCREW PISTON ON TRAILING AXLE
331
LOCK WASHER
335
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
339
LOCK WASHER COMPRESSED AIR LINE TO BRACKET
341
ROD
344
NUT , Replaced By: N308673014001
344
NUT BRACKET TO SIDE MEMBER,K 035196
347
BRACKET
351
RUBBER MOUNTING
355
BRACKET
358
SCREW , Replaced By: N304017010028
358
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
361
SPRING WASHER STEERING COLUMN BRACKET TO CAB
364
SCREW
367
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
367
SPRING WASHER CAB FLOOR
371
CUP
374
RUBBER BUFFER
376
CUP
378
NUT , Replaced By: N308673012002
378
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
380
NUT
385
RUBBER MOUNTING
388
MOUNTING PLATE
392
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
395
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
399
NUT , Replaced By: N308673014001
399
NUT BRACKET TO SIDE MEMBER,K 035196
999
TAPERED ROLLER BEARING
999
TAPERED ROLLER BEARING
999
BARREL-TYPE BEARING
999
SEAL RING
999
BRACKET LEFT
999
BRACKET RIGHT
999
DIFFERENTIAL PINION , NO LONGER AVAILABLE
999
FLANGE
999
AXLE HOUSING , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
JOINT , Replaced By: A1103500413, +001A1109970032
999
THRUST ARM RIGHT
999
RUBBER MOUNTING
999
SIDE GEAR , NO LONGER AVAILABLE
999
DIFFERENTIAL CASE , NO LONGER AVAILABLE
999
REAR AXLE SHAFT RIGHT, 000,001,100,101 FROM REAR AXLE 002173, 010 FROM REAR AXLE 216044, 110 FROM REAR AXLE 252542
999
JOINT , ON TYPE 200 UP TO CHASSIS 146361, ON TYPE 200 D UP TO CHASSIS 254145, ON TYPE 230 UP TO CHASSIS 007969
999
REAR AXLE , Replaced By: A1103500203
999
LOCK
999
SCREW
999
UNIVERSAL JOINT , 000,001,100,101 FROM REAR AXLE 001287, 010 FROM REAR AXLE 190028, 110 FROM REAR AXLE 201640, Replaced By: A1123500128, +001A1109970032
999
RUBBER MOUNTING
999
PAD
999
THRUST WASHER 1.7 MM
999
THRUST WASHER AS REQUIRED 1.6 MM
999
THRUST WASHER AS REQUIRED 1,5 MM
999
THRUST WASHER AS REQUIRED 1,4 MM
999
SPACER WASHER 1.9 MM
999
SPACER WASHER 2.0 MM
999
SPACER WASHER 2.1 MM
999
SPACER WASHER 2.2 MM
999
SPACER WASHER 0.90 MM
999
SPACER WASHER 1.00 MM
999
SPACER WASHER 1.10 MM
999
SPACER WASHER 1.20 MM
999
SPACER WASHER 1.30 MM
999
SPACER WASHER 1.40 MM
999
SPACER WASHER 1.50 MM
999
SPACER WASHER 1.7 MM
999
SPACER WASHER 2.1 MM
999
SPACER WASHER 2.2 MM
999
SPACER WASHER 2.3 MM
999
SPACER WASHER 2.4 MM
999
SPACER WASHER 2.5 MM
999
SPACER WASHER 3.0 MM
999
LOCK
999
LOCK
999
LOCK
999
LOCK
999
THRUST WASHER , Replaced By: A1153531062
999
THRUST WASHER , Replaced By: A1153530962
999
THRUST WASHER , Replaced By: A1153530862
999
SPACER WASHER 1.1 MM
999
SPACER WASHER 1.2 MM
999
SPACER WASHER 1.3 MM
999
SPACER WASHER 1.4 MM
999
SPACER WASHER 1.5 MM
999
SPACER WASHER 1.6 MM
999
SPACER WASHER 1.7 MM
999
SPACER WASHER 1.8 MM
999
SPACER WASHER 1.9 MM
999
SPACER WASHER 2.0 MM
999
SNAP RING 2.25 MM, 000,001,100,101 FROM REAR AXLE 001287, 010 FROM REAR AXLE 190028, 110 FROM REAR AXLE 201640
999
SNAP RING 2.35 MM, 000,001,100,101 FROM REAR AXLE 001287, 010 FROM REAR AXLE 190028, 110 FROM REAR AXLE 201640
999
SNAP RING 2.45 MM, 000,001,100,101 FROM REAR AXLE 001287, 010 FROM REAR AXLE 190028, 110 FROM REAR AXLE 201640
999
SNAP RING 2.55 MM, 000,001,100,101 FROM REAR AXLE 001287, 010 FROM REAR AXLE 190028, 110 FROM REAR AXLE 201640
999
WASHER MOUNTING PLATE TO BODY FLOOR
999
LOCK WASHER TAIL LAMP TO BRACKET
999
LOCK RING SHACKLE TO BEARING BRACKET,965965
999
SCREW , Replaced By: N304017008021
999
NUT , Replaced By: N304032008006
999
CLAMP REAR AXLE TUBE
999
CLAMP REAR AXLE HOUSING
