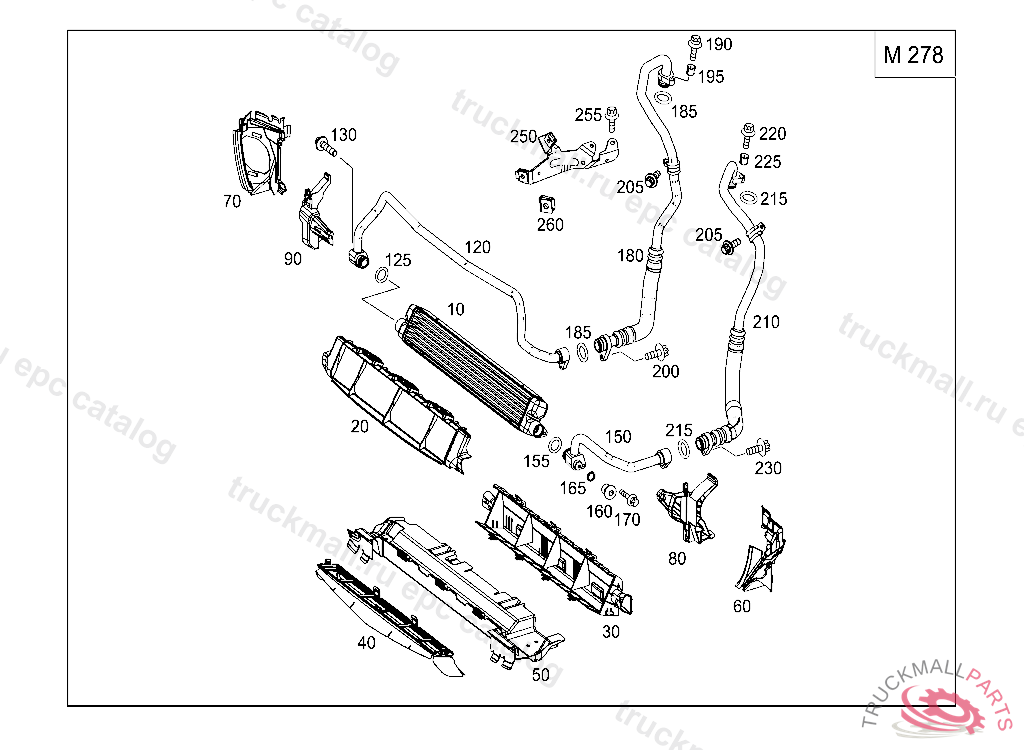

Поз.
Артикул
Описание
10
OIL COOLER FRONT
10
OIL COOLER ENGINE OIL, A 20140121
20
AIR DUCT OIL COOLER AT FRONT
30
AIR DUCT OIL COOLER AT REAR
40
COVER FOR AIR INTAKE OIL COOLER BOTTOM
40
AIR DUCT SEGMENT OIL COOLER BOTTOM, A 03387320111031
50
COVER FOR AIR INTAKE BOTTOM
60
COVER FOR AIR INTAKE LEFT
60
COVER FOR AIR INTAKE LEFT
70
COVER FOR AIR INTAKE RIGHT
70
COVER FOR AIR INTAKE RIGHT
80
PLUG CONNECTOR HOUSING LEFT
90
PLUG CONNECTOR HOUSING RIGHT
120
OIL LINE RIGHT RETURN LINE
125
SEAL RING OIL LINE TO OIL FILTER
130
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
150
OIL LINE FEED LINE,LEFT
155
SEAL RING OIL LINE TO OIL FILTER
160
SCREW PLUG, FILLING. SCREW PLUG TRANSMISSION CASE REAR COVER
165
SEAL RINGTO 001 431 72 14
170
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 6X35
180
OIL LINE FROM CONNECTING POINT TO OIL FILTER HOUSING, A 20130629, Replaced By: A2125001772
180
OIL LINE FROM CONNECTING POINT TO OIL FILTER HOUSING, A 20130629
185
SEAL RING OIL LINE TO OIL FILTER
190
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
195
PILOT BUSHING OIL LINE
200
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
205
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
210
OIL LINE FROM OIL FILTER HOUSING TO SEPARATING POINT, A 20130629, Replaced By: A2125001672
210
OIL LINE FROM OIL FILTER HOUSING TO SEPARATING POINT, A 20130629
215
SEAL RING OIL LINE TO OIL FILTER
220
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
225
PILOT BUSHING OIL LINE
230
HEXALOBULAR BOLT DELIVERY LINE TO PUMP M6X25
250
BRACKET OIL LINE ATTACHMENT
255
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
260
NUT RETAINER. LOCK LEFT AND RIGHT SPOILER AT CENTER PIECE
