Mercedes N910001004105 - Клипса

190 E 2.6 AUSTRALIA 201.029 FROM 09/88

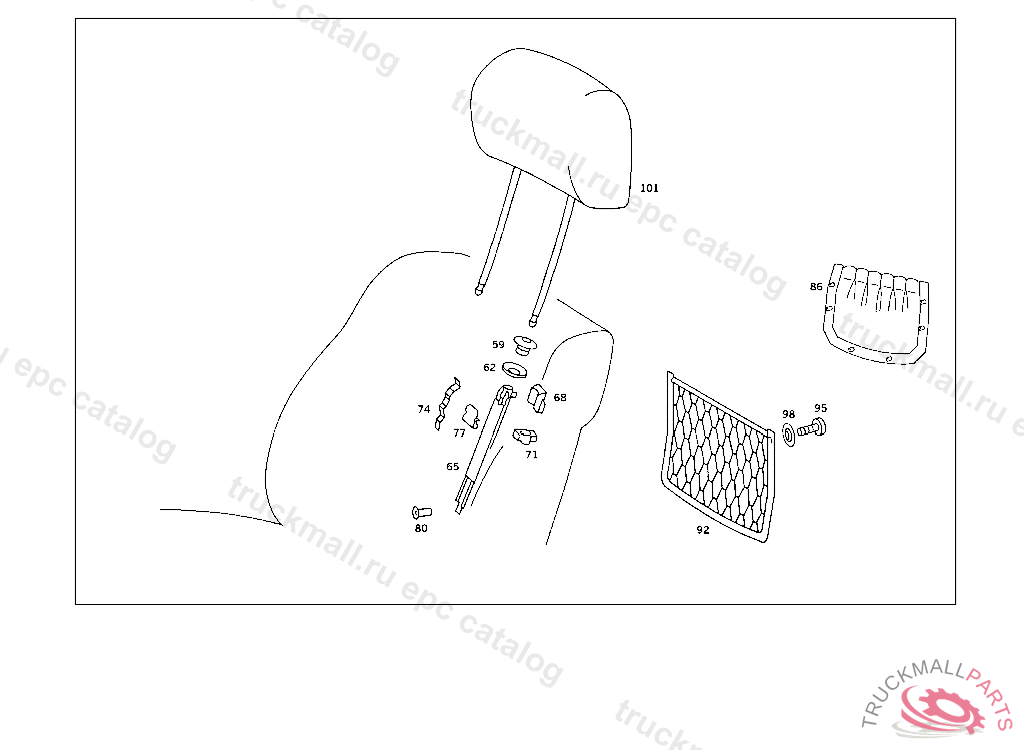

91 FRONT SEATS - 030 FRONT SEAT,LUGGAGE NET,AND HEADREST IL. 2

Поз.
Артикул
Описание
59
A1269880082
EYE
62
A1269901240
WASHER STRAP TO REAR BACKREST
65
A1079700115
RAIL LEFT
65
A1079700215
RAIL RIGHT, HEADREST
68
A1159750024
SLIDE
71
A1159750023
FRICTION PIECE TOP
74
A1249750137
SPRING QUIDE RAIL,LEFT
77
A1159880478
CLIP
80
N910001004105
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
86
A2018100249
POCKET USED WITH SOFT LEATHER TRIM,NO.9084I NO.5098I NO.8478I NO.8479I NO.8480I NO.6152I NO.3132I NO.7212I I
92
A2018100049
LUGGAGE NET FRONT SEAT BACKREST,REAR
95
A0019848529
SCREW
95
A2019901636
SCREW , Replaced By: A0019848529
98
A1129900042
WASHER , Replaced By: A3019900042
98
A3019900042
WASHER
101
A1269707050
HEADREST , B 691846 F 214988 NO.9A84I NO.5A98I NO.8E78I .......I NO.8E80I .......I .......I NO.7C12I
101
A2019702950
HEADREST FABRIC,NO.9079I NO.5093I NO.8471I NO.8467I NO.8463I NO.6147I NO.3126I NO.7206I
101
A1269705850
HEADREST
101
A1269705450
HEADREST
101
A1249709250
HEADREST , FROM CHASSIS NEW EQUIPMENT 7/93NO.9A84I NO.5A98I NO.8E78I .......I NO.8F33I .......I .......I NO.7C12I I
