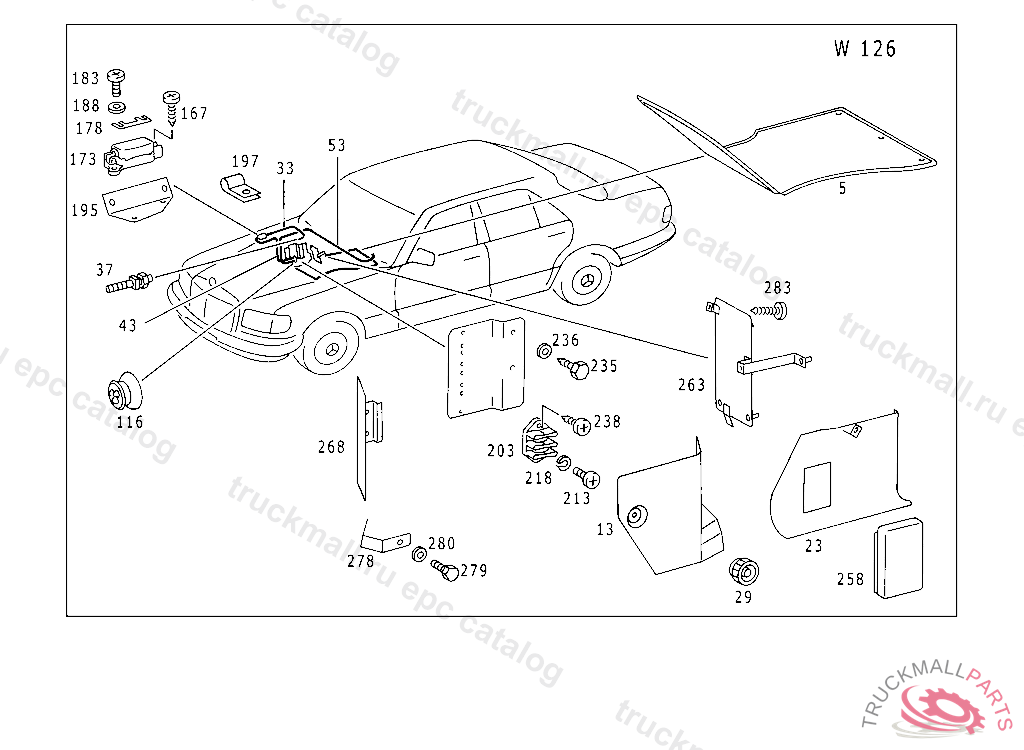

Поз.
Артикул
Описание
5
LINING RIGHT FRONT FLOOR
5
LINING RIGHT FRONT FLOOR
13
PANELLING FRONT PANEL,LATERAL RIGHT
23
PANELLING FRONT PANEL,LATERAL RIGHT
23
PANELLING FRONT PANEL, LATERAL LEFT, TO BE ADAPTED DURING ASSEMBLY
29
NUT
33
ELECTRIC CABLE FROM BATTERY TO MAIN FUSE
37
PIN BATTERY POS. POLE
43
ELECTRIC CABLE FROM MAIN FUSE TO DISTRIBUTOR
53
ELECTRIC CABLE FROM INSTRUMENT PANEL TO DISTRIBUTOR TERMINAL
116
GROMMET ELECTRIC CABLE THRU FIRE WALL
167
SHEET METAL SCREW RELAY TO APPARATUS SUPPORT,K 182153K 239549
167
SHEET METAL SCREW BRACKET TO CAB FLOOR
167
SHEET METAL SCREW
173
FUSE BOX PRE-GLOW SYSTEM 50 A
178
FUSE30A
178
FUSE50 A
183
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
183
COMBINATION BOLT FUSE IN FUSE BOX
188
LOCK WASHER PLUG SOCKET TO REAR CROSS MEMBER
195
BRACKET FUSE BOX
195
BRACKET FUSE BOX
197
CLAMP ELECTRIC CABLE TO FRONT SEAT
203
CABLE CONNECTOR , FROM CHASSIS:108.016 050831 108.018 053598 108.019 054235
213
SCREW FUSE BOX TO SIDE MEMBER,5 097182
213
SCREW ELECTRIC CABLE TO FUSE BOX
213
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
213
SCREW , Replaced By: N000000001933
218
LOCK WASHER PLUG SOCKET TO REAR CROSS MEMBER
218
LOCK WASHER T-FITTING TO BRACKET
235
SHEET METAL SCREW , ONLY FOR MODELS 123.020,023,043,083
235
SHEET METAL SCREW BRACKET TO CAB FLOOR
236
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
238
SHEET METAL SCREW CABLE CONNECTOR TO RIGHT WHEEL ARCH PANEL
238
SHEET METAL SCREW MODULE TO HOUSING
238
SHEET METAL SCREW , Replaced By: N000000000453
258
COVERING ADDITIONAL FUSE
263
PLATE AMPLIFIER
268
BRACKET FUSE BOX
278
BRACKET FRONT RIGHT PANELLING
279
SCREW CONNECTOR TO CAB M6X8
280
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
283
SHEET METAL SCREW BRACKET TO CAB FLOOR
