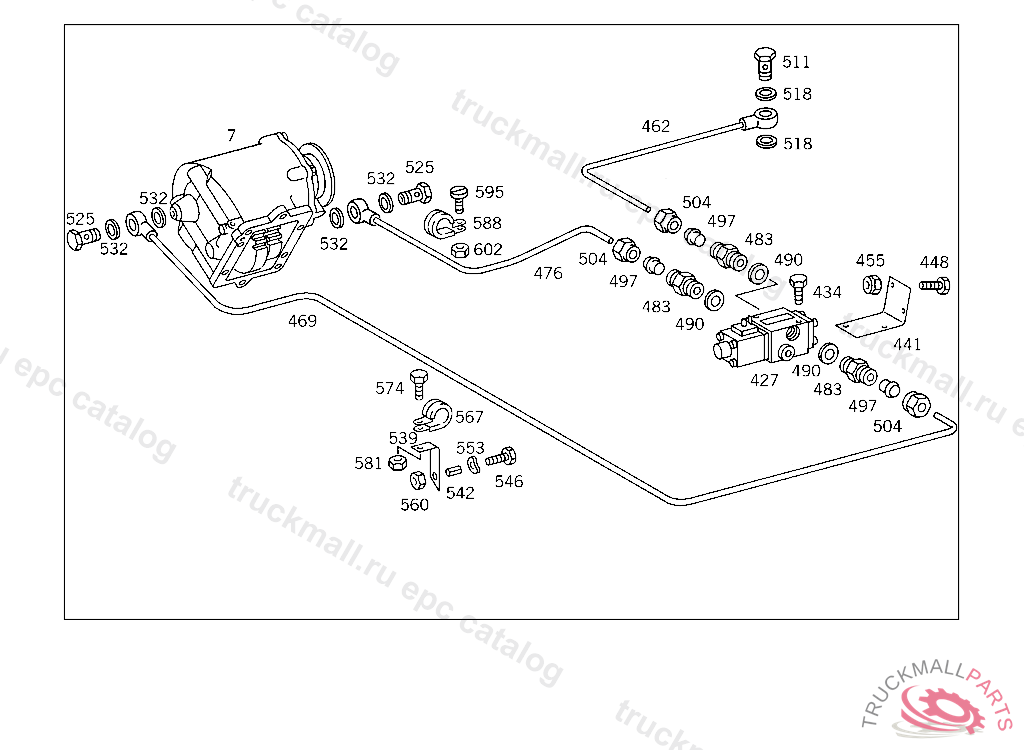

Поз.
Артикул
Описание
7
P.T.O.
7
P.T.O.
7
P.T.O.
427
VALVE 3/2-WAY
427
VALVE , Replaced By: A0002702989
427
VALVE , Replaced By: A0002700889
434
SCREW COVERING M 5X60
441
BRACKET 3/2-WAY VALVE
448
SCREW PIPE CLAMP
448
SCREW , Replaced By: N304017008021
455
NUT , Replaced By: N913004008001
455
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
462
OIL PIPE FROM 3/2-WAY VALVE TO TRANSMISSION
462
LINE , Replaced By: A3182741485
462
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 476633, Replaced By: A3182701996
469
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 476633, Replaced By: A3182702096
469
LINE FROM 3/2-WAY VALVE TO P.T.O.
476
LINE FROM 3/2-WAY VALVE TO P.T.O.
476
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 476633, Replaced By: A3182702196
483
FITTING TRANSMISSION CONNECTION
490
SEAL RINGTO 000 270 08 89,16 89,25 89
497
GLAND LINE CONNECTION
504
UNION NUT LINE CONNECTION
511
HOLLOW SCREW FUEL LEAK
518
SEAL RING SCREW PLUG
525
HOLLOW SCREW HEATING CONNECTION
532
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
539
BRACKET CABLE TO TRANSMISSION
542
CLAMPING SLEEVE SHACKLE TO TORSION BAR
546
SCREW PIPE CLAMP
546
SCREW , Replaced By: N304017008021
553
SPRING WASHER , Replaced By: N000137008212
553
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
560
NUT
567
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
567
CLAMP LINE MOUNTING
567
CLAMP ,K 147121, Replaced By: N000000000319
574
SCREW , Replaced By: N304017006016
574
SCREW STEERING COLUMN PANELLING M 5X12
574
SCREW PUMP TO BRACKET
581
NUT PUMP TO BRACKET
581
NUT TACHOGRAPH TO BRACKET
581
NUT , Replaced By: N913004006001
588
CLAMP LINE MOUNTING
595
SCREW STEERING COLUMN PANELLING M 5X12
602
NUT TACHOGRAPH TO BRACKET
999
VALVE REPAIR KIT TO 000 270 29 89
999
VALVE , Replaced By: A0022601757
999
MAGNETTO 000 270 29 89
