Mercedes A1154710079 - УПЛОТНЕНИЕ

190 E 2.6 AUSTRALIA 201.029 TO 09/88

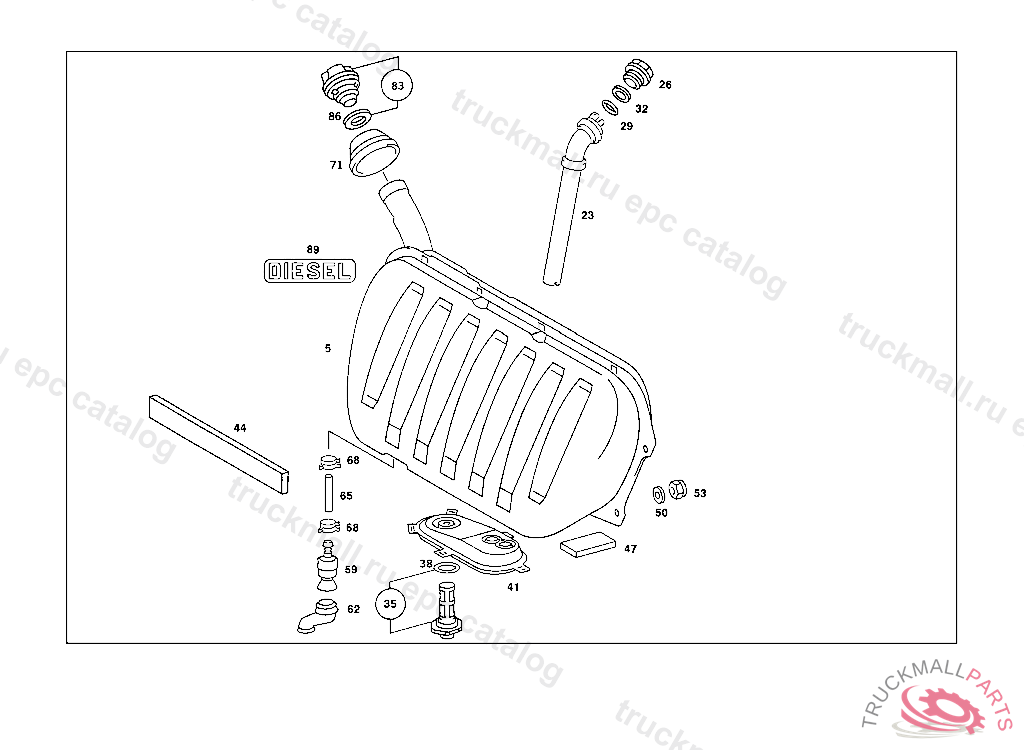

47 FUEL SYSTEM - 015 FUEL TANK WITH ATTACHMENT PARTS

Поз.
Артикул
Описание
5
A2014700801
FUEL TANK
23
A2015420304
GAUGE SENDER UNIT
23
A2015420104
GAUGE SENDER UNIT , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO IDENT NO. A390617 F390242, Replaced By: A2015420304
26
A2014710521
FLANGE
29
A0109978148
SEAL RING
32
A0109978048
SEAL RING
35
A2014700506
FUEL STRAINER PARTS KIT
38
A1109970145
SEAL RING
41
A2014710581
BOOT
44
A2014750120
PAD , Replaced By: A1234750120
44
A1234750120
PAD FUEL TANK,FRONT SIDE, 020 008805 023 010290 026 002881 120 012502 123 005628 126 006101 130 009362
47
A1264750020
PAD FUEL TANK BOTTOM SIDE
50
A1089900340
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
53
N913002008004
NUT SWITCH TO FLOOR PLATE
71
A2019971381
GROMMET
83
A1244700005
FILLER CAP , Replaced By: A0004700730
83
A0004716330
FILLER CAP , Replaced By: A1244700005
83
A0004717430
FILLER CAP , Replaced By: A1244700005
86
A1154710079
SEAL RING
