Mercedes N910105008005 - БОЛТ М8

MD 3060 PR ( ATEGO ) 723.635

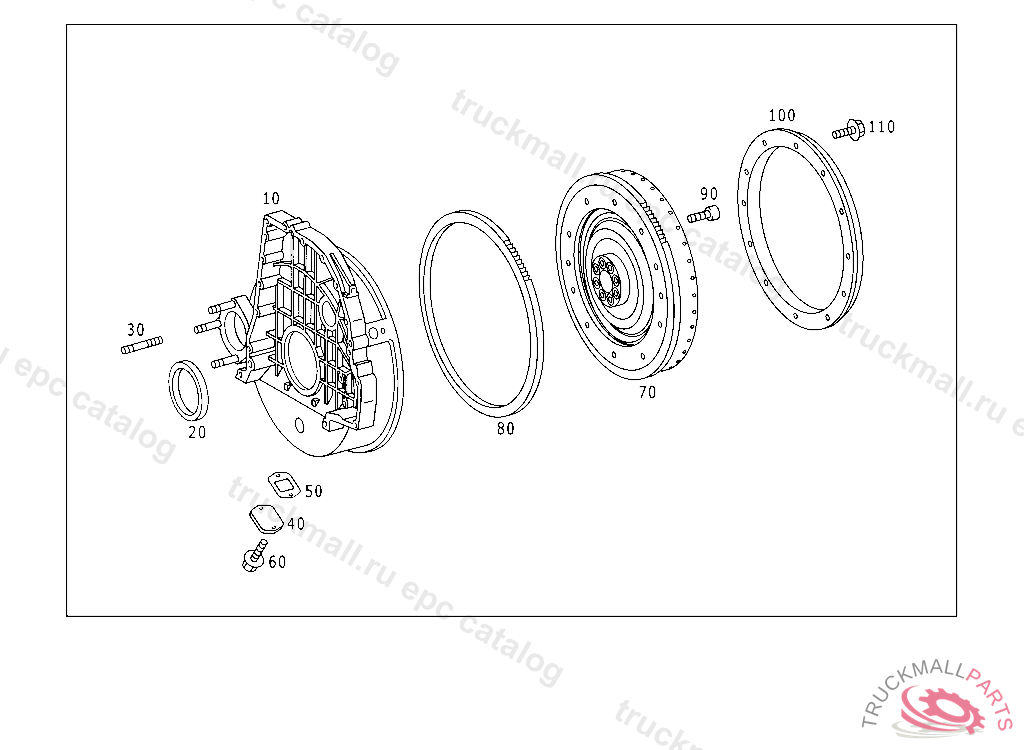

27 ALLISON AUTOMATIC TRANSMISSION - 001 AUTO TRANSMISSION ATTACHMENT PARTS,ENGINE SECTION

Поз.
Артикул
Описание
10
A9060100833
TIMING CASE FLYWHEEL HOUSING
10
A9060102233
TIMING CASE FLYWHEEL HOUSING
20
A0219975347
SEAL RING
30
N000835010124
STUD. SCREW GROUND CONNECTION
40
A4030150109
COVER TIMING CASE
50
A4420150380
GASKET T.D.C. SENDER UNIT TO BRACKET,396842
60
N910105008005
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
70
A9060300759
FLYWHEEL WITH RING GEAR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
70
A9060300859
FLYWHEEL CARRIER WITH RING GEAR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
80
A3660320105
RING GEAR , TAPPED HOLES TO BE MADE ONLY AFTER PART HAS BEEN FITTED
90
A9060320171
CAP BOLT W FLANGE RING GEAR CARRIER AND CRANKSHAFT GEAR TO CRANKSHAFT
100
A9572570051
SPACER RING (INTERMEDIATE RING)
110
N910105010036
SCREW MOUNTING PARTS M 10X60
