Mercedes A0229972248 - Кольцо уплотнительное щупа АКПП

C 220 CDI 202.193

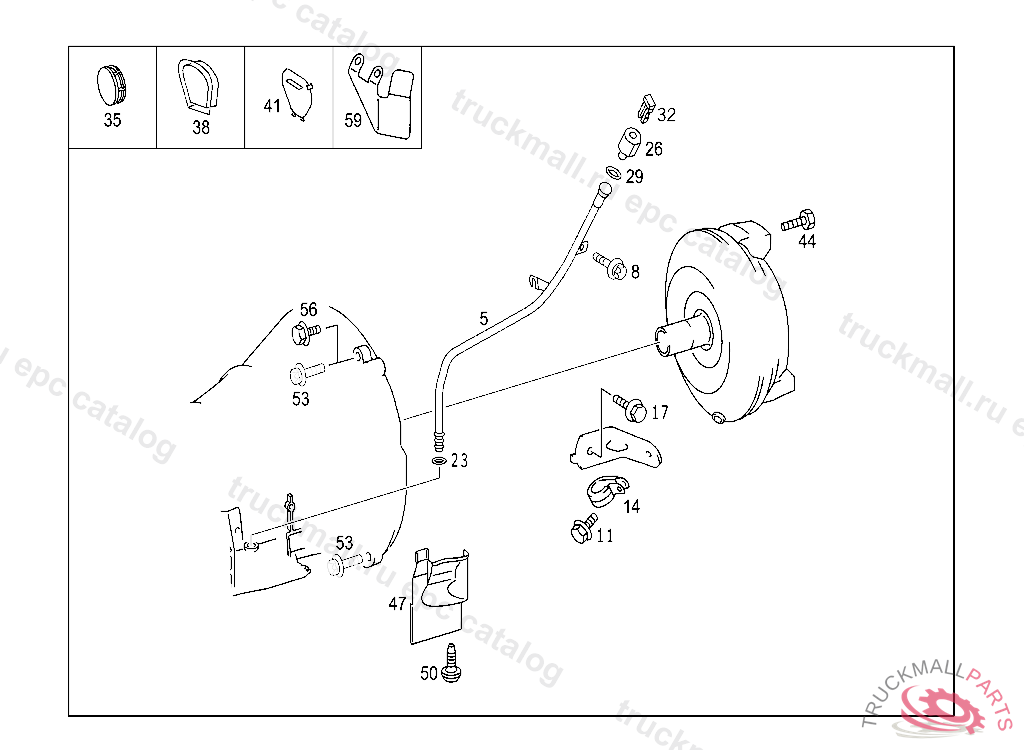

27 AUTOMATIC TRANSMISSION - 230 DETACHABLE TRANSMISSION COMPONENTS,OIL FILLER PIPE,C-CLASS

Поз.
Артикул
Описание
5
A2022700984
OIL FILLER PIPE
11
N910106006004
HEXAGON HEAD BOLT
14
N916016012200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
17
N910106006004
HEXAGON HEAD BOLT
23
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
26
A1402700091
COVER OIL FILLER PIPE
29
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
32
A1409910055
DOWEL PIN OIL FILLER PIPE
38
A1020140033
COVER TO LOCK ASSEMBLY HOLE
44
A1249902201
SCREWM 8X18
53
N910143010000
SCREW PLATE TO FRAME M 10X45
56
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
