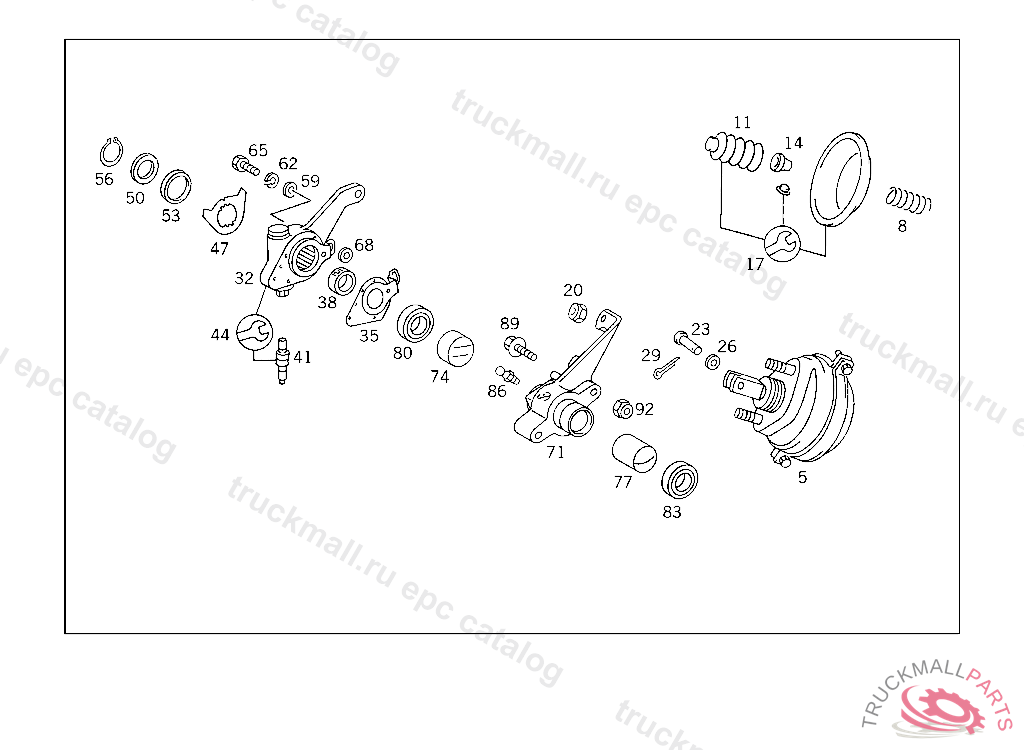

Поз.
Артикул
Описание
5
WHEEL BRAKE CYLINDER (DIAPHRAGM CYLINDER) WABCO
5
BRAKE CYLINDER (DIAPHRAGM CYLINDER) KNORR
8
SPRINGTO 017 420 22 18/23 18
8
FLANGETO 001 420 08 24,"KNORR"
11
CUPTO 007 420 68 18,WABCO
11
CUP , Replaced By: A0004215386
14
SEAL RINGKNORR
17
REPAIR KITWABCO
17
REPAIR KIT DIAPHRAGM CYLINDER KNORR
17
REPAIR KITTO 694 420 73 18/74 18
20
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
23
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
26
WASHER SHIFT LEVER TO PIVOT PIN
29
COTTER PIN STRAP TO SUPPORT
32
ADJUSTERKNORR
32
ADJUSTERWABCO
32
ADJUSTER
47
STOP WASHER ADJUSTER TO BEARING BRACKET
50
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
50
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
50
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
50
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
53
SPACER WASHER ADJUSTER
56
LOCK RING ADJUSTER TO BRAKE CAMSHAFT
71
BRAKE ANCHOR RIGHT
71
BRAKE ANCHOR LEFT
74
BUSHING OUTSIDE
74
BUSHING BRAKE CAMSHAFT BEARING,INSIDE
77
BUSHING INSIDE
77
BUSHING BRAKE CAMSHAFT BEARING,OUTSIDE
80
SEAL RING BRAKE CAMSHAFT BEARING IN CASE
80
SEAL RING INSIDE BEARING BRACKET
80
SEAL RING INSIDE BEARING BRACKET
83
SEAL RING OUTSIDE BEARING BRACKET
83
SEAL RING OUTSIDE BEARING BRACKET
83
SEAL RING OUTSIDE BEARING BRACKET
83
SEAL RING BRAKE CAMSHAFT BEARING
86
GREASE NIPPLE INTERMEDIATE LEVER
89
SCREW BEARING BRACKET TO BRAKE ANCHOR
92
NUT WITH COLLAR
92
NUT BEARING BRACKET TO BRAKE ANCHOR
92
NUT , Replaced By: A0009905750
