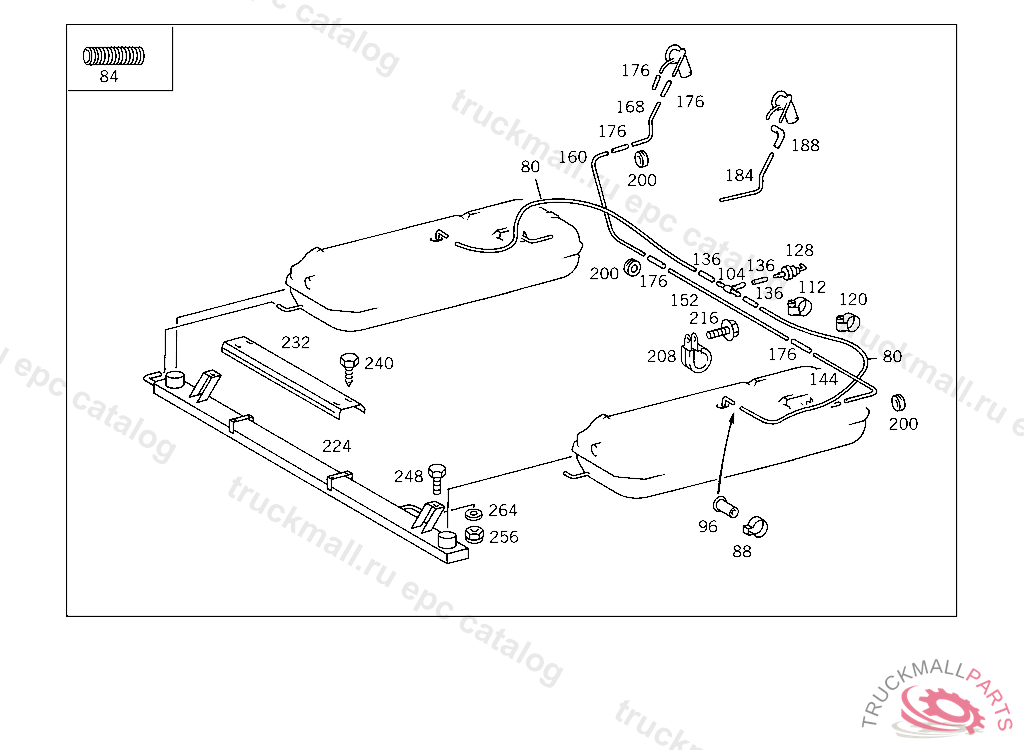

Поз.
Артикул
Описание
80
HOSE. PLASTIC PIPE FROM AIR RESERVOIR TO FITTING, ORDER BY THE METER
80
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
84
HOSE INSULATING HOSE, LENGTH AVAILABLE:1000 MM
88
LOOM TIE VENT VALVE TO FUEL TANK
96
SLEEVE LINE CONNECTION
104
T-FITTING BETWEEN THE LINES
112
CLAMP HOSE TO FITTING AND TO OIL TANK
112
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
120
CLAMP , Replaced By: N000000000672
120
CLAMP HOSE FASTENING 50-70X13 MM
128
VALVE ,K 169122
128
VALVE ,K 169122
136
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
136
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
136
HOSE8X12 MM, ORDER BY THE METER
144
BREATHER PIPE FROM FUEL TANK TO FILLER NECK
144
BREATHER PIPE FROM FUEL TANK TO FILLER NECK
152
BREATHER PIPE FROM FUEL TANK TO FILLER NECK
160
BREATHER PIPE FROM FUEL TANK TO FILLER NECK
168
BREATHER PIPE FROM FUEL TANK TO FILLER NECK
168
BREATHER PIPE FROM FUEL TANK TO FILLER NECK
168
BREATHER PIPE FROM FUEL TANK TO FILLER NECK
176
HOSE FROM FILLER PIPE TO FUEL TANK 100 MM, UP TO CHASSIS 282507 AND FROM CHASSIS 500001-606219
176
BREATHER PIPE , Replaced By: A6014710815
176
BREATHER PIPE , Replaced By: A2024766726
184
BREATHER PIPE FROM FUEL TANK TO FILLER NECK
184
BREATHER PIPE FROM FUEL TANK TO FILLER NECK
184
BREATHER PIPE FROM FUEL TANK TO FILLER NECK
188
BREATHER PIPE , Replaced By: A2024762026
188
HOSE FROM FUEL TANK TO FILLER NECK
200
GROMMET AT SHOCK ABSORBER BRACKET AND AT FENDER BRACKET
200
GROMMET BATTERY CASE
200
GROMMET
208
CLAMP ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
216
SHEET METAL SCREW
224
LINE FUEL LINES TO FUEL TANK
232
PROTECTIVE PLATE PLASTIC PIPING
240
SHEET METAL SCREW BRACKET TO CAB FLOOR
248
SCREW , Replaced By: N304017008021
248
SCREW PIPE CLAMP
256
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
256
NUT , Replaced By: N913004008001
264
WASHER , Replaced By: N000125008443
264
WASHER EXHAUST MUFFLER TO STRAP
999
FUEL TANK RIGHT 70 L
999
FILLER CAP
999
FUEL TANK
999
FUEL TANK
