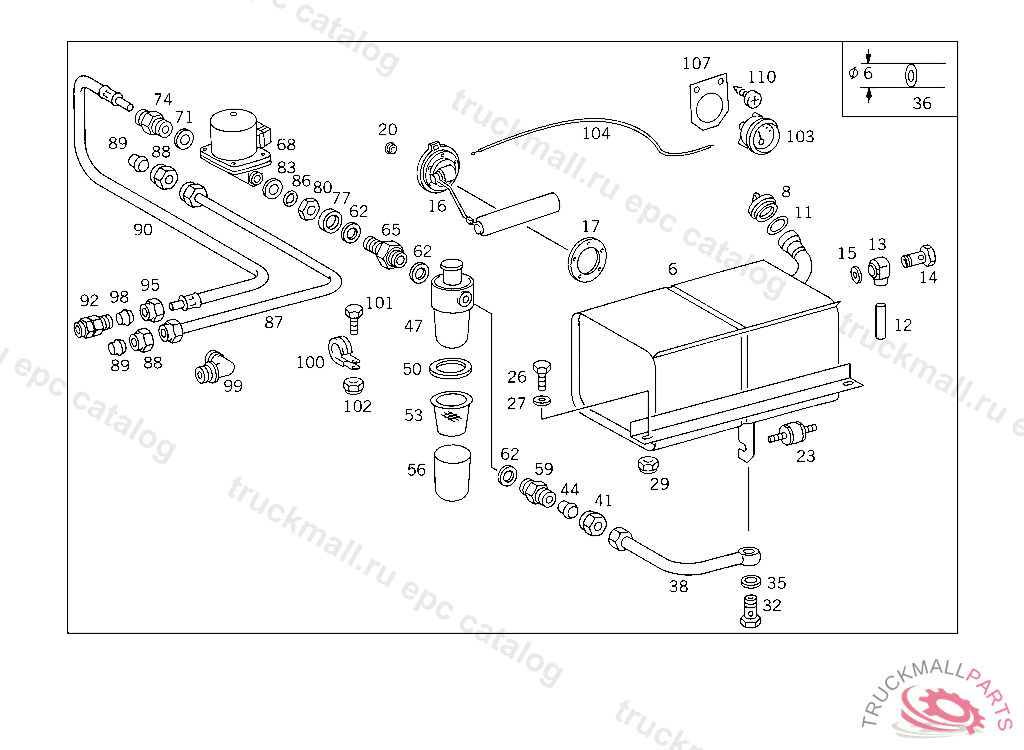

Поз.
Артикул
Описание
6
OIL TANK ENGINE OIL AUTOMATIC REPLENISHMENT 16 L,076194 ALSO INSTALLED IN:075800, 075853, 075889
8
CAP OIL REFILLING
11
GASKET
12
PLASTIC PIPE. HOSE FLUID LEVEL INDICATOR 170 MM, ORDER BY THE METER
13
BANJO UNION HOSE WIDTH, / I.D., 8/12 MM
14
SCREW DE-AERATION LINE TO TRANSMISSION COOLING WATER LINE
14
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
15
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
16
SENDER UNIT
17
GASKET
20
SEAL RING
23
RUBBER BUFFER SUPPORT TO BRACKET
26
SCREW , Replaced By: N304017008021
27
WASHER EXHAUST MUFFLER TO STRAP
29
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
32
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
32
SCREW DE-AERATION LINE TO TRANSMISSION COOLING WATER LINE
35
SEAL RING LINE CONNECTION
36
PLASTIC PIPE RISING PIPE 4X6 MM
38
TUBE FROM OIL TANK TO FILTER, LENGTH AVAILABLE: 3000 MM TO BE ADAPTED DURING ASSEMBLY
38
OIL LINE , Replaced By: A3574800115
38
OIL LINE FROM OIL TANK TO FILTER,080283
38
LINE12 MM, ORDER BY THE METER4 691315
41
NUT. UNION NUT RETURN
44
GLAND , Replaced By: A0019901967
44
GLAND , Replaced By: N003861012007
44
SEAL CONE LINE CONNECTION
47
FILTER OIL
50
SEAL RING
53
FILTER ELEMENT
56
FILTER BOWL
59
FILLER NECK OIL LINE TO FILTER,080283
62
SEAL RING OIL LINE TO FILTER
65
FILLER NECK OIL LINE TO FILTER
68
VALVE SOLENOID
71
SEAL RINGTO 000 553 03 05,000 553 18 05,
74
FITTING ,4 412020
77
SEAL RING VALVE
80
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
83
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
86
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
87
TUBE FROM OIL TANK TO FILTER, LENGTH AVAILABLE: 3000 MM TO BE ADAPTED DURING ASSEMBLY
87
OIL LINE , Replaced By: A0004291001
87
OIL LINE , Replaced By: A0004291001
87
LINE12 MM, ORDER BY THE METER4 691315
88
NUT. UNION NUT RETURN
89
GLAND , Replaced By: A0019901967
89
GLAND , Replaced By: N003861012007
89
SEAL CONE LINE CONNECTION
90
HOSE FROM SOLENOID VALVE TO ENGINE OIL FILLER NECK
92
FITTING (PARTS KIT),LINE RUPTURE
95
UNION NUT LINE CONNECTION
95
UNION NUT LINE CONNECTION, Replaced By: N000000006239
98
SEAL CONE LINE CONNECTION
98
GLAND , Replaced By: A0019901967
99
ELBOW FITTING DELIVERY LINE TO PUMP
100
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
100
CLAMP , Replaced By: N000000001045
100
CLAMP , Replaced By: N916016010211
100
CLAMP CABLE HARNESS MOUNTING
101
SCREW CAB FLOOR COVERING M 6X25
102
NUT PUMP TO BRACKET
103
INDICATOR OIL SUPPLY
104
PULL
107
BRACKET OIL LEVEL INDICATOR
110
SHEET METAL SCREW BRACKET TO FLOOR PLATE
110
SHEET METAL SCREW BRACKET TO FLOOR PLATE, Replaced By: N000000000460
