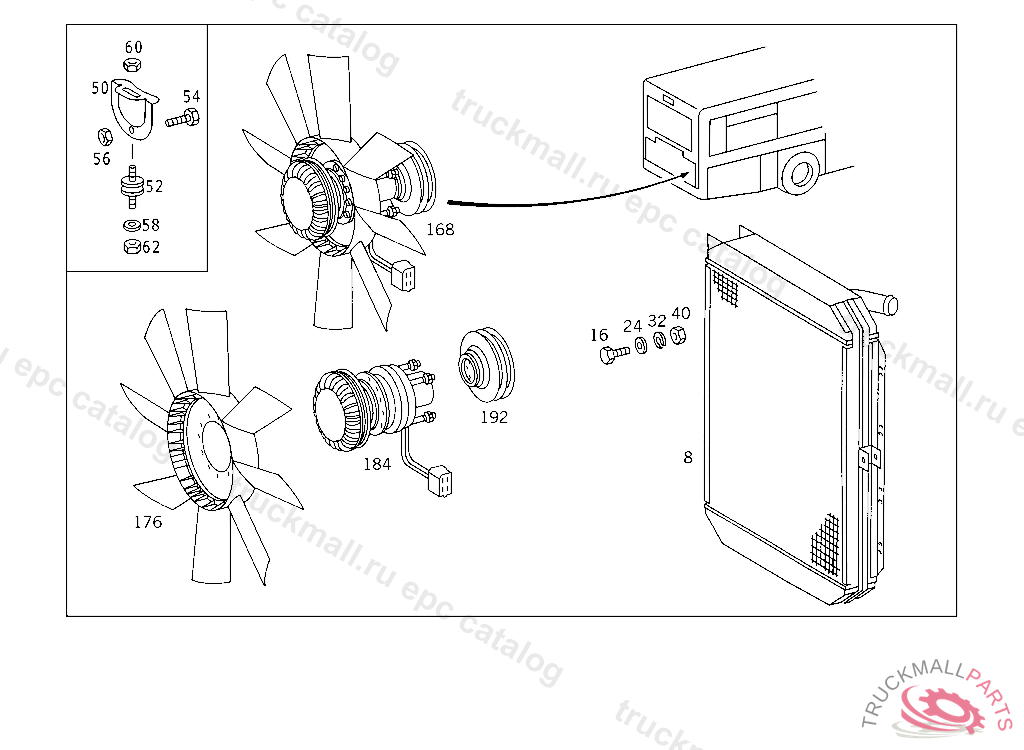

Поз.
Артикул
Описание
8
RADIATOR WATER BEHR
8
RADIATOR WATER
8
RADIATOR WATER AKG
8
RADIATOR WATER
8
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 051047, Replaced By: A3075011401
8
RADIATOR , Replaced By: A3575012501
8
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 051047, Replaced By: A3575011301
8
RADIATOR , Replaced By: A3575012701
8
RADIATOR , Replaced By: A3575012501
8
RADIATOR , Replaced By: A3575012701
8
RADIATOR WATER AKG
8
RADIATOR WATER BEHR
16
SCREW PIPE CLAMP
16
SCREW , Replaced By: N304017008016
16
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
24
WASHER BRACKET TO CROSS MEMBER
32
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
40
NUT , Replaced By: N304032008006
50
BRACKET PIPE ELBOW TO SUBSTRUCTURE
52
RUBBER MOUNTING AIR CLEANER TO SUBSTRUCTURE
54
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
56
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
58
WASHER COVERING TO CAB
60
NUT HORN TO BRACKET M8
62
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
168
FAN DRIVE
176
FAN
184
FAN DRIVE
192
PULLEY
999
SUPPORT FAN SUPPORT, NOT USED TO BE ADAPTED DURING ASSEMBLY
