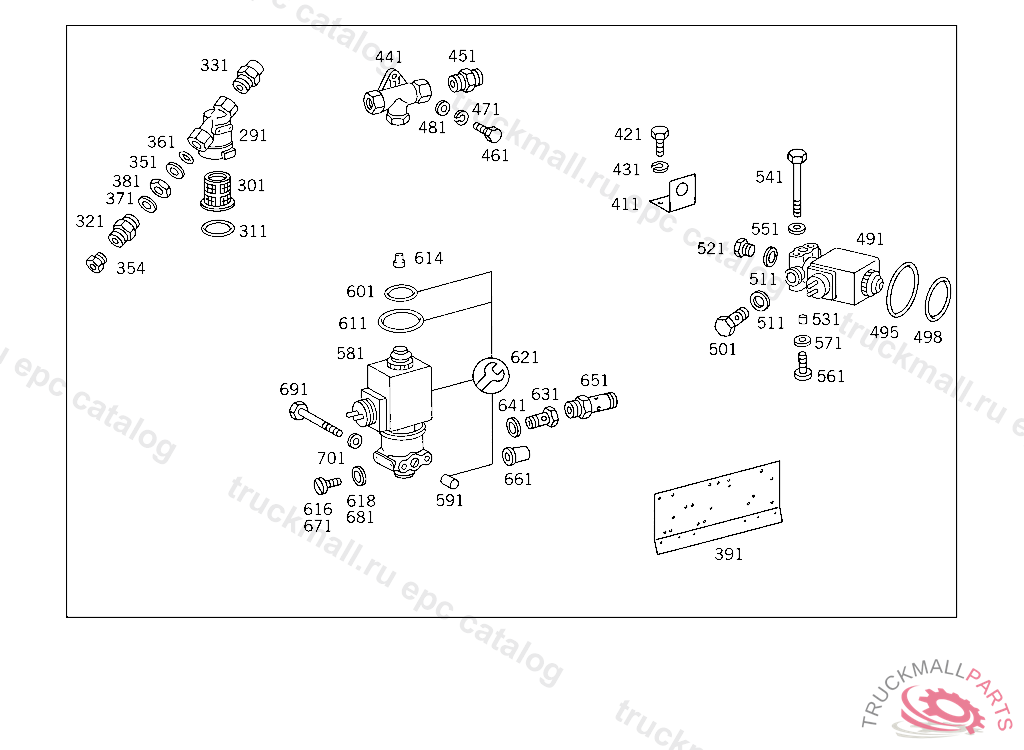

Поз.
Артикул
Описание
291
AIR CLEANER COMPRESSED AIR LINE
301
FILTER ELEMENT
311
SEAL RING39.2X3.0 MM
321
FITTING LINE CONNECTION
321
FITTING AIR RESERVOIR
331
FITTING CHECK VALVE
331
FITTING LINE CONNECTION
351
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
354
SCREW. UNION SCREW LINE CONNECTION
361
O-RING CHECK VALVE TO AIR RESERVOIR
371
WASHER
381
NUT CHECK VALVE TO AIR RESERVOIR
391
BRACKET SECONDARY CONSUMING UNITS
411
BRACKET SECONDARY CONSUMING UNITS
421
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
421
SCREW , Replaced By: N304017008016
431
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
441
VALVE. SHUTTLE VALVE (SHUTTLE VALVE) VOSS
441
VALVE , Replaced By: A0044291544
451
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
461
SCREW BRACKET TO CROSS CONNECTION STRUT
461
SCREW , Replaced By: N304017008034
471
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
481
WASHER , Replaced By: N000125008443
481
WASHER EXHAUST MUFFLER TO STRAP
491
VALVE (3/2-WAY SOLENOID VALVE) EKS
491
VALVE (SOLENOID VALVE),078418
495
SEAL RINGWABCO
498
SEAL RINGWABCO
501
HOLLOW SCREW HEATING CONNECTION
511
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
521
SCREW PLUGROCKINGER,TYP 59 U150
521
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
531
SEAL RING VALVE TO VALVE
541
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
541
SCREW P.T.O. TO TRANSMISSION
551
WASHER EXHAUST MUFFLER TO STRAP
551
WASHER , Replaced By: N000125008443
561
SCREW TO PLUG THE FREE CONNECTIONS
571
SEAL RINGBOSCH
581
VALVE (3/2-WAY SOLENOID VALVE) EKS
581
VALVE SOLENOID VALVE,5 450429 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
581
VALVE , Replaced By: A0049975736
591
SEAL RING VALVE TO VALVE
601
SEAL RINGWABCO
611
SEAL RING24X2 MM
614
PROTECTIVE CAPWABCO
616
SCREW TO PLUG THE FREE CONNECTIONS
618
SEAL RINGBOSCH
621
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
631
HOLLOW SCREW HEATING CONNECTION
631
HOLLOW SCREW LINE CONNECTION
641
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
651
HOLLOW SCREW FITTING DISTRIBUTOR,CONNECTION: "5"
661
NOZZLE SOLENOID VALVE,CONNECTION: "1"
671
SCREW TO PLUG THE FREE CONNECTIONS
681
SEAL RING RELAY VALVE,CONNECTION "2"
691
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
691
SCREW P.T.O. TO TRANSMISSION
701
WASHER EXHAUST MUFFLER TO STRAP
701
WASHER , Replaced By: N000125008443
