Поз.
Артикул
Описание

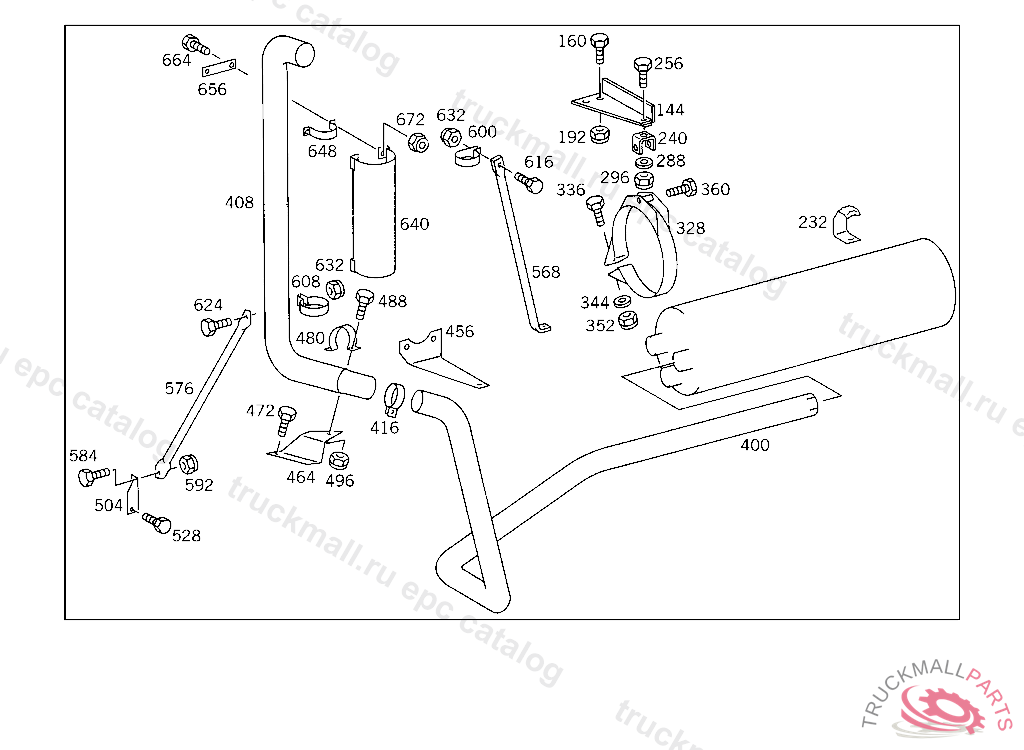

144
BRACKET FRONT AND REAR EXHAUST MUFFLERS
160
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
160
SCREW , Replaced By: N304017008027
192
NUT STRAP TO BRACKET
192
NUT , Replaced By: N910113010000
192
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
192
NUT , Replaced By: N913004008001
232
BRACKET PARTICLE FILTER
240
BRACKET HEAT SHIELD
256
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
256
SCREW , Replaced By: N304017008027
256
SCREW PIPE CLAMP
256
SCREW , Replaced By: N304017008021
288
WASHER EXHAUST MUFFLER TO STRAP
288
WASHER , Replaced By: N000125008443
296
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
296
NUT , Replaced By: N913004008001
328
STRAP EXHAUST MUFFLER TO BRACKET
336
SCREW STRAP TO BRACKET
344
WASHER EXHAUST MUFFLER TO STRAP
344
WASHER , Replaced By: N000125008443
352
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
352
NUT , Replaced By: N913004008001
360
SCREW
360
SCREW , Replaced By: N304017010051
400
CONNECTOR FROM EXHAUST MUFFLER TO CAB REAR PANEL
408
EXHAUST PIPE BEHIND CAB,UPWARD
416
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
416
CLAMP , Replaced By: N071555094502
456
BRACKET VERTICAL TAIL PIPE
464
BRACKET UPPER EXHAUST PIPE TO FENDER
472
SCREW SUPPORT TO FENDER
472
SCREW , Replaced By: N304017008018
480
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE,TOP
480
CLAMP , Replaced By: A3464920040
480
CLAMP , Replaced By: A6204901341
488
SCREW BRACKET TO CROSS CONNECTION STRUT
488
SCREW , Replaced By: N304017008034
496
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
496
NUT , Replaced By: N913004008001
504
BRACKET LEFT FENDER
528
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
568
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
576
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
584
SCREW BRACKET TO SIDE MEMBER
584
SCREW , Replaced By: N304017010002
592
NUT STRAP TO BRACKET
592
NUT , Replaced By: N910113010000
600
CLAMP STRUT TO EXHAUST PIPE
608
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
608
CLAMP , Replaced By: N071555100501
616
SCREW END PIECE TO EXHAUST PIPE M 10X25
624
SCREW REAR EXHAUST PIPE TO MUFFLER
632
NUT STRAP TO BRACKET
632
NUT , Replaced By: N910113010000
640
PROTECTIVE PLATE EXHAUST PIPE
648
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE,TOP
648
CLAMP , Replaced By: A3464920040
648
CLAMP , Replaced By: A6204901341
656
BASE PLATE HEAT SHIELD TO TAILPIPE
656
BRACKET , Replaced By: A3184924841
664
SCREW BRACKET TO CROSS CONNECTION STRUT
664
SCREW , Replaced By: N304017008034
672
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
672
NUT , Replaced By: N913004008001
