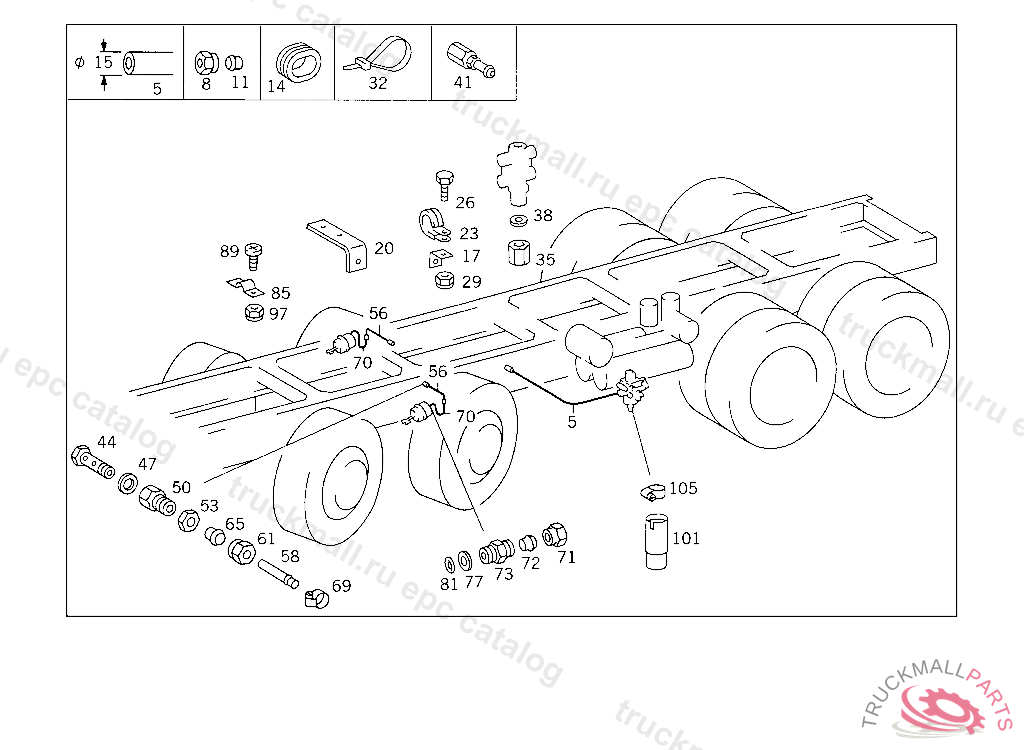

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
GROMMET LINE THRU FRAME
17
BRACKET BRACKET TO CROSS MEMBER
20
BRACKET OIL LINE MOUNTING
23
CLAMP LINE MOUNTING
26
SCREW LICENSE PLATE TO BRACKET
26
SCREW , Replaced By: N304017006020
29
NUT PUMP TO BRACKET
29
NUT , Replaced By: N913004006001
32
LOOM TIE LINE MOUNTING
35
ADAPTER FITTING COMPRESSED AIR LINE TO CHECK VALVE
38
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
38
SEAL RING , Replaced By: N007603012121
41
TEST CONNECTION
41
TEST CONNECTION
41
TEST CONNECTION
41
TEST CONNECTION
44
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
47
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
50
ADAPTER FITTING PASSAGE OF LINE THRU SIDE MEMBER,5 395033
53
NUT BRACKET TO SIDE MEMBER
56
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
58
FITTING DIAPHRAGM CYLINDER,CONNECTION:
61
UNION NUT LINE CONNECTION
61
UNION NUT LINE CONNECTION, Replaced By: N000000006239
65
SEAL CONE LINE CONNECTION
65
GLAND , Replaced By: A0019901967
69
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
70
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
71
UNION NUT LINE CONNECTION
71
UNION NUT LINE CONNECTION, Replaced By: N000000006239
72
SEAL CONE LINE CONNECTION
72
GLAND , Replaced By: A0019901967
73
FITTING DELIVERY LINE TO PUMP
77
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
81
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
85
CLAMP 3/2-WAY SOLENOID VALVE
89
SCREW CLAMP TO BRACKET
89
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
97
NUT PUMP TO BRACKET
97
NUT , Replaced By: N913004006001
101
MUFFLER PRESSURE REGULATOR BREATHING
105
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
BRACKET , Replaced By: A3464296040
999
LINE , Replaced By: A6254293501
999
STRAP , Replaced By: A6214900242
999
BRACKET , Replaced By: A6205243040
999
BRACKET , Replaced By: A3974290140
999
SEAL RING , Replaced By: A0179979048
999
SEAL RING22.3X2.4 MM,GRAU
999
VALVE (RELAY VALVE) KNORR
999
VALVE (RELAY VALVE) BOSCH
999
REPAIR KITKNORR
999
SEAL RING86X2 MM,GRAU
999
SEAL RING28X2 MM,GRAU
999
REPAIR KIT COVERING BOSCH
999
VALVE (RELAY VALVE) GRAU
999
VALVE (RELAY VALVE) WABCO
999
REPAIR KITWABCO
999
RESERVOIR , Replaced By: A0014327501
999
VALVE SEATGRAU
999
GASKET34X2X6 MM,GRAU
999
EYEWABCO, NOT USED
999
BREATHER PIPETO 001 431 83 05,WABCO
999
REPAIR KIT VALVE BOSCH
999
REPAIR KIT BRAKE POWER REGULATOR BOSCH
999
REPAIR KIT BLEEDER VALVE TO 001 431 67 05,BOSCH
999
VALVEBOSCH
