Mercedes A3604280243 - Кронштейн

2222 L,2225 L,2228 L/LL,2432 L,2433 L 619.417

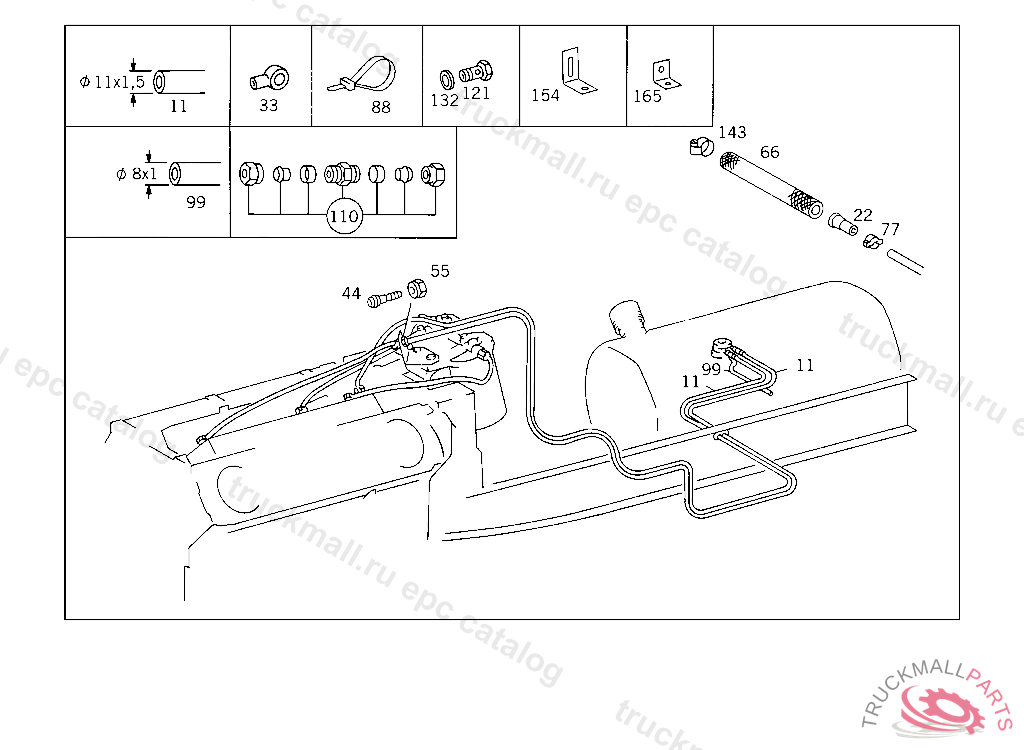

24 ENGINE SUSPENSION - 001 CHASSIS PARTS W/MB AUTO.TRANSMISSION W4-B-110 IL.2

Поз.
Артикул
Описание
11
A0089975482
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
22
N915062008000
SLEEVE FEED
22
A3879900078
CONNECTOR RIGHT,177-LITER
33
N915052008019
BANJO UNION FROM PRESSURE REGULATOR TO ANTI-FREEZE DEVICE,6 900001-6 900006
44
A0019974972
FITTING RETURN
55
N915017010200
NUT. UNION NUT RETURN
66
A3054760126
HOSE LEAK LINE
77
A0029978790
CLIP LEAK LINE
88
A0019978390
LOOM TIE LINE MOUNTING 280 MM
99
A0089979082
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
110
A0029905971
FITTING (PARTS KIT),LINE RUPTURE
110
A0039978972
FITTING , Replaced By: A0029905971
121
N915036010108
HOLLOW SCREW FUEL LINE TO FEED PUMP
121
N915036010204
HOLLOW SCREW , Replaced By: N915036010108
132
N007603014405
SEAL RING FUEL LINE TO FEED PUMP
143
N000000000665
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
143
N916026010000
CLAMP , Replaced By: N000000000665
154
A3812950440
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
165
A3604280243
ANGLE LINE MOUNTING
